Here you will find all available parts and drawings of the 'Milwaukee 4000452322 (C12PC-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

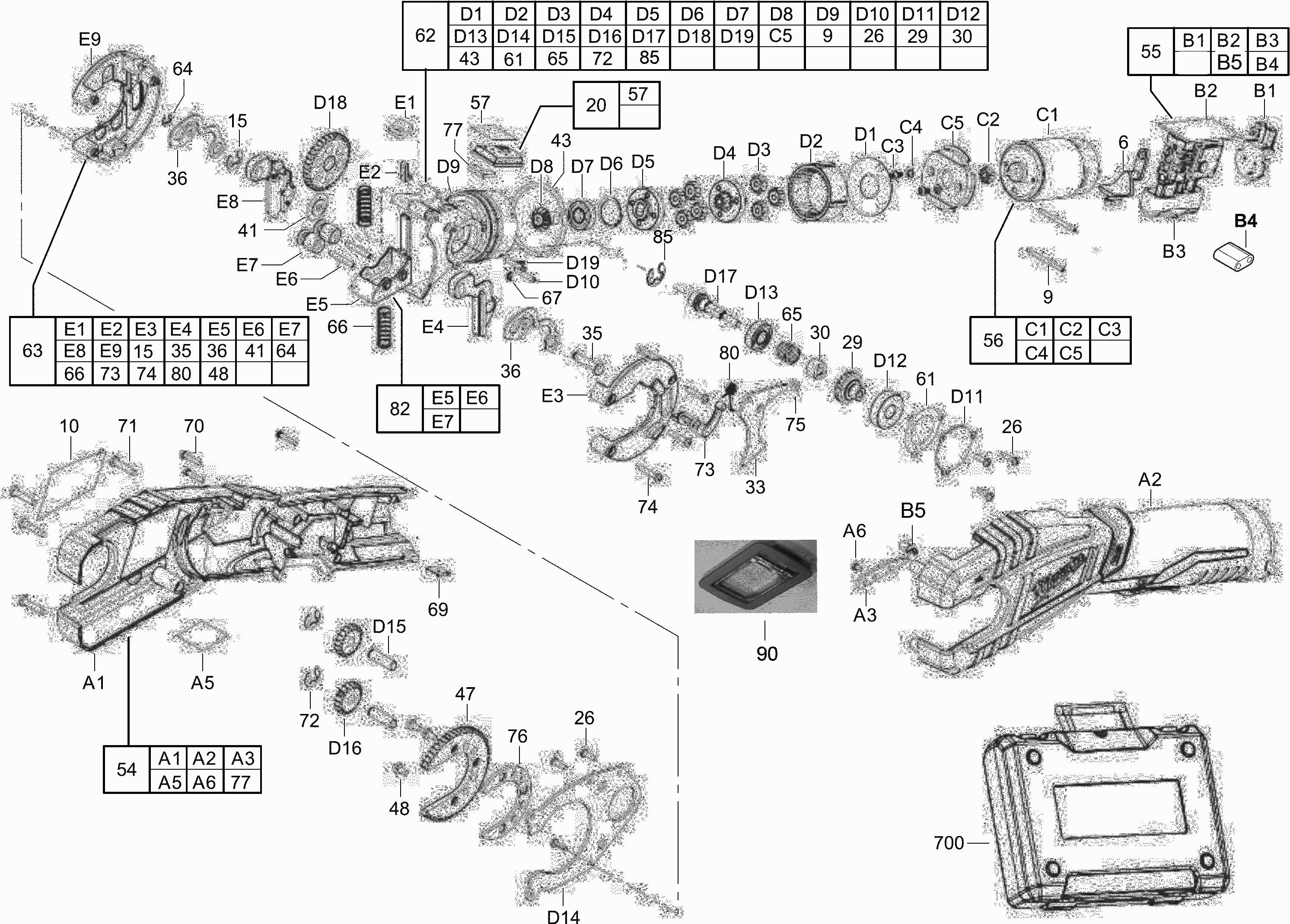

Technical drawing of model Milwaukee 4000452322 (C12PC-0)
Spare parts list of model Milwaukee 4000452322 (C12PC-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0006 | 201104001 | |||
| No information available, not orderable | ||||
| 0009 | 201077007 | |||
| No longer available, no replacement | ||||
| 0010 | 4931452557 | |||
| No longer available, no replacement | ||||
| 0015 | 201121001 | |||
| ELECTRIC ELEMENT | ||||
| 0020 | 201033001 | 15.84 | 19.17 | |
| No longer available, no replacement | ||||
| 0026 | 200288060 | |||
| No longer available, no replacement | ||||
| 0029 | 200969002 | |||
| CRANK ASSEMBLY | ||||
| 0030 | 201126001 | 6.82 | 8.25 | |
| DRILL OFF BUTTON | ||||
| 0033 | 201127001 | 4.54 | 5.49 | |
| SHAFT | ||||
| 0035 | 201128001 | 5.40 | 6.53 | |
| SPRING ELEMENT | ||||
| 0036 | 201129001 | 12.60 | 15.25 | |
| CUTTING WHEEL | ||||
| 0041 | 201130001 | 12.60 | 15.25 | |
| No information available, not orderable | ||||
| 0043 | 201255004 | |||
| GEAR HEAD | ||||
| 0047 | 4931452657 | 22.18 | 26.84 | |
| SCREW M3,5x8 (3 needed) | ||||
| 0048 | 661292001 | 3.00 | 3.63 | |
| HANDLE COMPL. | ||||
| 0054 | 201037001 | 63.36 | 76.67 | |
| SWITCH KIT | ||||
| 0055 | 4931433284 | 53.86 | 65.17 | |
| MOTOR ASSEMBLY | ||||
| 0056 | 201031001 | 19.01 | 23.00 | |
| STICKER | ||||
| 0057 | 201049002 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0061 | 201170002 | |||
| GEARWHEEL SET | ||||
| 0062 | 4931452658 | 110.88 | 134.16 | |
| CUTTING HEAD | ||||
| 0063 | 4931452659 | 57.02 | 68.99 | |
| YOKE | ||||
| 0064 | 201121002 | 5.40 | 6.53 | |
| SPRING | ||||
| 0065 | 201137001 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0066 | 201138001 | |||
| No longer available, no replacement | ||||
| 0067 | 201121003 | |||
| CONNECTOR | ||||
| 0069 | 4931436292 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 0070 | 200288057 | |||
| No longer available, no replacement | ||||
| 0071 | 201096005 | |||
| Yoke | ||||
| 0072 | 201121004 | 5.40 | 6.53 | |
| CAM SHAFT | ||||
| 0073 | 201079002 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 0074 | 200288058 | |||
| No longer available, no replacement | ||||
| 0075 | 201255003 | |||
| SPACER | ||||
| 0076 | 4931452660 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 0077 | 201148001 | |||
| SPRING | ||||
| 0080 | 200171011 | 6.31 | 7.64 | |
| ROLLER BRACKET | ||||
| 0082 | 201036001 | 11.00 | 13.31 | |
| No longer available, no replacement | ||||
| 0085 | 4931452661 | |||
| LENS | ||||
| 0090 | 4931466913 | 7.20 | 8.71 | |
| CARRYING CASE | ||||
| 0700 | 201280002 | 52.27 | 63.25 | |
