Here you will find all available parts and drawings of the 'Milwaukee 4000467915 (AS300ELCP)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

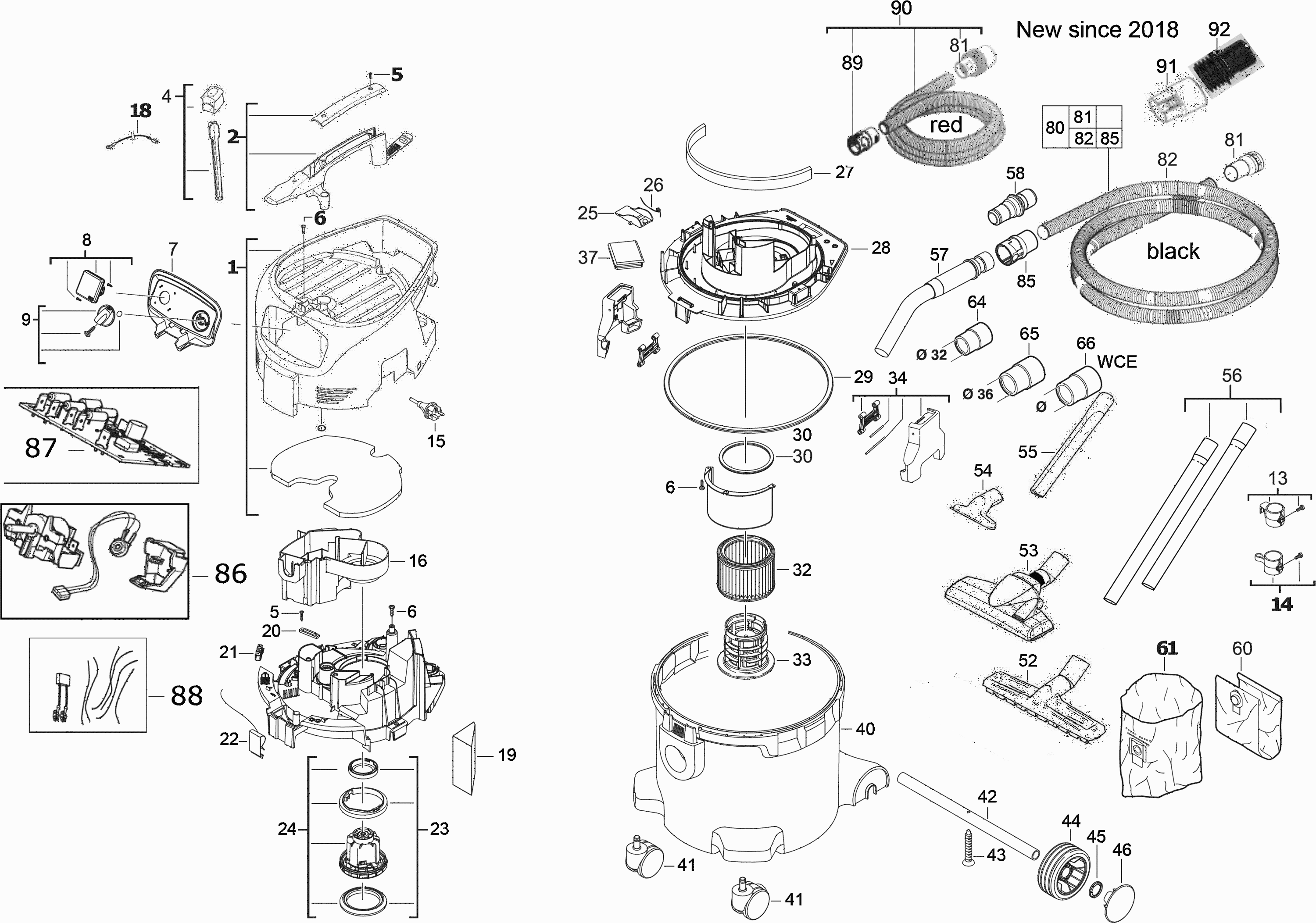

Technical drawing of model Milwaukee 4000467915 (AS300ELCP)
Spare parts list of model Milwaukee 4000467915 (AS300ELCP)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| COVER | ||||
| 0001 | 4931416116 | 137.81 | 166.75 | |
| HANDLE | ||||
| 0002 | 4931416117 | 101.38 | 122.67 | |
| No longer available, no replacement | ||||
| 0004 | 4931416118 | |||
| No longer available, no replacement | ||||
| 0005 | 4931416295 | |||
| No longer available, no replacement | ||||
| 0006 | 4931416296 | |||
| No longer available, no replacement | ||||
| 0007 | 4931416344 | |||
| WALL SOCKET | ||||
| 0008 | 4931416260 | 36.43 | 44.08 | |
| KNOB | ||||
| 0009 | 4931416119 | 22.18 | 26.84 | |
| No longer available, no replacement | ||||
| 0013 | 4931416306 | |||
| NOSEPIECE | ||||
| 0014 | 4931416129 | 13.51 | 16.35 | |
| CONNECTION CABLE | ||||
| 0015 | 4931416308 | 87.12 | 105.42 | |
| No longer available, no replacement | ||||
| 0016 | 4931416312 | |||
| RELAY CABLE | ||||
| 0018 | 4931416137 | 15.84 | 19.17 | |
| DAMPING ELEMENT | ||||
| 0019 | 4931416139 | 19.01 | 23.00 | |
| No longer available, no replacement | ||||
| 0020 | 4931416316 | |||
| No information available, not orderable | ||||
| 0021 | 4931416317 | |||
| No longer available, no replacement | ||||
| 0022 | 4931416318 | |||
| PACKING SET | ||||
| 0023 | 4931416319 | 30.10 | 36.42 | |
| MOTOR ASSEMBLY | ||||
| 0024 | 4931416320 | 210.67 | 254.91 | |
| No information available, not orderable | ||||
| 0025 | 4931416324 | |||
| SPRING ELEMENT | ||||
| 0026 | 4931416271 | 5.40 | 6.53 | |
| NOISE FILTER | ||||
| 0027 | 4931416326 | 12.60 | 15.25 | |
| No longer available, no replacement | ||||
| 0028 | 4931416327 | |||
| GASKET | ||||
| 0029 | 4931416328 | 19.01 | 23.00 | |
| GASKET | ||||
| 0030 | 4931416329 | 10.80 | 13.07 | |
| FILTER CARTRIDGE FILTER CARTDGE P1AM | ||||
| 0032 | 4932352304 | 90.63 | 109.66 | |
| FILTER HOLDER | ||||
| 0033 | 4931416331 | 22.18 | 26.84 | |
| HOLDING BRACKET (2 needed) | ||||
| 0034 | 4931416332 | 25.34 | 30.66 | |
| SWITCH BOARD | ||||
| 0037 | 4931416322 | 10.80 | 13.07 | |
| TANK | ||||
| 0040 | 4931416158 | 131.47 | 159.08 | |
| ROLL (2 needed) | ||||
| 0041 | 4931416335 | 12.60 | 15.25 | |
| AXLE | ||||
| 0042 | 4931416336 | 22.18 | 26.84 | |
| No longer available, no replacement | ||||
| 0043 | 4931416337 | |||
| ROLL (2 needed) | ||||
| 0044 | 4931416338 | 16.20 | 19.60 | |
| SLEEVE (2 needed) | ||||
| 0045 | 4931416339 | 5.40 | 6.53 | |
| COVER (2 needed) | ||||
| 0046 | 4931416159 | 17.42 | 21.08 | |
| FLOOR TOOL | ||||
| 0052 | 4931448691 | 45.94 | 55.59 | |
| FLOOR TOOL | ||||
| 0053 | 4931416282 | 50.69 | 61.33 | |
| NOZZLE | ||||
| 0054 | 4931416283 | 14.40 | 17.42 | |
| NOZZLE | ||||
| 0055 | 4931416284 | 14.40 | 17.42 | |
| SUCTION PIPE | ||||
| 0056 | 4931416285 | 34.85 | 42.17 | |
| ADAPTER | ||||
| 0057 | 4931416166 | 28.51 | 34.50 | |
| MUFF | ||||
| 0058 | 4931416173 | 30.65 | 37.09 | |
| FILTER (CLOTH) 30L FILTR BAGX5 P5AM | ||||
| 0060 | 4932352307 | 72.44 | 87.65 | |
| FILTER (CLOTH) 30L PVC BAG X 5 P5AM | ||||
| 0061 | 4932352309 | 68.37 | 82.73 | |
| MUFF | ||||
| 0064 | 4931416058 | 16.20 | 19.60 | |
| MUFF | ||||
| 0065 | 4931416059 | 17.42 | 21.08 | |
| NOSEPIECE | ||||
| 0066 | 4931419658 | 17.42 | 21.08 | |
| SUCTION HOSE HOSE4M ANTI STATP1AM | ||||
| 0080 | 4932352311 | 206.79 | 250.22 | |
| MUFF | ||||
| 0081 | 4931416458 | 20.59 | 24.91 | |
| SUCTION HOSE | ||||
| 0082 | 4931416459 | 123.55 | 149.50 | |
| MUFF | ||||
| 0085 | 4931416460 | 22.18 | 26.84 | |
| ROTARY SWITCH | ||||
| 0086 | 4931465630 | 118.80 | 143.75 | |
| PRINT.CURIUT SWITCH | ||||
| 0087 | 4931465631 | 123.55 | 149.50 | |
| CAPACITOR | ||||
| 0088 | 4931465632 | 87.12 | 105.42 | |
| ADAPTER | ||||
| 0089 | 4931461862 | 77.62 | 93.92 | |
| SUCTION HOSE | ||||
| 0090 | 4931461861 | 186.91 | 226.16 | |
| CONNECTOR | ||||
| 0091 | 4931447294 | 10.80 | 13.07 | |
| ADAPTOR / CONNECTOR | ||||
| 0092 | 4931463999 | 5.40 | 6.53 | |
