Here you will find all available parts and drawings of the 'Milwaukee 4000469290 (AS-30LAC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

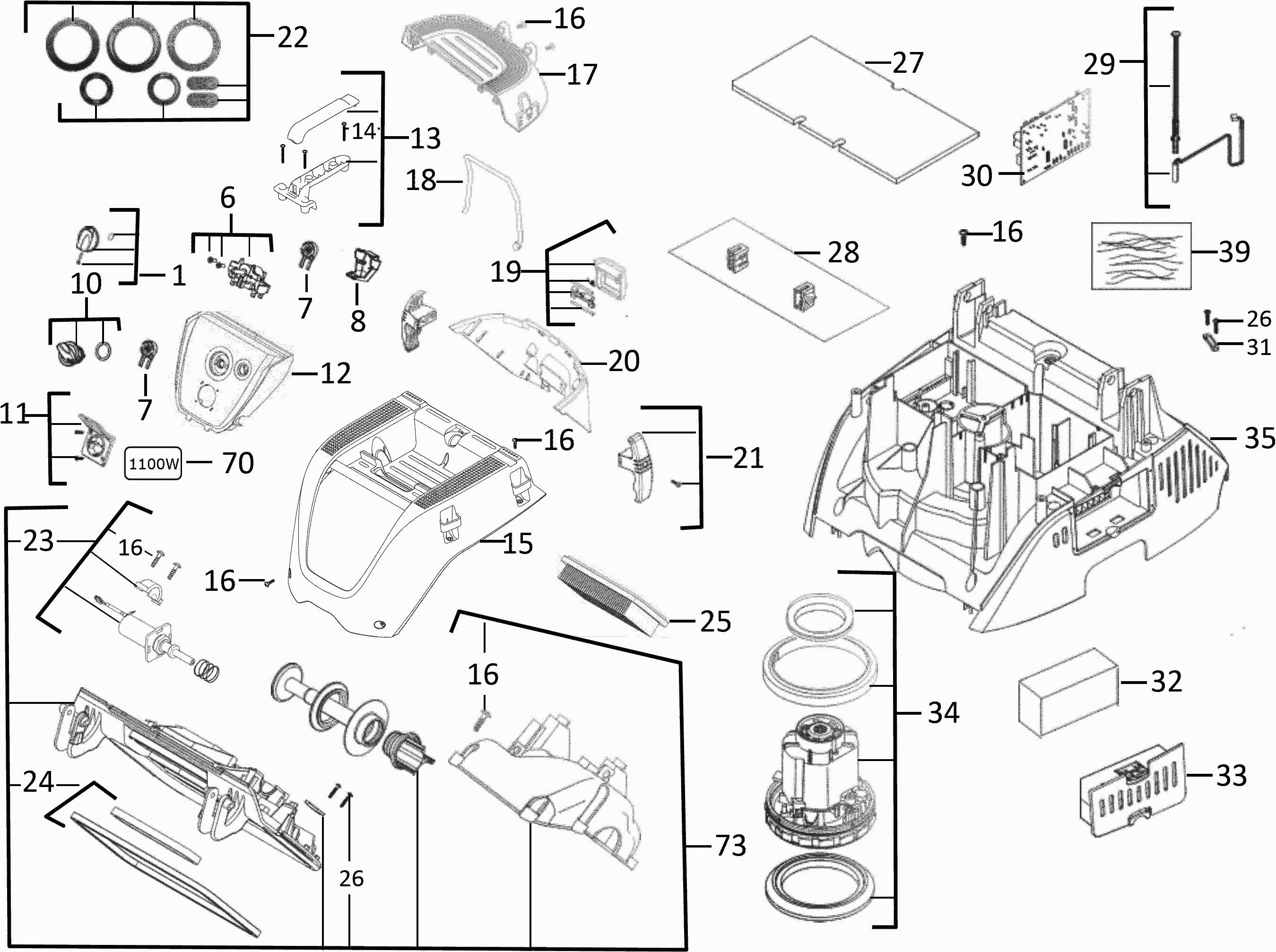

Technical drawing of model Milwaukee 4000469290 (AS-30LAC)
Spare parts list of model Milwaukee 4000469290 (AS-30LAC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| KNOB | ||||
| 0001 | 4931416119 | 22.18 | 26.84 | |
| SWITCH KIT | ||||
| 0006 | 4931461823 | 58.61 | 70.92 | |
| POTENTIOMETER (3 needed) | ||||
| 0007 | 4931461824 | 30.10 | 36.42 | |
| COVER | ||||
| 0008 | 4931461825 | 16.20 | 19.60 | |
| KNOB (2 needed) | ||||
| 0010 | 4931461826 | 17.42 | 21.08 | |
| WALL SOCKET | ||||
| 0011 | 4931416261 | 66.53 | 80.50 | |
| CONTROL PANEL KIT | ||||
| 0012 | 4931461827 | 47.52 | 57.50 | |
| HANDLE SET | ||||
| 0013 | 4931461828 | 28.51 | 34.50 | |
| SCREW (3 needed) | ||||
| 0014 | 4931461829 | 57.02 | 68.99 | |
| HOUSING COVER | ||||
| 0015 | 4931461830 | 110.88 | 134.16 | |
| SCREW (17 needed) | ||||
| 0016 | 4931448663 | 3.00 | 3.63 | |
| HOUSING COVER | ||||
| 0017 | 4931461831 | 44.35 | 53.66 | |
| WAISTBELT | ||||
| 0018 | 4931461832 | 31.68 | 38.33 | |
| CLAMP | ||||
| 0019 | 4931461833 | 36.43 | 44.08 | |
| HOUSING COVER | ||||
| 0020 | 4931461834 | 38.02 | 46.00 | |
| HOOK (2 needed) | ||||
| 0021 | 4931461835 | 20.59 | 24.91 | |
| ADHESIVE LABEL | ||||
| 0022 | 4931461836 | 58.61 | 70.92 | |
| COIL | ||||
| 0023 | 4931461837 | 231.26 | 279.82 | |
| GASKET | ||||
| 0024 | 4931461838 | 60.19 | 72.83 | |
| PTFE FLAT FILTER - 1PC | ||||
| 0025 | 4932459687 | 117.25 | 141.87 | |
| SCREW (2 needed) | ||||
| 0026 | 4931448666 | 10.80 | 13.07 | |
| FOAM SLUG | ||||
| 0027 | 4931461839 | 25.34 | 30.66 | |
| HOLDING DEVICE | ||||
| 0028 | 4931461840 | 17.42 | 21.08 | |
| GAUGE | ||||
| 0029 | 4931461841 | 34.85 | 42.17 | |
| ELECTRONIC | ||||
| 0030 | 4931461842 | 253.44 | 306.66 | |
| No longer available, no replacement | ||||
| 0031 | 4931416316 | |||
| DIFFUSER | ||||
| 0032 | 4931461843 | 19.01 | 23.00 | |
| COVER | ||||
| 0033 | 4931461844 | 19.01 | 23.00 | |
| MOTOR ASSEMBLY | ||||
| 0034 | 4931461845 | 234.43 | 283.66 | |
| HOUSING COVER | ||||
| 0035 | 4931461846 | 159.98 | 193.58 | |
| CAPACITOR | ||||
| 0039 | 4931461847 | 115.63 | 139.91 | |
| SHOCK ABSORBER | ||||
| 0040 | 4931461848 | 22.18 | 26.84 | |
| No information available, not orderable | ||||
| 0041 | 4931416317 | |||
| STAPLE (2 needed) | ||||
| 0042 | 4931461849 | 36.43 | 44.08 | |
| POWER CORD | ||||
| 0043 | 4931469346 | 145.73 | 176.33 | |
| BODY | ||||
| 0044 | 4931461850 | 247.10 | 298.99 | |
| CONTACT SPRING | ||||
| 0045 | 4931461851 | 28.51 | 34.50 | |
| MAGNET.DISC FASTEN. | ||||
| 0046 | 4931461852 | 22.18 | 26.84 | |
| COVER | ||||
| 0047 | 4931461853 | 60.19 | 72.83 | |
| GASKET | ||||
| 0048 | 4931461854 | 45.94 | 55.59 | |
| TANK | ||||
| 0049 | 4931461855 | 250.27 | 302.83 | |
| ROLL | ||||
| 0050 | 4931461856 | 117.22 | 141.84 | |
| SCREW | ||||
| 0051 | 4931461857 | 16.20 | 19.60 | |
| AXLE | ||||
| 0052 | 4931416336 | 22.18 | 26.84 | |
| ROLL (2 needed) | ||||
| 0053 | 4931461858 | 52.27 | 63.25 | |
| SLEEVE (2 needed) | ||||
| 0054 | 4931416339 | 5.40 | 6.53 | |
| COVER (2 needed) | ||||
| 0055 | 4931461859 | 17.42 | 21.08 | |
| WAISTBELT | ||||
| 0056 | 4931461860 | 60.19 | 72.83 | |
| DISPOSAL BAGS (30L) - 5PCS | ||||
| 0057 | 4932459690 | 74.36 | 89.98 | |
| AS 30/42 FLEECE FILTER BAGS - 5PCS | ||||
| 0058 | 4932459689 | 81.95 | 99.16 | |
| SUCTION HOSE | ||||
| 0059 | 4931461861 | 186.91 | 226.16 | |
| ADAPTER | ||||
| 0060 | 4931461862 | 77.62 | 93.92 | |
| MUFF | ||||
| 0061 | 4931416458 | 20.59 | 24.91 | |
| ADAPTER | ||||
| 0062 | 4931416166 | 28.51 | 34.50 | |
| MUFF | ||||
| 0063 | 4931416173 | 30.65 | 37.09 | |
| SUCTION TUBE (3 pc) | ||||
| 0064 | 4931461863 | 121.97 | 147.58 | |
| FLOOR TOOL | ||||
| 0065 | 4931448691 | 45.94 | 55.59 | |
| NOZZLE | ||||
| 0066 | 4931416284 | 14.40 | 17.42 | |
| NOZZLE | ||||
| 0067 | 4931416283 | 14.40 | 17.42 | |
| CONNECTOR | ||||
| 0068 | 4931447294 | 10.80 | 13.07 | |
| SERVICE RATING LABEL AS-30LAC (CH) | ||||
| 0069 | 4931469347 | 1.80 | 2.18 | |
| STICKER MAX 1100W | ||||
| 0070 | 4931410489 | 2.16 | 2.61 | |
| ADHESIVE LABEL | ||||
| 0072 | 4931461866 | 15.84 | 19.17 | |
| FRAME CAP | ||||
| 0073 | 4931461867 | 269.28 | 325.83 | |
