Here you will find all available parts and drawings of the 'Milwaukee 4000402598 (AGVM24-230GX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

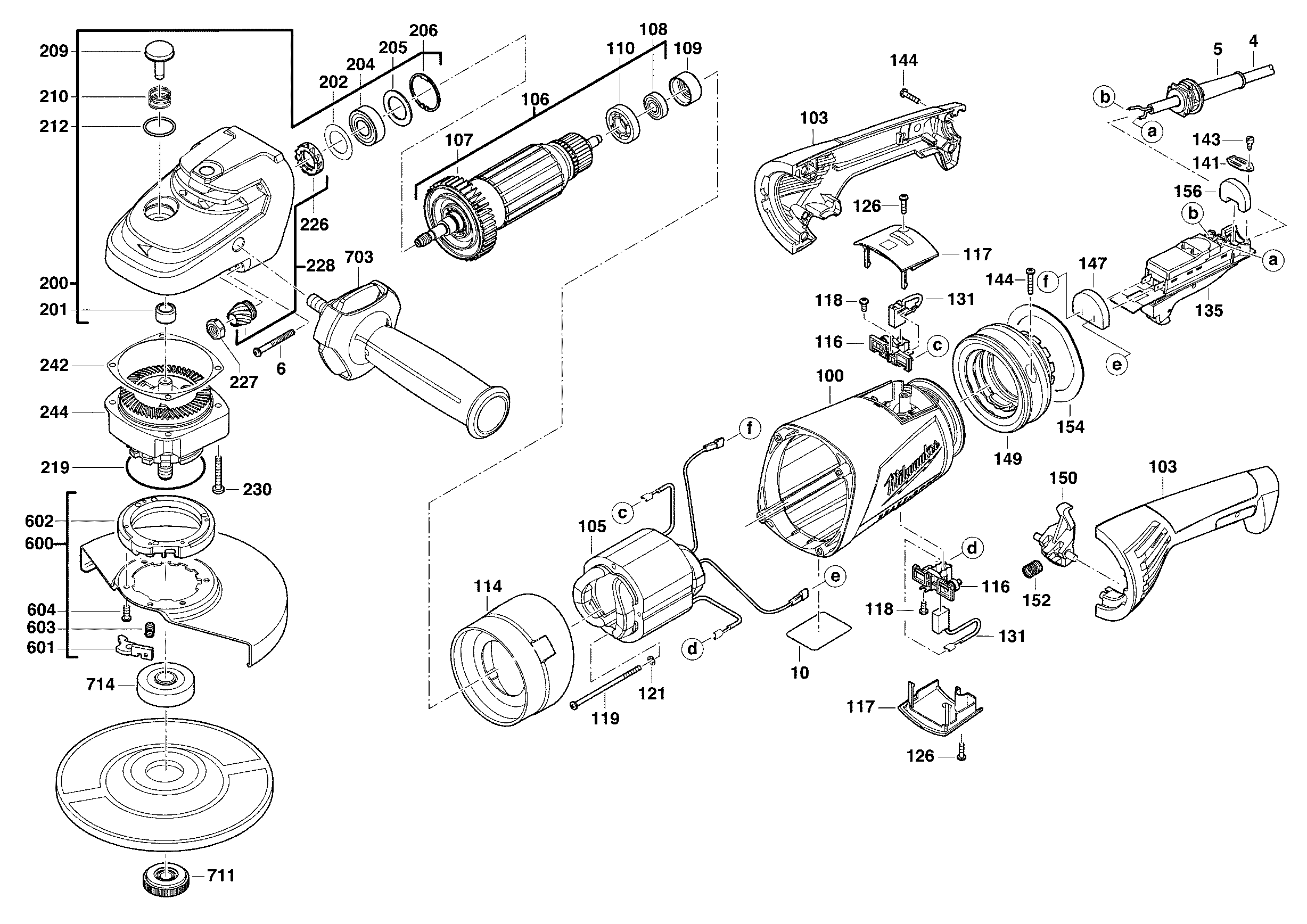

Technical drawing of model Milwaukee 4000402598 (AGVM24-230GX)
Spare parts list of model Milwaukee 4000402598 (AGVM24-230GX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 0004 | 4931624290 | |||
| No information available, not orderable | ||||
| 0005 | 4931402354 | |||
| SCREW N874101-1 SHR C-K5X45/20 KOMBITORX (4 needed | ||||
| 0006 | 4931622765 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0010 | 4931402599 | |||
| MOTOR HOUSING | ||||
| 0100 | 4931402172 | 30.10 | 36.42 | |
| SWITCH HANDLE | ||||
| 0103 | 4931402176 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 0105 | 4931402355 | |||
| No information available, not orderable | ||||
| 0106 | 4931402356 | |||
| FAN | ||||
| 0107 | 4931334394 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0108 | 4931341741 | 9.00 | 10.89 | |
| RUBBER SLEEVE | ||||
| 0109 | 4931329086 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0110 | 4931329084 | |||
| AIR DEFLECTOR RING | ||||
| 0114 | 4931402271 | 4.80 | 5.81 | |
| BRUSH HOLDER (2 needed) | ||||
| 0116 | 4931381694 | 6.00 | 7.26 | |
| COVER (2 needed) | ||||
| 0117 | 4931402169 | 4.49 | 5.43 | |
| SCREW (4 needed) | ||||
| 0118 | 4931624538 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0119 | 4931331734 | 3.00 | 3.63 | |
| SPRING WASHER D 137 B 4 (2 needed) | ||||
| 0121 | 4931619992 | 3.00 | 3.63 | |
| SCREW | ||||
| 0126 | 4931624537 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0131 | 4931392591 | |||
| No longer available, no replacement | ||||
| 0135 | 200300035 | |||
| No information available, not orderable | ||||
| 0141 | 4931334597 | |||
| SCREW (8 needed) | ||||
| 0144 | 4931618253 | 3.00 | 3.63 | |
| DUST SEAL | ||||
| 0147 | 4931402013 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0149 | 4931402283 | |||
| LATCH | ||||
| 0150 | 4931402230 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0152 | 4931402039 | 5.40 | 6.53 | |
| SPRING WASHER | ||||
| 0154 | 4931402029 | 2.16 | 2.61 | |
| DUST SEAL | ||||
| 0156 | 4931402286 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0200 | 4931402161 | 91.87 | 111.16 | |
| SLEEVE | ||||
| 0201 | 4931621981 | 6.00 | 7.26 | |
| DISC N874237 22,5X35X0,3 | ||||
| 0202 | 4931621629 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0204 | 4931624305 | 9.36 | 11.33 | |
| DISC | ||||
| 0205 | 4931622897 | 4.49 | 5.43 | |
| LOCKING RING | ||||
| 0206 | 4931334400 | 4.49 | 5.43 | |
| LOCKING BOLT | ||||
| 0209 | 4931402166 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0210 | 4931329173 | 4.49 | 5.43 | |
| O-RING | ||||
| 0212 | 4931622764 | 3.00 | 3.63 | |
| SEAL RING | ||||
| 0219 | 4931624672 | 5.40 | 6.53 | |
| GREASE RETAIN.DISC | ||||
| 0226 | 4931329178 | 4.49 | 5.43 | |
| NUT | ||||
| 0227 | 4931329494 | 5.40 | 6.53 | |
| REPAIR KIT | ||||
| 0228 | 4931455623 | 293.04 | 354.58 | |
| PINION | ||||
| 0228 | 4931402159 | 68.11 | 82.41 | |
| SCREW D 7500 M 3X12 (4 needed) | ||||
| 0230 | 4931624147 | 3.00 | 3.63 | |
| GASKET | ||||
| 0242 | 4931329150 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0244 | 4931402148 | |||
| REPAIR KIT | ||||
| 0420 | 4931455623 | 293.04 | 354.58 | |
| GUARD CAP | ||||
| 0600 | 4931426625 | 20.90 | 25.29 | |
| CATCH LEVER | ||||
| 0601 | 201256002 | 17.42 | 21.08 | |
| CATCH LEVER | ||||
| 0601 | 4931402072 | 4.49 | 5.43 | |
| FLANGE | ||||
| 0602 | 4931402063 | 4.80 | 5.81 | |
| PRESSURE SPRING | ||||
| 0603 | 4931402089 | 4.49 | 5.43 | |
| SCREW (5 needed) | ||||
| 0604 | 4931624491 | 3.00 | 3.63 | |
| HANDLE | ||||
| 0703 | 4931398251 | 20.59 | 24.91 | |
| FIXTEC-NUT | ||||
| 0711 | 4931402358 | 60.19 | 72.83 | |
| FIXTEC-NUT BULK | ||||
| 0711 | 4931468392 | 33.00 | 39.93 | |
| AUTOBALANCER | ||||
| 0714 | 4931402435 | 61.60 | 74.54 | |
