Here you will find all available parts and drawings of the 'Milwaukee 4000381466 ( AGV16-125QXC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

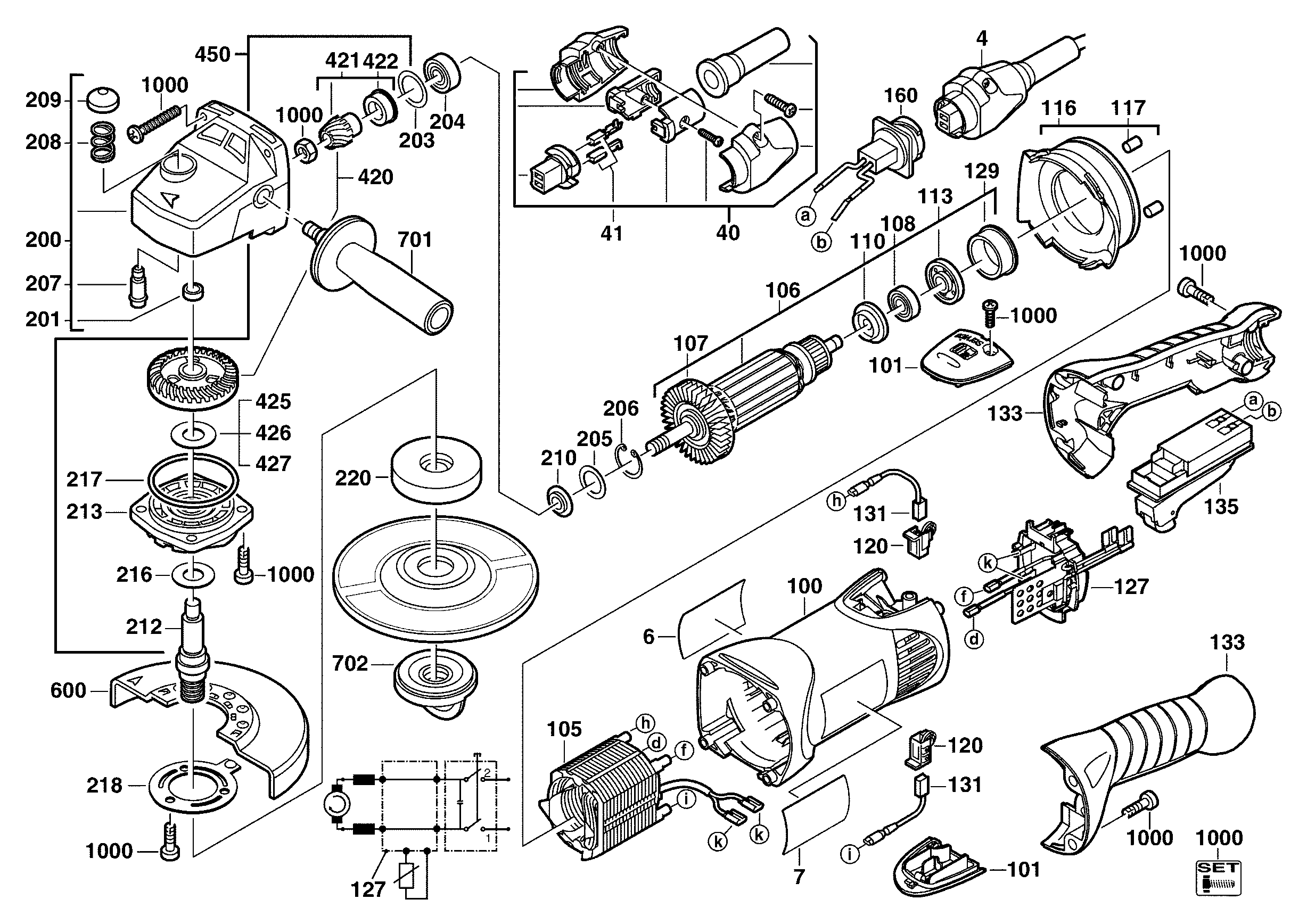

Technical drawing of model Milwaukee 4000381466 ( AGV16-125QXC )
Spare parts list of model Milwaukee 4000381466 ( AGV16-125QXC )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624188 | 52.27 | 63.25 | |
| TYPE PLATE | ||||
| 0007 | 4931378806 | 5.40 | 6.53 | |
| Cable socket p./10 | ||||
| 0041 | 4931380763 | 25.34 | 30.66 | |
| MOTOR HOUSING | ||||
| 0100 | 4931378768 | 10.80 | 13.07 | |
| COVER | ||||
| 0101 | 4931378566 | 5.40 | 6.53 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| MAGNETIC DISC | ||||
| 0113 | 4931426570 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931378135 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0127 | 4931378715 | |||
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931392608 | 15.84 | 19.17 | |
| SWITCH | ||||
| 0135 | 4931378949 | 19.01 | 23.00 | |
| PLUG | ||||
| 0160 | 4931364242 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0200 | 4931412193 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| WASHER | ||||
| 0203 | 4931362085 | 1.80 | 2.18 | |
| GROOVED BALL BEAR. | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| DISC | ||||
| 0205 | 4931622761 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| WASHER | ||||
| 0210 | 4931624287 | 1.80 | 2.18 | |
| SPINDLE | ||||
| 0212 | 4931369840 | 16.20 | 19.60 | |
| BEARING END PLATE | ||||
| 0213 | 4931378310 | 9.00 | 10.89 | |
| DISC | ||||
| 0216 | 4931623480 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0217 | 4931623590 | 5.40 | 6.53 | |
| SPRING WASHER | ||||
| 0218 | 4931345965 | 1.80 | 2.18 | |
| AUTOBALANCER | ||||
| 0220 | 4931369832 | 41.18 | 49.83 | |
| PINION | ||||
| 0420 | 4931369937 | 26.93 | 32.59 | |
| PINION | ||||
| 0421 | 4931369937 | 26.93 | 32.59 | |
| SEAL RING | ||||
| 0422 | 4931369774 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,1 | ||||
| 0425 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0426 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0427 | 4931624256 | 5.40 | 6.53 | |
| DRIVE GEAR | ||||
| 0450 | 4931391475 | 102.96 | 124.58 | |
| GUARD CAP | ||||
| 0600 | 4931407642 | 9.00 | 10.89 | |
| HANDLE | ||||
| 0701 | 4932409546 | 12.10 | 14.64 | |
| FIXTEC NUT M14 P1A | ||||
| 0702 | 4932358225 | 34.03 | 41.18 | |
| BOLT SET | ||||
| 1000 | 4931378570 | 15.84 | 19.17 | |
