Here you will find all available parts and drawings of the 'Milwaukee 4000407496 ( AGV15-125XC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

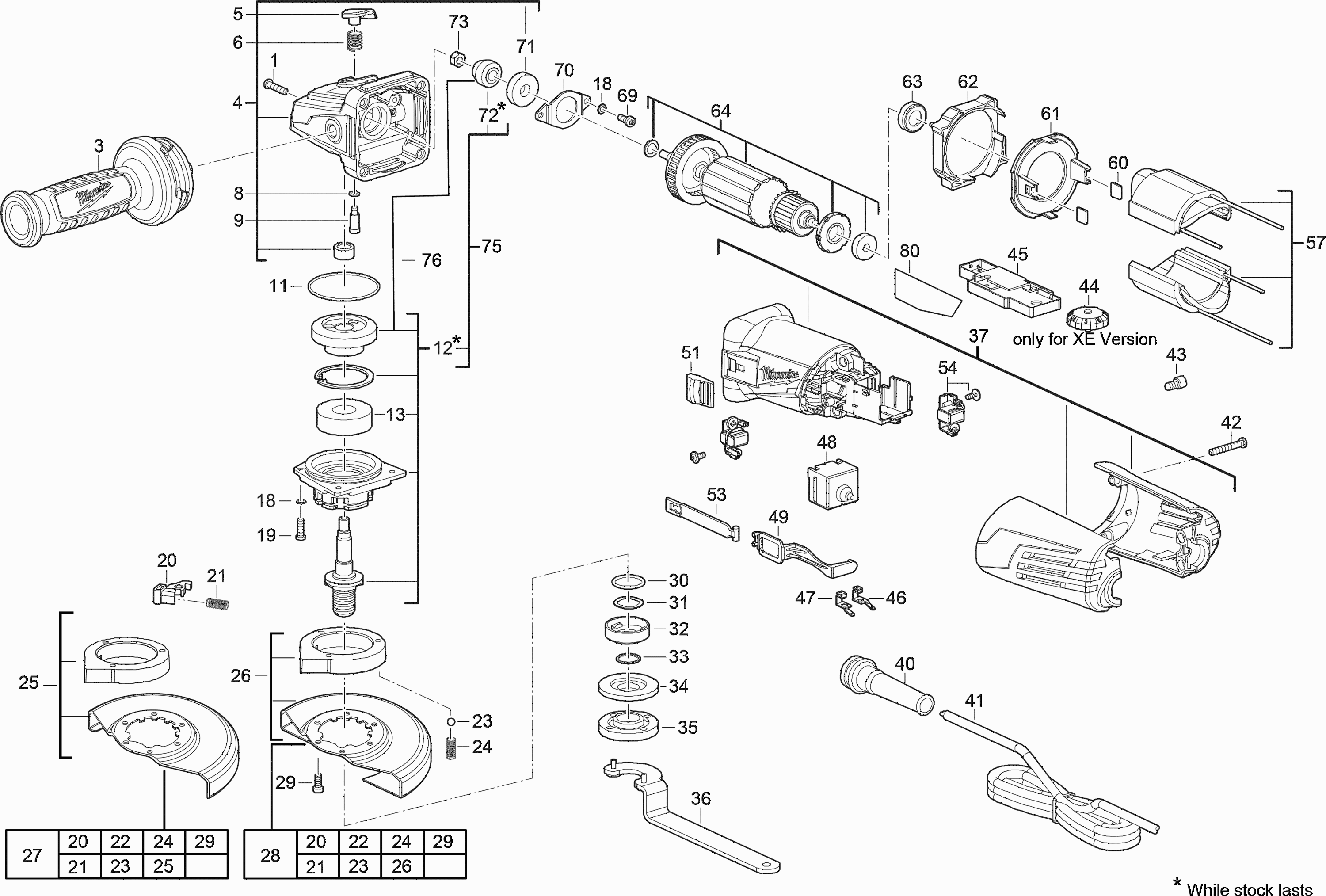

Technical drawing of model Milwaukee 4000407496 ( AGV15-125XC )
Spare parts list of model Milwaukee 4000407496 ( AGV15-125XC )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624339 | 22.18 | 26.84 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931218785 | 5.40 | 6.53 | |
| NAME PLATE | ||||
| 0007 | 4931382311 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0100 | 4931407431 | |||
| HOUSING CAP | ||||
| 0101 | 4931407395 | 6.31 | 7.64 | |
| ARMATURE | ||||
| 0106 | 4931426546 | 66.53 | 80.50 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| INTERMEDIATE FLANGE | ||||
| 0116 | 4931369787 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931407433 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0121 | 4931623590 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0122 | 4931256500 | 5.40 | 6.53 | |
| GUIDE PIECE | ||||
| 0124 | 4931326959 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0125 | 4931442821 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0126 | 4931326981 | 5.40 | 6.53 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931381391 | 14.40 | 17.42 | |
| SWITCH | ||||
| 0135 | 4931407397 | 11.69 | 14.14 | |
| SCREW D 85 AM 3,5X5 (2 needed) | ||||
| 0136 | 4931617313 | 1.80 | 2.18 | |
| DUST SEAL | ||||
| 0140 | 4931407396 | 4.49 | 5.43 | |
| GEAR BOX | ||||
| 0200 | 4931412193 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| WASHER | ||||
| 0203 | 4931362085 | 1.80 | 2.18 | |
| GROOVED BALL BEAR. | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| DISC | ||||
| 0205 | 4931622761 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| WASHER | ||||
| 0210 | 4931624287 | 1.80 | 2.18 | |
| SPINDLE | ||||
| 0212 | 4931409808 | 9.00 | 10.89 | |
| BEARING END PLATE | ||||
| 0213 | 4931378310 | 9.00 | 10.89 | |
| DISC | ||||
| 0216 | 4931623480 | 5.40 | 6.53 | |
| SPRING WASHER | ||||
| 0218 | 4931345965 | 1.80 | 2.18 | |
| PINION | ||||
| 0420 | 4931369937 | 26.93 | 32.59 | |
| PINION | ||||
| 0421 | 4931369937 | 26.93 | 32.59 | |
| SEAL RING | ||||
| 0422 | 4931369774 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,1 | ||||
| 0425 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0426 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0427 | 4931624256 | 5.40 | 6.53 | |
| DRIVE GEAR | ||||
| 0450 | 4931391476 | 39.60 | 47.92 | |
| GUARD CAP | ||||
| 0600 | 4931407642 | 9.00 | 10.89 | |
| HANDLE | ||||
| 0701 | 4932409546 | 12.10 | 14.64 | |
| FIXTEC NUT M14 P1A | ||||
| 0702 | 4932358225 | 34.03 | 41.18 | |
| flange | ||||
| 0704 | 4932449324 | 8.28 | 10.02 | |
| Stofbeschermrooster | ||||
| 0706 | 4932329397 | 17.60 | 21.30 | |
| BOLT SET | ||||
| 1000 | 4931362846 | 14.40 | 17.42 | |
