Here you will find all available parts and drawings of the 'Milwaukee 4000452862 (AG800-125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

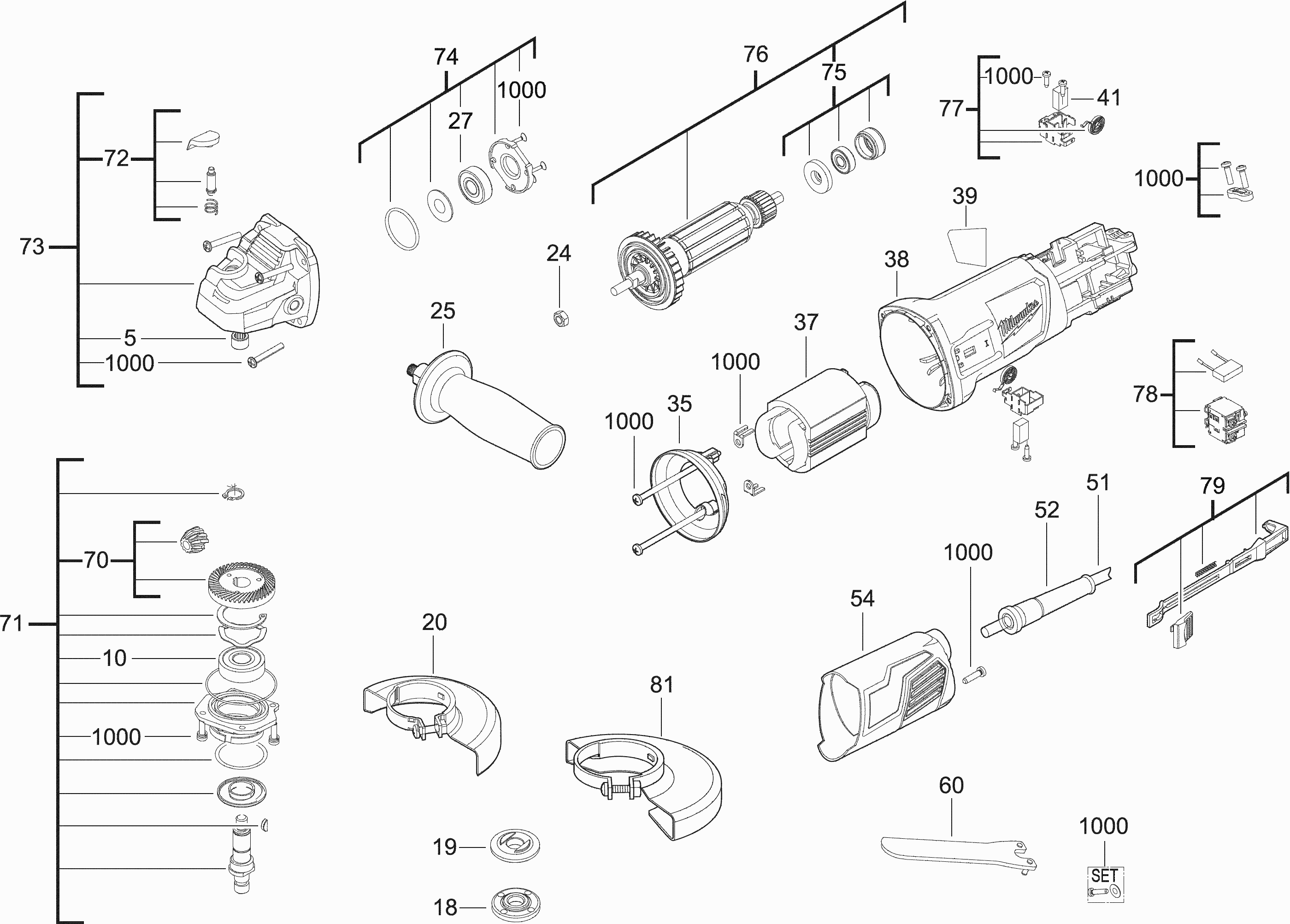

Technical drawing of model Milwaukee 4000452862 (AG800-125)
Spare parts list of model Milwaukee 4000452862 (AG800-125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0005 | 4931453548 | |||
| BALL BEARING | ||||
| 0010 | 4931453524 | 7.20 | 8.71 | |
| INTERMEDIATE FLANGE | ||||
| 0018 | 4931453551 | 7.20 | 8.71 | |
| INTERMEDIATE FLANGE | ||||
| 0019 | 4931453543 | 5.40 | 6.53 | |
| GUARD | ||||
| 0020 | 4931453541 | 17.42 | 21.08 | |
| NUT | ||||
| 0024 | 4931453549 | 3.60 | 4.36 | |
| AUXILIARY HANDLE | ||||
| 0025 | 4931453554 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0027 | 4931453523 | 7.20 | 8.71 | |
| AIR DEFLECTOR RING | ||||
| 0035 | 4931453520 | 3.00 | 3.63 | |
| ELECTRIC FIELD | ||||
| 0037 | 4931453537 | 45.94 | 55.59 | |
| MOTOR HOUSING | ||||
| 0038 | 4931453547 | 17.42 | 21.08 | |
| No longer available, no replacement | ||||
| 0039 | 4931453569 | |||
| CARBON BRUSH (2 needed) | ||||
| 0041 | 4931453529 | 10.80 | 13.07 | |
| CONNECTION CABLE | ||||
| 0051 | 4931453557 | 14.40 | 17.42 | |
| PROTECTING COVER | ||||
| 0052 | 4931453530 | 3.00 | 3.63 | |
| HOUSING CAP | ||||
| 0054 | 4931453559 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0060 | 4931453578 | |||
| GEARWHEEL SET | ||||
| 0070 | 4931453553 | 26.93 | 32.59 | |
| SPINDLE | ||||
| 0071 | 4931453571 | 61.78 | 74.75 | |
| LOCKING LEVER | ||||
| 0072 | 4931453546 | 3.00 | 3.63 | |
| GEAR BOX | ||||
| 0073 | 4931453538 | 42.77 | 51.75 | |
| BEARING KIT | ||||
| 0074 | 4931453526 | 14.40 | 17.42 | |
| BALL BEARING | ||||
| 0075 | 4931453525 | 9.84 | 11.91 | |
| ARMATURE | ||||
| 0076 | 4931453522 | 58.61 | 70.92 | |
| BRUSH HOLDER (2 needed) | ||||
| 0077 | 4931453528 | 7.20 | 8.71 | |
| SWITCH | ||||
| 0078 | 4931453574 | 17.42 | 21.08 | |
| SWITCH BUTTON | ||||
| 0079 | 4931453576 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0081 | 4931419253 | |||
| CARBON BRUSH SET | ||||
| 0101 | 4931511295 | 13.20 | 15.97 | |
| SCREW | ||||
| 1000 | 4931453560 | 10.80 | 13.07 | |
