Here you will find all available parts and drawings of the 'Milwaukee 4000403216 ( AG8-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

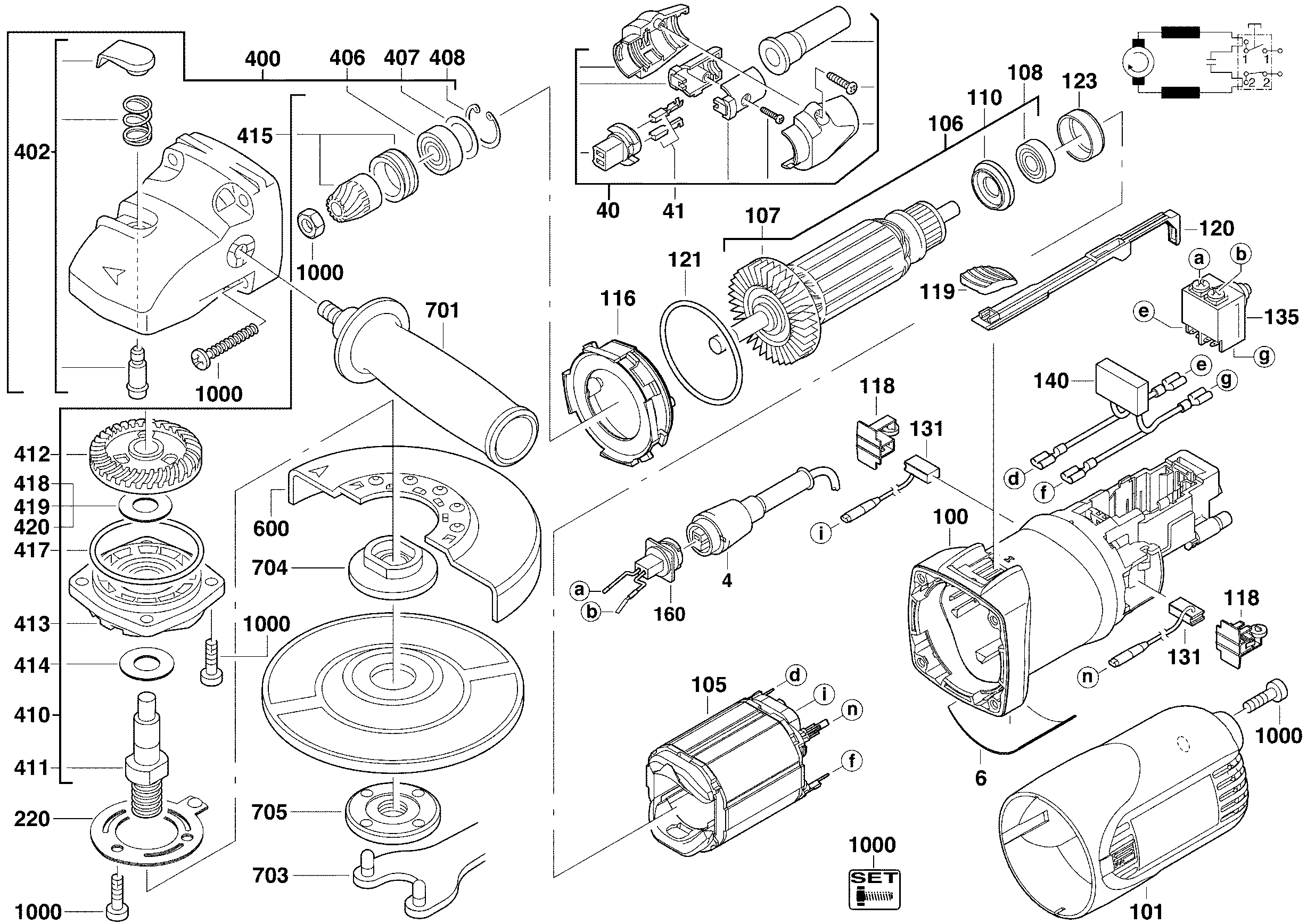

Technical drawing of model Milwaukee 4000403216 ( AG8-115 )
Spare parts list of model Milwaukee 4000403216 ( AG8-115 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cable socket p./10 | ||||
| 0041 | 4931380763 | 25.34 | 30.66 | |
| MOTOR HOUSING | ||||
| 0100 | 4931403004 | 9.00 | 10.89 | |
| HOUSING CAP | ||||
| 0101 | 4931403015 | 8.64 | 10.45 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426577 | 31.68 | 38.33 | |
| ARMATURE | ||||
| 0106 | 4931403220 | 66.53 | 80.50 | |
| FAN | ||||
| 0107 | 4931368347 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931385658 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931368332 | 5.40 | 6.53 | |
| BRUSH HOLDER (2 needed) | ||||
| 0118 | 4931368633 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0119 | 4931368501 | 5.40 | 6.53 | |
| GUIDE PIECE | ||||
| 0120 | 4931368333 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0121 | 4931623590 | 5.40 | 6.53 | |
| RUBBER SLEEVE | ||||
| 0123 | 4931368374 | 1.80 | 2.18 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931392612 | 14.40 | 17.42 | |
| SWITCH | ||||
| 0135 | 4931391034 | 7.20 | 8.71 | |
| CAPACITOR | ||||
| 0140 | 4931391182 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0160 | 4931381202 | |||
| SPRING WASHER | ||||
| 0220 | 4931345965 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0400 | 4931412069 | 45.94 | 55.59 | |
| LOCK COMPLETE | ||||
| 0402 | 4931358685 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0406 | 4931624662 | 9.00 | 10.89 | |
| SEALING WASHER 21,8X15,8X0,2 | ||||
| 0407 | 4931803914 | 1.80 | 2.18 | |
| LOCKING RING D 472 22X1 | ||||
| 0408 | 4931613683 | 5.40 | 6.53 | |
| DRIVE GEAR | ||||
| 0410 | 4931358682 | 69.70 | 84.34 | |
| SPINDLE | ||||
| 0411 | 4931409808 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0412 | 4931385587 | |||
| BEARING END PLATE | ||||
| 0413 | 4931378310 | 9.00 | 10.89 | |
| DISC | ||||
| 0414 | 4931623480 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0415 | 4931385587 | |||
| DISC N874237 12,2X22X0,1 | ||||
| 0418 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0419 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0420 | 4931624256 | 5.40 | 6.53 | |
| GUARD CAP | ||||
| 0600 | 4931407641 | 5.40 | 6.53 | |
| HANDLE | ||||
| 0701 | 4932409546 | 12.10 | 14.64 | |
| Opspansleutel, recht | ||||
| 0703 | 4932367712 | 8.16 | 9.87 | |
| flange | ||||
| 0704 | 4932449324 | 8.28 | 10.02 | |
| Spanmoer M14, 3 mm tbv slijpmachines | ||||
| 0705 | 4932345628 | 9.84 | 11.91 | |
| BOLT SET | ||||
| 1000 | 4931358683 | 14.40 | 17.42 | |
