Here you will find all available parts and drawings of the 'Milwaukee 4000431121 (AG750-115)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

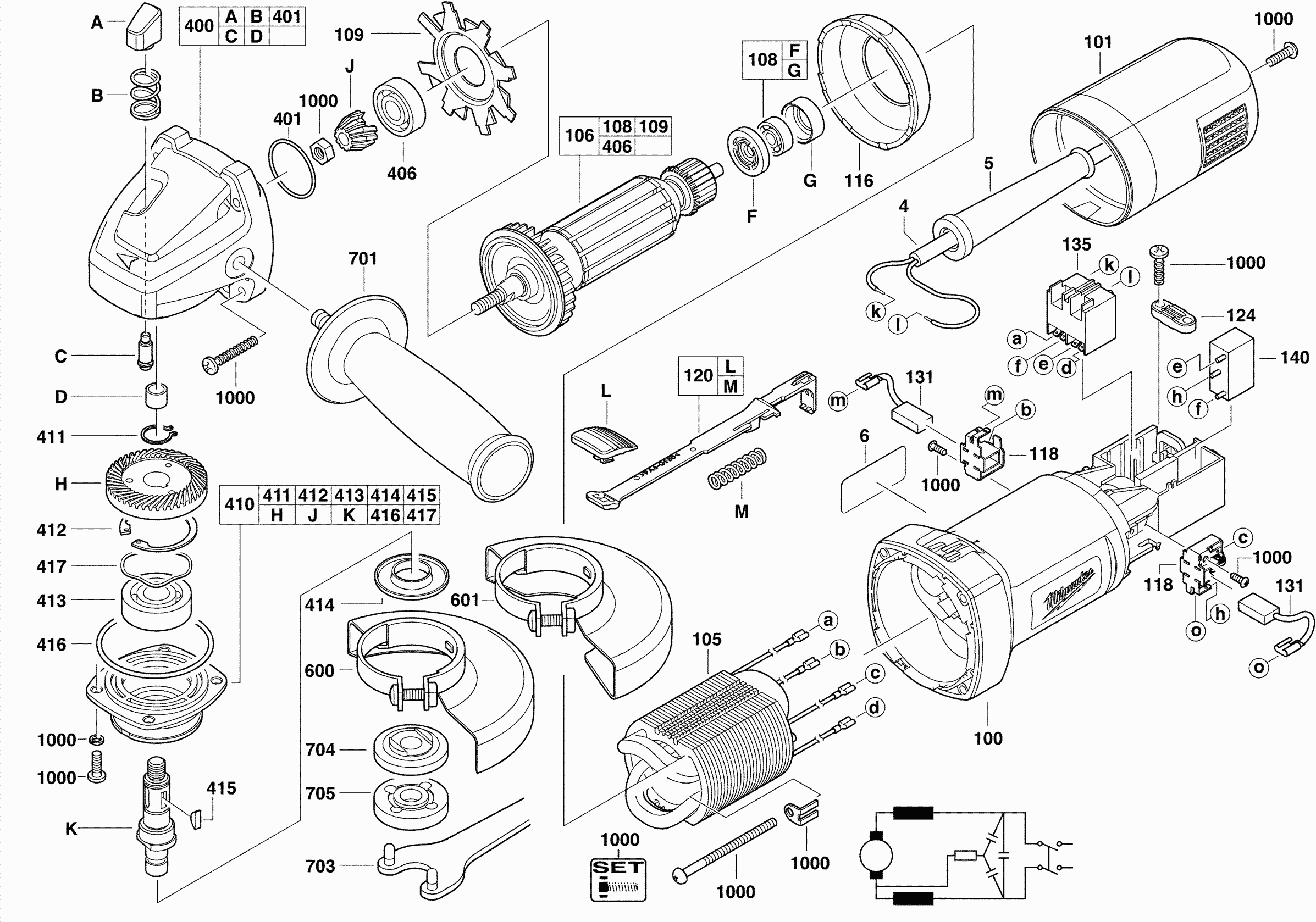

Technical drawing of model Milwaukee 4000431121 (AG750-115)
Spare parts list of model Milwaukee 4000431121 (AG750-115)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0004 | 4931393464 | |||
| PROTECTING COVER | ||||
| 0005 | 4931393426 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0006 | 4931431124 | |||
| No longer available, no replacement | ||||
| 0100 | 4931419203 | |||
| HOUSING CAP | ||||
| 0101 | 4931413887 | 4.49 | 5.43 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931393312 | 30.10 | 36.42 | |
| ARMATURE | ||||
| 0106 | 4931393428 | 52.27 | 63.25 | |
| BEARING KIT | ||||
| 0108 | 4931393430 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0109 | 4931393304 | |||
| AIR DEFLECTOR RING | ||||
| 0116 | 4931393309 | 3.00 | 3.63 | |
| BRUSH HOLDER (2 needed) | ||||
| 0118 | 4931393323 | 5.40 | 6.53 | |
| SLIDING SWITCH | ||||
| 0120 | 4931403430 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0124 | 4931393320 | 3.60 | 4.36 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931393322 | 10.80 | 13.07 | |
| SWITCH | ||||
| 0135 | 4931393317 | 10.80 | 13.07 | |
| CAPACITOR | ||||
| 0140 | 4931393318 | 5.40 | 6.53 | |
| GEAR BOX HOUSING | ||||
| 0400 | 4931419204 | 15.29 | 18.50 | |
| O-RING | ||||
| 0401 | 4931393472 | 3.60 | 4.36 | |
| GROOVED BALL BEAR. | ||||
| 0406 | 4931368037 | 6.48 | 7.84 | |
| DRIVE GEAR | ||||
| 0410 | 4931419245 | 36.43 | 44.08 | |
| No longer available, no replacement | ||||
| 0411 | 4931393292 | |||
| LOCKING RING | ||||
| 0412 | 4931890311 | 5.40 | 6.53 | |
| BALL BEARING D 625 6201 Z | ||||
| 0413 | 4931804664 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0414 | 4931393287 | |||
| No longer available, no replacement | ||||
| 0415 | 4931393286 | |||
| No information available, not orderable | ||||
| 0416 | 4931393434 | |||
| SPRING WASHER | ||||
| 0417 | 4931393473 | 3.00 | 3.63 | |
| GUARD CAP | ||||
| 0600 | 4931419249 | 9.00 | 10.89 | |
| GUARD CAP | ||||
| 0601 | 4931419252 | 9.00 | 10.89 | |
| HANDLE | ||||
| 0701 | 4931393247 | 4.49 | 5.43 | |
| SPANNER | ||||
| 0703 | 4931393248 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0704 | 4931393250 | |||
| FLANGE NUT | ||||
| 0705 | 4931393251 | 4.80 | 5.81 | |
| CONNECTOR | ||||
| 1000 | 4931393429 | 9.00 | 10.89 | |
