Here you will find all available parts and drawings of the 'Milwaukee 4000440326 (AG10-115)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

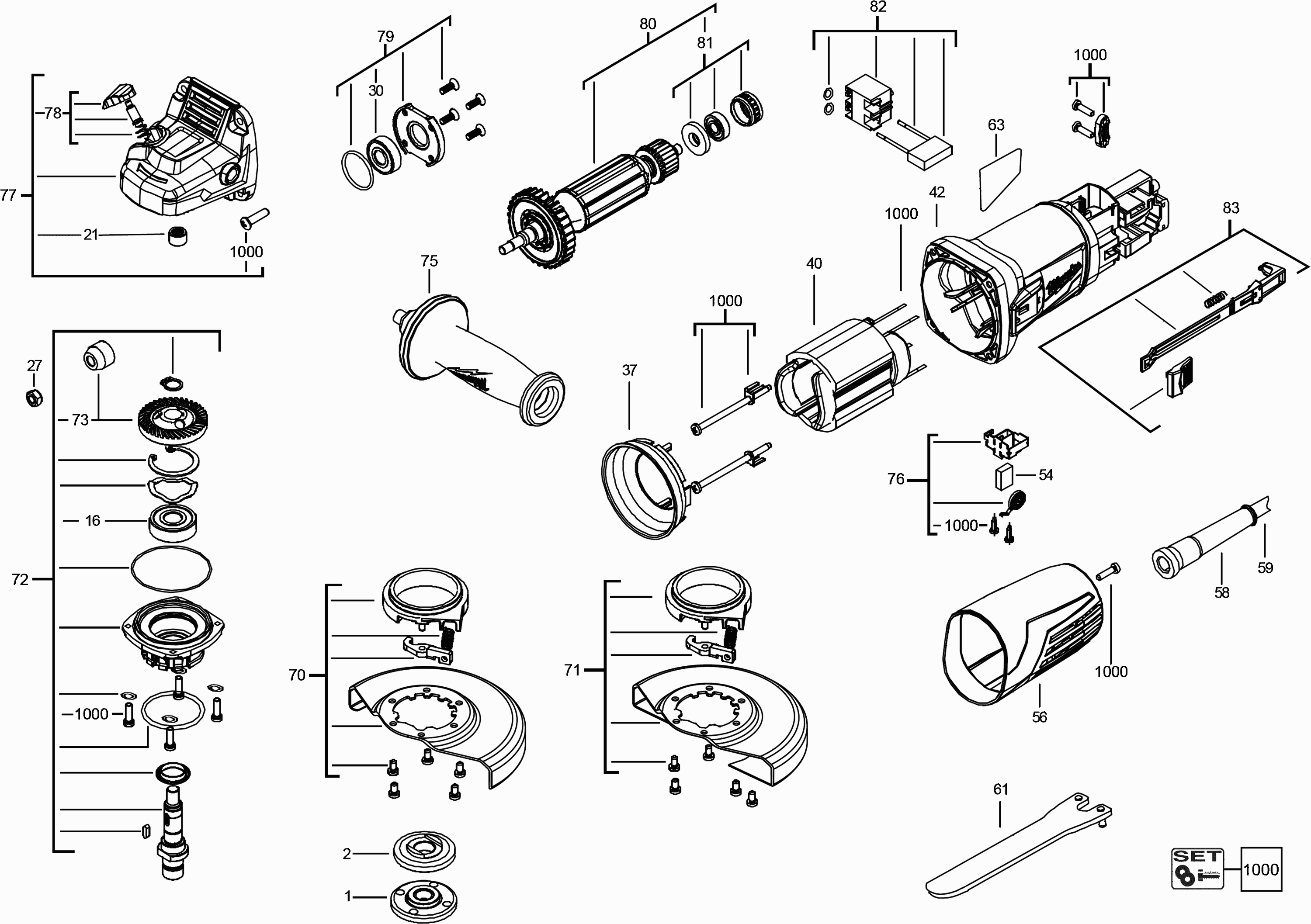

Technical drawing of model Milwaukee 4000440326 (AG10-115)
Spare parts list of model Milwaukee 4000440326 (AG10-115)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FLANGE | ||||
| 0001 | 4931441521 | 5.40 | 6.53 | |
| FLANGE | ||||
| 0002 | 4931441523 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0016 | 4931441524 | 5.40 | 6.53 | |
| NEEDLE BEARING | ||||
| 0021 | 4931441525 | 5.30 | 6.41 | |
| NUT | ||||
| 0027 | 4931441526 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0030 | 4931441527 | 12.60 | 15.25 | |
| AIR DEFLECTOR RING | ||||
| 0037 | 4931441528 | 3.00 | 3.63 | |
| ELECTRIC FIELD | ||||
| 0040 | 4931441529 | 39.60 | 47.92 | |
| MOTOR HOUSING | ||||
| 0042 | 4931441531 | 14.40 | 17.42 | |
| CARBON BRUSH (2 needed) | ||||
| 0054 | 4931441234 | 7.20 | 8.71 | |
| COVER | ||||
| 0056 | 4931441533 | 5.40 | 6.53 | |
| CABLE ENTRY SLEEVE | ||||
| 0058 | 4931441534 | 3.00 | 3.63 | |
| CONNECTION CABLE | ||||
| 0059 | 4931441536 | 54.00 | 65.34 | |
| WRENCH | ||||
| 0061 | 4931441539 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0063 | 4931441544 | 4.54 | 5.49 | |
| GUARD CAP SET | ||||
| 0070 | 4931507670 | 14.30 | 17.30 | |
| GUARD CAP | ||||
| 0070 | 4931441551 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 0071 | 4931441554 | |||
| SPINDLE KIT | ||||
| 0072 | 4931441557 | 48.92 | 59.19 | |
| PINION | ||||
| 0073 | 4931441558 | 31.68 | 38.33 | |
| HANDLE | ||||
| 0075 | 4931441548 | 9.00 | 10.89 | |
| BRUSH HOLDER | ||||
| 0076 | 4931441559 | 5.40 | 6.53 | |
| GEAR BOX KIT | ||||
| 0077 | 4931441560 | 30.10 | 36.42 | |
| LOCK COMPLETE | ||||
| 0078 | 4931441561 | 5.40 | 6.53 | |
| BEARING CAGE | ||||
| 0079 | 4931441562 | 14.40 | 17.42 | |
| ARMATURE | ||||
| 0080 | 4931441563 | 52.27 | 63.25 | |
| BALL BEARING | ||||
| 0081 | 4931441565 | 12.60 | 15.25 | |
| SWITCH | ||||
| 0082 | 4931441567 | 13.34 | 16.14 | |
| SWITCH LEVER | ||||
| 0083 | 4931441568 | 3.00 | 3.63 | |
| CARBON BRUSH SET | ||||
| 0100 | 4931511292 | 8.40 | 10.16 | |
| BOLT SET | ||||
| 1000 | 4931441569 | 5.40 | 6.53 | |
