Here you will find all available parts and drawings of the 'Milwaukee 4000403751 (6268-21)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

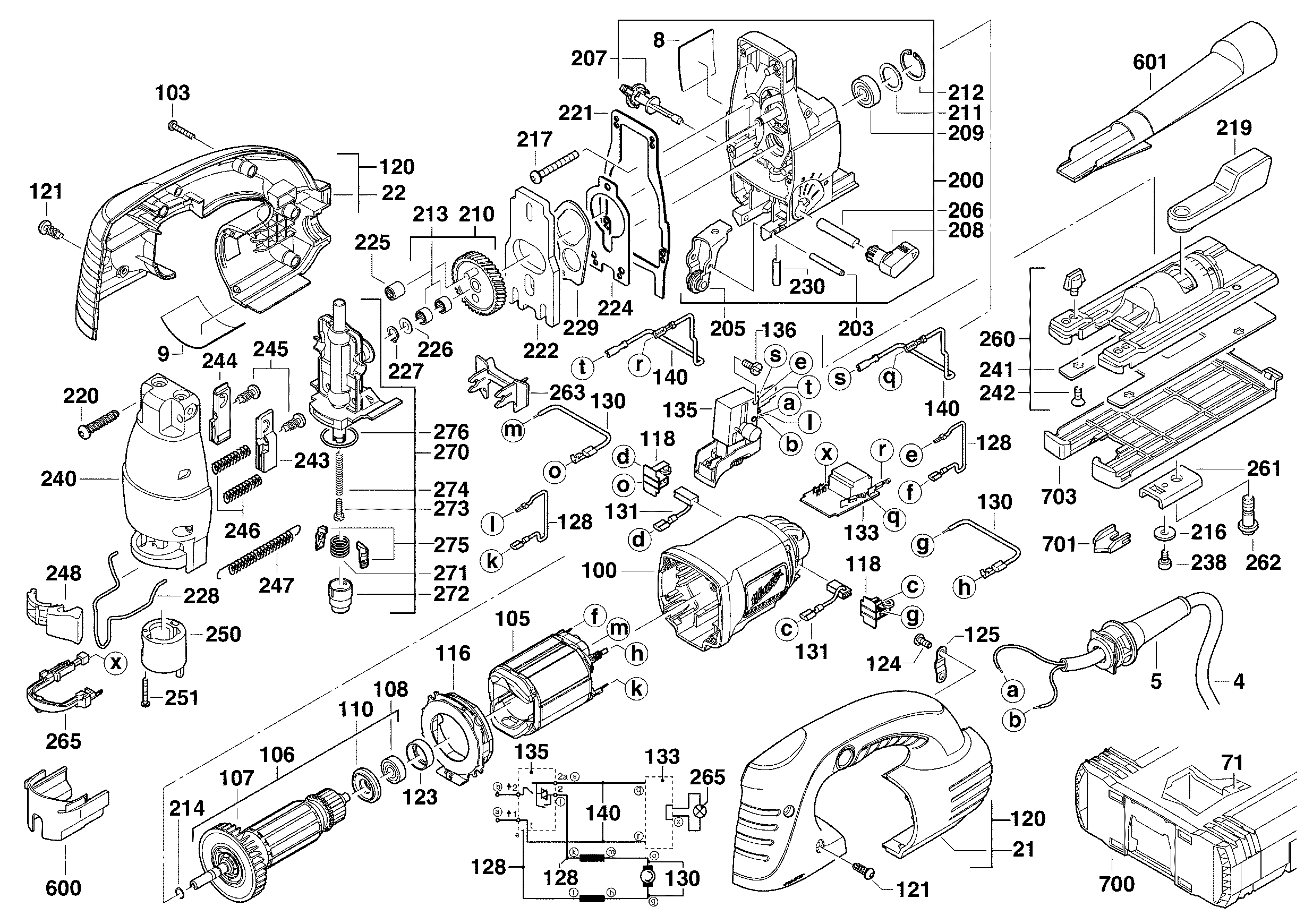

Technical drawing of model Milwaukee 4000403751 (6268-21)
Spare parts list of model Milwaukee 4000403751 (6268-21)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 0004 | 4931623587 | |||
| PROTECTING COVER | ||||
| 0005 | 4931393422 | 5.40 | 6.53 | |
| SAW TABLE | ||||
| 0008 | 4931381657 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0009 | 4931403573 | |||
| PAIR HANDLE SHELLS | ||||
| 0021 | 4931381227 | 16.20 | 19.60 | |
| PAIR HANDLE SHELLS | ||||
| 0022 | 4931381227 | 16.20 | 19.60 | |
| CARRYING CASE | ||||
| 0071 | 4931415345 | 38.50 | 46.58 | |
| MOTOR HOUSING | ||||
| 0100 | 4931381333 | 9.00 | 10.89 | |
| SCREW (8 needed) | ||||
| 0103 | 4931618253 | 3.00 | 3.63 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426484 | 26.93 | 32.59 | |
| ARMATURE | ||||
| 0106 | 4931442637 | 47.85 | 57.90 | |
| ARMATURE | ||||
| 0106 | 4931426488 | 33.00 | 39.93 | |
| No longer available, no replacement | ||||
| 0107 | 4931368347 | |||
| BALL BEARING | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931385658 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931368649 | 4.49 | 5.43 | |
| BRUSH HOLDER (2 needed) | ||||
| 0118 | 4931368633 | 5.40 | 6.53 | |
| PAIR HANDLE SHELLS | ||||
| 0120 | 4931381227 | 16.20 | 19.60 | |
| SCREW (2 needed) | ||||
| 0121 | 4931623048 | 3.00 | 3.63 | |
| RUBBER SLEEVE | ||||
| 0123 | 4931368374 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0124 | 4931624538 | 3.00 | 3.63 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0128 | 4931623173 | |||
| WIRE (2 needed) | ||||
| 0130 | 4931622843 | 4.49 | 5.43 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931381655 | 14.40 | 17.42 | |
| PRINTED CIRC. BOARD | ||||
| 0133 | 4931381604 | 22.18 | 26.84 | |
| SWITCH | ||||
| 0135 | 4931381349 | 32.45 | 39.26 | |
| SCREW | ||||
| 0136 | 4931621772 | 1.80 | 2.18 | |
| WIRE (2 needed) | ||||
| 0140 | 4931624445 | 4.49 | 5.43 | |
| GEAR BOX | ||||
| 0200 | 4931412831 | 72.86 | 88.16 | |
| PIN D 6325 4 M6X32 | ||||
| 0203 | 4931621942 | 6.48 | 7.84 | |
| HOLDER | ||||
| 0205 | 4931468106 | 10.20 | 12.34 | |
| INDEXING BOLT | ||||
| 0206 | 4931381103 | 6.48 | 7.84 | |
| SWITCH | ||||
| 0207 | 4931381156 | 5.40 | 6.53 | |
| SWITCH HANDLE | ||||
| 0208 | 4931378812 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0209 | 4931901253 | 9.36 | 11.33 | |
| GEAR | ||||
| 0210 | 4931357515 | 19.01 | 23.00 | |
| SEALING WASHER 21,8X15,8X0,2 | ||||
| 0211 | 4931803914 | 3.00 | 3.63 | |
| LOCKING RING D 472 22X1 | ||||
| 0212 | 4931613683 | 5.40 | 6.53 | |
| NEEDLE BEARING (2 needed) | ||||
| 0213 | 4931219422 | 3.00 | 3.63 | |
| LOCKING RING D 471 7X0,8 | ||||
| 0214 | 4931621828 | 5.40 | 6.53 | |
| DISC | ||||
| 0216 | 4931622131 | 5.40 | 6.53 | |
| SCREW D 7981 3,9X32 (4 needed) | ||||
| 0217 | 4931621515 | 2.16 | 2.61 | |
| TENSION LEVER | ||||
| 0219 | 4931381609 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0220 | 4931623020 | 3.00 | 3.63 | |
| SEAL | ||||
| 0221 | 4931381656 | 5.40 | 6.53 | |
| BALANCE WEIGHT | ||||
| 0222 | 4931381109 | 9.00 | 10.89 | |
| SHIM | ||||
| 0224 | 4931357577 | 5.40 | 6.53 | |
| NEEDLE BUSH | ||||
| 0225 | 4931361376 | 5.40 | 6.53 | |
| DISC N874237 6,1X12X0,5 | ||||
| 0226 | 4931621830 | 5.40 | 6.53 | |
| RING D471 6X0,7 | ||||
| 0227 | 4931605092 | 5.40 | 6.53 | |
| WIRE STRAP | ||||
| 0228 | 4931357982 | 6.48 | 7.84 | |
| ROCKER BAR | ||||
| 0229 | 4931357522 | 5.40 | 6.53 | |
| CYLINDER PIN | ||||
| 0230 | 4931381112 | 5.40 | 6.53 | |
| SCREW | ||||
| 0238 | 4931300699 | 3.00 | 3.63 | |
| GEAR BOX COVER | ||||
| 0240 | 4931426460 | 39.60 | 47.92 | |
| GROUND PLATE | ||||
| 0241 | 4931412827 | 20.59 | 24.91 | |
| SCREW (4 needed) | ||||
| 0242 | 4931310396 | 3.00 | 3.63 | |
| BEARING CAGE | ||||
| 0243 | 4931357986 | 5.40 | 6.53 | |
| BEARING CAGE | ||||
| 0244 | 4931357985 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0245 | 4931317532 | 3.00 | 3.63 | |
| PRESSURE SPRING (2 needed) | ||||
| 0246 | 4931341759 | 5.40 | 6.53 | |
| TENSION SPRING | ||||
| 0247 | 4931330453 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0248 | 4931357984 | 4.49 | 5.43 | |
| INDEXING SLEEVE | ||||
| 0250 | 4931381158 | 6.48 | 7.84 | |
| SCREW | ||||
| 0251 | 4931624172 | 3.00 | 3.63 | |
| GROUND PLATE | ||||
| 0260 | 4931412827 | 20.59 | 24.91 | |
| PRESSURE ELEMENT | ||||
| 0261 | 4931357588 | 5.40 | 6.53 | |
| SCREW | ||||
| 0262 | 4931381124 | 3.00 | 3.63 | |
| COVER | ||||
| 0263 | 4931381638 | 4.49 | 5.43 | |
| HOLDER | ||||
| 0265 | 4931381603 | 14.40 | 17.42 | |
| RAM | ||||
| 0270 | 4931357693 | 39.60 | 47.92 | |
| TORSION SPRING | ||||
| 0271 | 4931330424 | 5.40 | 6.53 | |
| COLLET | ||||
| 0272 | 4931330494 | 10.80 | 13.07 | |
| SCREW | ||||
| 0273 | 4931623102 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0274 | 4931357686 | |||
| CENTERING JAW (2 needed) | ||||
| 0275 | 4931330303 | 5.04 | 6.10 | |
| SEAL RING | ||||
| 0276 | 4931623091 | 5.40 | 6.53 | |
| DUST CAP | ||||
| 0600 | 4931357987 | 5.40 | 6.53 | |
| SUCTION SLEEVE | ||||
| 0601 | 4931357983 | 5.40 | 6.53 | |
| CARRYING CASE WITH FOAM INSERT MET | ||||
| 0700 | 4932378986 | 52.64 | 63.69 | |
| ANT-CHIPPING DEVICE (3 PCS) P1 A/M | ||||
| 0701 | 4931449321 | 9.50 | 11.50 | |
| JSPE90X GUIDE SHOE JS SHOE - 1PC | ||||
| 0703 | 4932430356 | 15.00 | 18.15 | |
