Here you will find all available parts and drawings of the 'Milwaukee 4000374466 (5383-9MILWAUKEE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

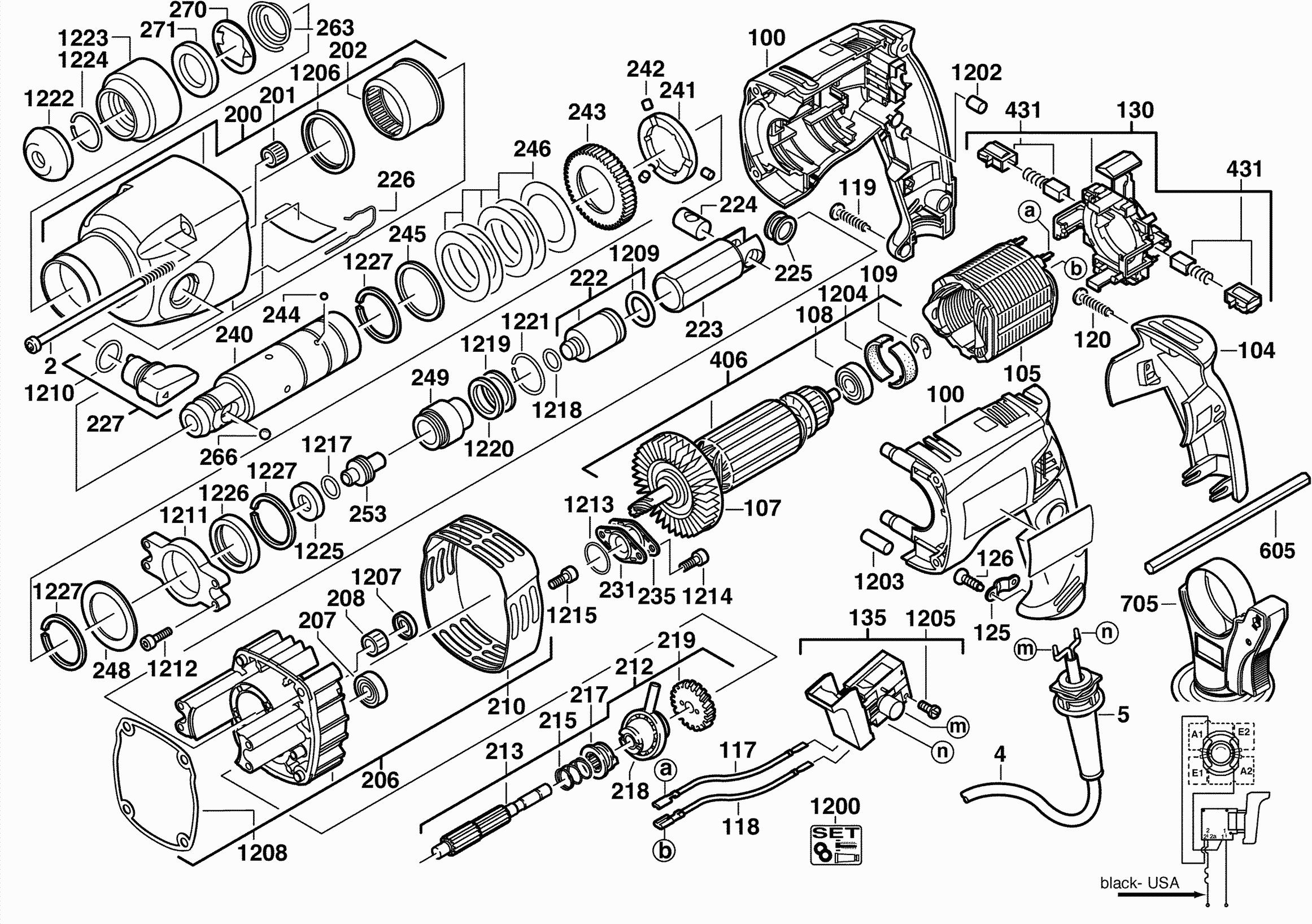

Technical drawing of model Milwaukee 4000374466 (5383-9MILWAUKEE)
Spare parts list of model Milwaukee 4000374466 (5383-9MILWAUKEE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (2 needed) | ||||
| 0002 | 4931331734 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0004 | 4931623197 | |||
| PROTECTING COVER | ||||
| 0005 | 4931392174 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0100 | 4931379067 | |||
| No information available, not orderable | ||||
| 0104 | 4931374488 | |||
| ELECTRIC FIELD | ||||
| 0105 | 4931426187 | 23.76 | 28.75 | |
| FAN | ||||
| 0107 | 4931330633 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0108 | 4931624169 | 9.00 | 10.89 | |
| WASHER | ||||
| 0109 | 4931621834 | 3.00 | 3.63 | |
| SCREW (8 needed) | ||||
| 0119 | 4931618253 | 3.00 | 3.63 | |
| SCREW N874101-1 SHR H-K4X22 T15 (4 needed) | ||||
| 0120 | 4931624517 | 3.00 | 3.63 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0126 | 4931624538 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0130 | 4931374499 | |||
| No longer available, no replacement | ||||
| 0200 | 200281025 | |||
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0201 | 4931933756 | 4.32 | 5.23 | |
| No information available, not orderable | ||||
| 0202 | 4931365065 | |||
| BALL BEARING | ||||
| 0207 | 681383001 | 9.00 | 10.89 | |
| NEEDLE BEARING | ||||
| 0208 | 4931219424 | 4.32 | 5.23 | |
| No longer available, no replacement | ||||
| 0213 | 4931365010 | |||
| SPRING | ||||
| 0215 | 4931365058 | 3.00 | 3.63 | |
| WOBBLE DRIVE | ||||
| 0218 | 4931387623 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0219 | 4931365014 | |||
| RAM | ||||
| 0222 | 201233001 | 17.11 | 20.70 | |
| No information available, not orderable | ||||
| 0223 | 4931365029 | |||
| CYLINDRICAL BOLT | ||||
| 0224 | 4931387381 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0225 | 4931365112 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0226 | 4931365047 | |||
| No longer available, no replacement | ||||
| 0227 | 4931374856 | |||
| No information available, not orderable | ||||
| 0235 | 4931365135 | |||
| No longer available, no replacement | ||||
| 0240 | 4931374258 | |||
| CLUTCH DISC | ||||
| 0241 | 4931392751 | 5.40 | 6.53 | |
| CYLINDRICAL BOLT (3 needed) | ||||
| 0242 | 4931365057 | 5.40 | 6.53 | |
| SPINDLE GEAR | ||||
| 0243 | 4931407761 | 5.40 | 6.53 | |
| BALL (3 needed) | ||||
| 0244 | 4931944281 | 3.00 | 3.63 | |
| WASHER | ||||
| 0245 | 4931623234 | 3.00 | 3.63 | |
| CUP SPRING (5 needed) | ||||
| 0246 | 4931365066 | 5.40 | 6.53 | |
| WASHER | ||||
| 0248 | 4931623199 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0253 | 4931365034 | |||
| PRESSURE SPRING | ||||
| 0263 | 4931343128 | 5.40 | 6.53 | |
| BALL | ||||
| 0266 | 4931911572 | 3.00 | 3.63 | |
| SUPPORT PLATE | ||||
| 0270 | 4931343127 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0271 | 4931343126 | |||
| No longer available, no replacement | ||||
| 0406 | 200026027 | |||
| CARBON BRUSH SET | ||||
| 0431 | 4931372361 | 24.20 | 29.28 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| HANDLE PHE P1 A/M | ||||
| 0705 | 4932373725 | 19.36 | 23.43 | |
| No information available, not orderable | ||||
| 1200 | 4931374197 | |||
| HOLDING-DOWN DEVICE | ||||
| 1202 | 4931409768 | 6.48 | 7.84 | |
| HOLDING-DOWN DEVICE | ||||
| 1203 | 4931307423 | 5.40 | 6.53 | |
| SCREW | ||||
| 1205 | 4931621772 | 1.80 | 2.18 | |
| SEAL RING N874724 30X37X4 | ||||
| 1206 | 4931623885 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 1207 | 4931623700 | |||
| No longer available, no replacement | ||||
| 1208 | 4931379289 | |||
| O-RING | ||||
| 1209 | 561994001 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 1210 | 4931920948 | |||
| No longer available, no replacement | ||||
| 1211 | 4931365032 | |||
| No longer available, no replacement | ||||
| 1212 | 4931623886 | |||
| SEAL RING | ||||
| 1213 | 4931623833 | 4.49 | 5.43 | |
| SCREW (2 needed) | ||||
| 1214 | 4931267225 | 3.00 | 3.63 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 1217 | 4931623783 | |||
| O-RING | ||||
| 1218 | 562597001 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 1219 | 4931622160 | |||
| No longer available, no replacement | ||||
| 1220 | 4931943504 | |||
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| CAP | ||||
| 1222 | 4931343123 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 1223 | 4931365054 | |||
| SPRING RING | ||||
| 1224 | 4931623220 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 1225 | 4931374728 | |||
| DAMPING RING | ||||
| 1226 | 4931365188 | 4.49 | 5.43 | |
| SPRING RING (2 needed) | ||||
| 1227 | 4931945764 | 5.40 | 6.53 | |
