Here you will find all available parts and drawings of the 'Metabo 06451260 ( WXLA24-230QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

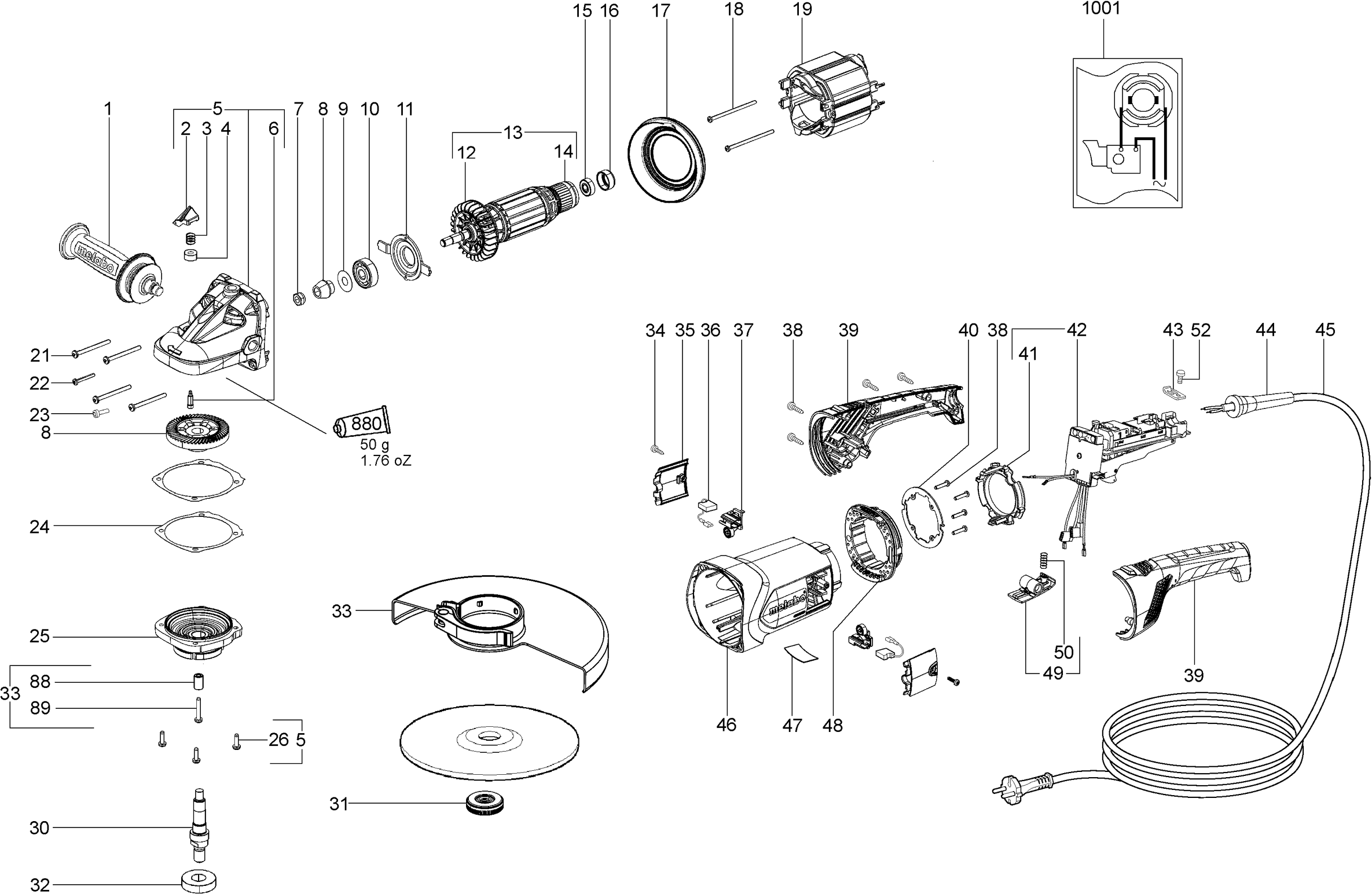

Technical drawing of model Metabo 06451260 ( WXLA24-230QUICK )

Spare parts list of model Metabo 06451260 ( WXLA24-230QUICK )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Anti-Vibration Handle, M 14
1 314000960 24.23 29.32
Drukknop zwart
2 343399790 1.55 1.88
Pressure spring
3 342003390 1.55 1.88
Geleidingsbus
4 341005830 3.71 4.49
Tandwielhuis compl.
5 316045500 67.33 81.47
Bolt
6 341515430 1.55 1.88
Zeskantmoer
7 341100660 3.02 3.65
Tandwiel set
8 316045530 53.86 65.17
Washer
9 141123870 1.55 1.88
Ball bearing 12x37x12
10 143115510 4.51 5.46
Vaste lagerdeksel
11 339007280 3.02 3.65
Waaier m. Stofbeschermkorf
12 316045560 10.38 12.56
Anker compl.,230V
13 310009510 187.73 227.15
Centrifugeerschijf
14 343390630 1.55 1.88
Kogellager 8x22x 7
15 143115800 2.28 2.76
No information available, not orderable
16 344094080
Luchtgeleidingsschijf
17 339151130 1.55 1.88
Self-tap. fill. h. screw
18 141121680 1.55 1.88
Field coil
19 311010950 53.86 65.17
Self-tap. fill. h. screw
21 141119370 1.55 1.88
Fillister head screw
22 141122020 1.55 1.88
Fillister head screw
23 141119850 1.55 1.88
Gasket
24 339011810 1.55 1.88
Tandwielflens compl.
25 316045550 48.48 58.66
Fill. head screw(DIN 7985)
26 141121640 1.55 1.88
Pan head screw,(DIN 7985)
27 141123890 1.55 1.88
Borgschijf
29 141181500 1.55 1.88
Spindle shaft
30 341604130 24.23 29.32
Quick nut
31 316027620 32.27 39.05
Auto balancer
32 341148160 80.81 97.78
Beschermkap compl.
33 316053510 60.59 73.31
Screw
34 341702050 1.55 1.88
Koolborstelhouderdeksel
35 343395530 1.55 1.88
Carbon brush set, 230 V
36 316042050 11.74 14.21
Koolborstelhouder
37 343000950 7.22 8.74
Self-tap fill h screw
38 141116020 1.67 2.02
Handgreep boven/onderdeel
39 343395510 10.38 12.56
Retaining sheet
40 339007320 1.67 2.02
Kantenbescherming
41 343399800 1.55 1.88
Elektro.schakelaar set,Defond 230V
42 316055600 80.81 97.78
Cable clip
43 339127730 1.55 1.88
Kabelbescherming
44 344094550 2.28 2.76
Kabel m. CEE-stekker
45 344487800 16.25 19.66
Motorhuis dennen groen
46 315013300 16.25 19.66
No information available, not orderable
47 338052760
Damper
48 343397490 8.89 10.76
Vastzethendel
49 343397700 1.67 2.02
Locking lever
49 343395520 1.67 2.02
Pressure spring
50 342002170 1.55 1.88
Self-tap. fill. h. screw
52 141116800 1.55 1.88
Afstandsbus
88 341006090 1.55 1.88
Cilinderkopschroef
89 141111340 1.55 1.88
Tube of grease 100 gr.
880 344130910 13.48 16.31
No information available, not orderable
1001 338505670
