Here you will find all available parts and drawings of the 'Metabo 20043001 (WXPARTNEREDITION)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

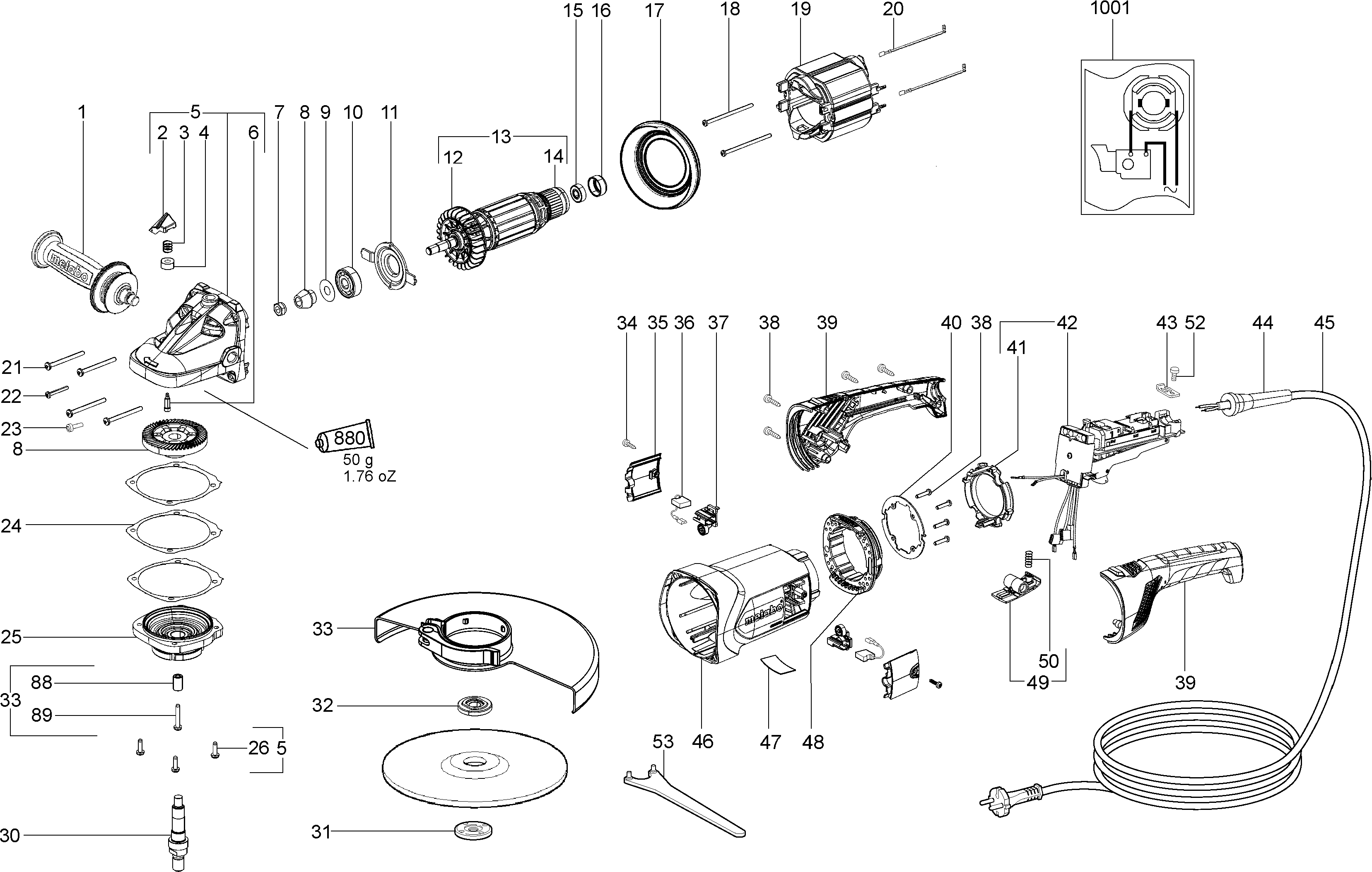

Technical drawing of model Metabo 20043001 (WXPARTNEREDITION)
Spare parts list of model Metabo 20043001 (WXPARTNEREDITION)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anti-Vibration Handle, M 14 | ||||
| 1 | 314000960 | 24.23 | 29.32 | |
| Push button | ||||
| 2 | 343397790 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 3 | 342003390 | 1.56 | 1.89 | |
| Geleidingsbus | ||||
| 4 | 341005830 | 3.71 | 4.49 | |
| Tandwielhuis compl. | ||||
| 5 | 316045500 | 67.33 | 81.47 | |
| Bolt | ||||
| 6 | 341515430 | 1.56 | 1.89 | |
| Zeskantmoer | ||||
| 7 | 341100660 | 3.02 | 3.65 | |
| Tandwiel set | ||||
| 8 | 316045530 | 53.86 | 65.17 | |
| Washer | ||||
| 9 | 141123870 | 1.56 | 1.89 | |
| Ball bearing 12x37x12 | ||||
| 10 | 143115510 | 4.51 | 5.46 | |
| Vaste lagerdeksel | ||||
| 11 | 339007280 | 3.02 | 3.65 | |
| Waaier m. Stofbeschermkorf | ||||
| 12 | 316045560 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 13 | 310009480 | |||
| Centrifugeerschijf | ||||
| 14 | 343390630 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 15 | 143113400 | |||
| No information available, not orderable | ||||
| 16 | 344094080 | |||
| Luchtgeleidingsschijf | ||||
| 17 | 339151130 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 18 | 141121680 | 1.56 | 1.89 | |
| Field coil | ||||
| 19 | 311009590 | 60.59 | 73.31 | |
| Self-tap. fill. h. screw | ||||
| 21 | 141119370 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 22 | 141122020 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 23 | 141119850 | 1.56 | 1.89 | |
| Gasket | ||||
| 24 | 339011810 | 1.56 | 1.89 | |
| Tandwielflens compl. | ||||
| 25 | 316045550 | 48.48 | 58.66 | |
| Afstandsbus | ||||
| 28 | 341006090 | 1.56 | 1.89 | |
| Borgschijf | ||||
| 29 | 141181500 | 1.56 | 1.89 | |
| Spindle shaft | ||||
| 30 | 341602980 | 26.95 | 32.61 | |
| Flange nut | ||||
| 31 | 341106900 | 8.89 | 10.76 | |
| Clamping flange | ||||
| 32 | 341031160 | 11.74 | 14.21 | |
| Beschermkap compl. | ||||
| 33 | 316053510 | 60.59 | 73.31 | |
| Screw | ||||
| 34 | 341702050 | 1.56 | 1.89 | |
| Koolborstelhouderdeksel | ||||
| 35 | 343395530 | 1.56 | 1.89 | |
| Koolborstelset,230 V | ||||
| 36 | 316045570 | 13.48 | 16.31 | |
| Koolborstelhouder | ||||
| 37 | 343000950 | 7.22 | 8.74 | |
| Self-tap fill h screw | ||||
| 38 | 141116020 | 1.68 | 2.03 | |
| Handgreep boven/onderdeel | ||||
| 39 | 343395510 | 10.38 | 12.56 | |
| Retaining sheet | ||||
| 40 | 339007320 | 1.68 | 2.03 | |
| Kantenbescherming | ||||
| 41 | 343399800 | 1.56 | 1.89 | |
| Switch with Electronic, 230V | ||||
| 42 | 316045430 | 67.33 | 81.47 | |
| Cable clip | ||||
| 43 | 339127730 | 1.56 | 1.89 | |
| Kabelbescherming | ||||
| 44 | 344094550 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 45 | 344487800 | 16.25 | 19.66 | |
| Motorhuis dennen groen | ||||
| 46 | 315013300 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 47 | 338052740 | |||
| Damper | ||||
| 48 | 343397490 | 8.89 | 10.76 | |
| Locking lever | ||||
| 49 | 343395520 | 1.68 | 2.03 | |
| Pressure spring | ||||
| 50 | 342002170 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 52 | 141116800 | 1.56 | 1.89 | |
| Pin wrench | ||||
| 53 | 344160840 | 5.18 | 6.27 | |
| Afstandsbus | ||||
| 88 | 341006090 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 89 | 141111340 | 1.56 | 1.89 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338505670 | |||
