Here you will find all available parts and drawings of the 'Metabo 18113000 ( WX22230 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

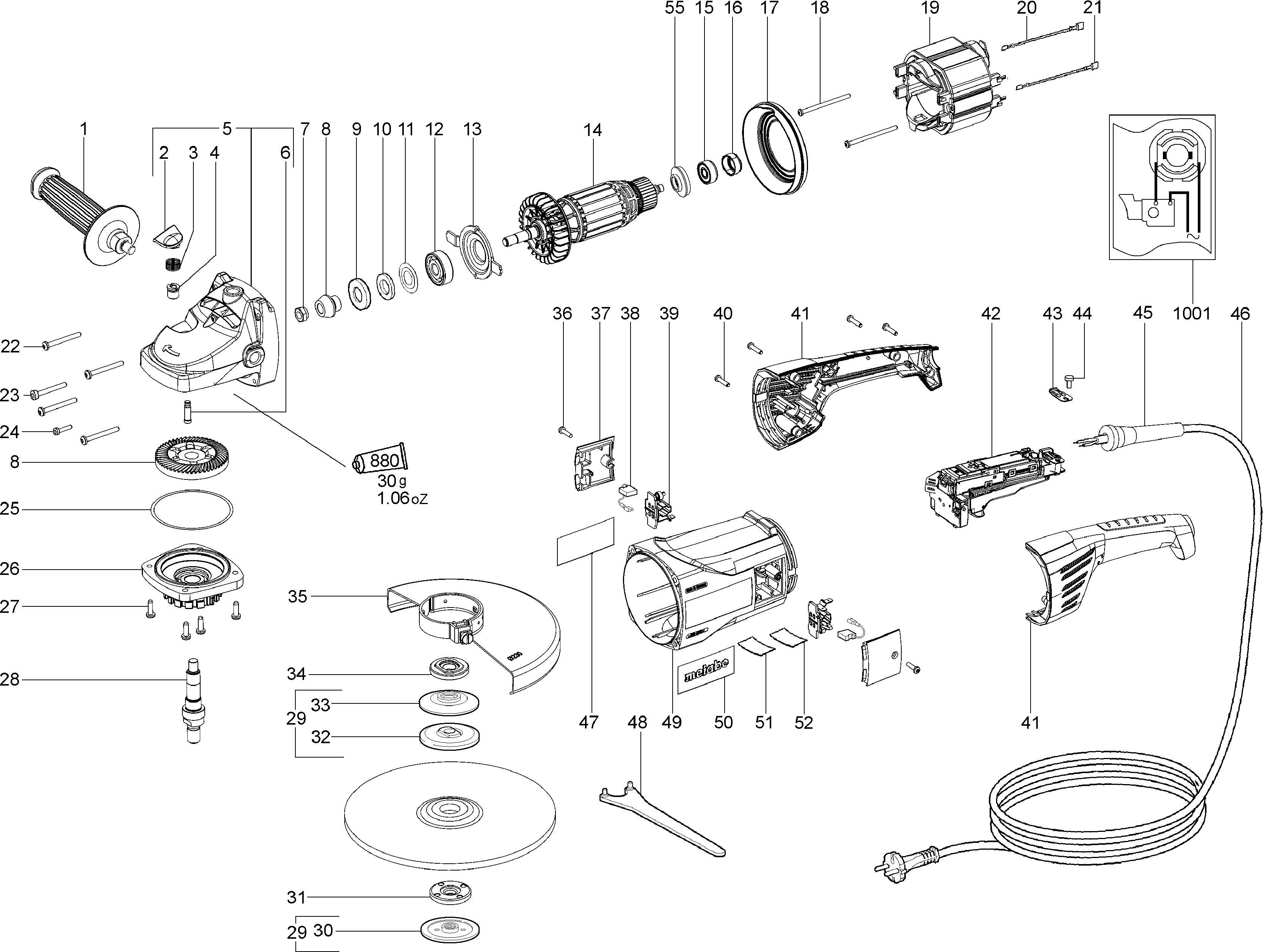

Technical drawing of model Metabo 18113000 ( WX22230 )

Spare parts list of model Metabo 18113000 ( WX22230 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Handgreep compl.
1 314000280 16.25 19.66
Push button
2 343376440 2.28 2.76
Pressure spring
3 342001730 1.55 1.88
Geleidingsbus
4 341003970 3.71 4.49
Tandwielhuis compl.
5 316031720 53.86 65.17
Thrust bolt
6 341513810 1.67 2.02
Zeskantmoer
7 341100660 3.02 3.65
Tandwiel set
8 316045530 53.86 65.17
Afstandsring
9 341011510 5.18 6.27
elt ring
10 143192440 3.02 3.65
Cover washer
11 339070080 1.67 2.02
Kogellager 12x37x12
12 143115230 7.22 8.74
Vaste lagerdeksel
13 339007280 3.02 3.65
Anker compl.
14 316094250 94.12 113.89
No information available, not orderable
15 143113400
No information available, not orderable
16 344094080
Luchtgeleidingsschijf
17 339150950 3.02 3.65
Self-tap. fill. h. screw
18 141121680 1.55 1.88
Field
19 311012600 67.33 81.47
No information available, not orderable
20 399999990
No information available, not orderable
21 399999990
Self-tap. fill. h. screw
22 141119370 1.55 1.88
Fillister head screw
23 141122020 1.55 1.88
Fillister head screw
24 141119850 1.55 1.88
Pakkingring
25 339060140 1.67 2.02
Complete Gear Flange, D 230
26 316047470 24.23 29.32
Fill. head screw(DIN 7985)
27 141121640 1.55 1.88
Spindle
28 341604160 12.23 14.80
No information available, not orderable
29 399999990
No information available, not orderable
30 399999990
Flange nut
31 341106900 8.89 10.76
No information available, not orderable
32 399999990
No information available, not orderable
33 399999990
Clamping flange
34 341031160 11.74 14.21
Protective Cap compl.,D 230
35 316045000 21.64 26.18
Screw
36 341702050 1.55 1.88
Cover Pine Green
37 343376430 1.67 2.02
Koolborstelset 230 V
38 316047480 11.74 14.21
Koolborstelhouder
39 343000770 5.87 7.10
Self-tap fill h screw
40 141116020 1.67 2.02
Handgreep boven/onderdeel
41 343398260 11.74 14.21
Switch Complete, 230V
42 316045410 53.86 65.17
Cable clip
43 339127730 1.55 1.88
Self-tap. fill. h. screw
44 141116800 1.55 1.88
Kabelbescherming
45 344094550 2.28 2.76
Kabel m. CEE-stekker
46 344487800 16.25 19.66
Aanduidingsplaatje
47 338117340 1.55 1.88
Pin wrench
48 344160840 5.18 6.27
Motor housing pine green
49 315012760 21.64 26.18
Metabo plaatje
50 338122080 3.02 3.65
No information available, not orderable
51 338055920
No information available, not orderable
52 399999990
Centrifugeerschijf
55 343435570 1.55 1.88
Tube of grease 100 gr.
880 344130910 13.48 16.31
No information available, not orderable
1001 338505320
