Here you will find all available parts and drawings of the 'Metabo 06407000 (WX21-230QUICK)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

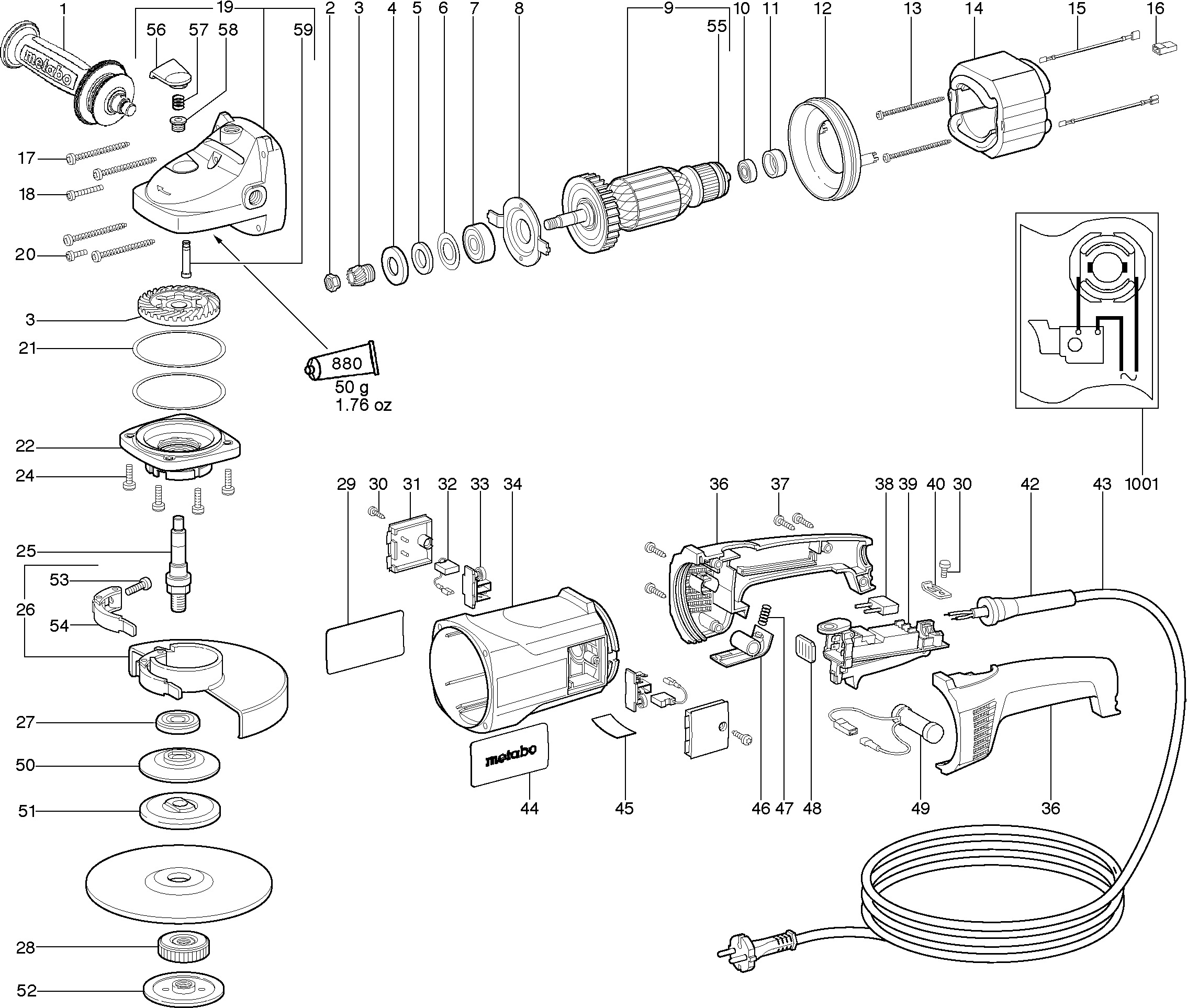

Technical drawing of model Metabo 06407000 (WX21-230QUICK)
Spare parts list of model Metabo 06407000 (WX21-230QUICK)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anti-Vibration Handle, M 14 | ||||
| 1 | 314000960 | 24.23 | 29.32 | |
| Zeskantmoer | ||||
| 2 | 341100660 | 3.02 | 3.65 | |
| Tandwiel set | ||||
| 3 | 316045530 | 53.86 | 65.17 | |
| Afstandsring | ||||
| 4 | 341011510 | 5.18 | 6.27 | |
| elt ring | ||||
| 5 | 143192440 | 3.02 | 3.65 | |
| Cover washer | ||||
| 6 | 339070080 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 7 | 143110670 | |||
| Bearing cover | ||||
| 8 | 339005920 | 2.28 | 2.76 | |
| Armature compl.,230 V | ||||
| 9 | 310009880 | 161.61 | 195.55 | |
| No information available, not orderable | ||||
| 10 | 143113400 | |||
| No information available, not orderable | ||||
| 11 | 344094080 | |||
| Luchtgeleidingsschijf | ||||
| 12 | 339150950 | 3.02 | 3.65 | |
| Self-tap. fill. h. screw | ||||
| 13 | 141121680 | 1.56 | 1.89 | |
| Field coil | ||||
| 14 | 311009590 | 60.59 | 73.31 | |
| Verbindingsdraad | ||||
| 15 | 344493690 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 16 | 142110090 | |||
| Self-tap. fill. h. screw | ||||
| 17 | 141119370 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 18 | 141122020 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 19 | 316031720 | 53.86 | 65.17 | |
| Fillister head screw | ||||
| 20 | 141119850 | 1.56 | 1.89 | |
| Pakkingring | ||||
| 21 | 339060140 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 22 | 316025300 | |||
| Fill. head screw(DIN 7985) | ||||
| 24 | 141121640 | 1.56 | 1.89 | |
| Spindle shaft | ||||
| 25 | 341602980 | 26.95 | 32.61 | |
| No longer available, no replacement | ||||
| 26 | 316022740 | |||
| Clamping flange | ||||
| 27 | 341031160 | 11.74 | 14.21 | |
| Quick nut | ||||
| 28 | 316027620 | 32.27 | 39.05 | |
| Aanduidingsplaatje | ||||
| 29 | 338117340 | 1.56 | 1.89 | |
| Screw | ||||
| 30 | 341702050 | 1.56 | 1.89 | |
| Cover Pine Green | ||||
| 31 | 343376430 | 1.68 | 2.03 | |
| Carbon brush | ||||
| 32 | 316033950 | 16.25 | 19.66 | |
| Koolborstelhouder | ||||
| 33 | 343000770 | 5.87 | 7.10 | |
| Motor housing pine green | ||||
| 34 | 315012760 | 21.64 | 26.18 | |
| No longer available, no replacement | ||||
| 36 | 343368540 | |||
| Self-tap fill h screw | ||||
| 37 | 141116020 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 38 | 343253890 | |||
| No longer available, no replacement | ||||
| 39 | 343404130 | |||
| Cable clip | ||||
| 40 | 339127730 | 1.56 | 1.89 | |
| Kabelbescherming | ||||
| 42 | 344094550 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 43 | 344487800 | 16.25 | 19.66 | |
| No longer available, no replacement | ||||
| 44 | 338115980 | |||
| No information available, not orderable | ||||
| 45 | 338040650 | |||
| Locking lever | ||||
| 46 | 343369570 | 2.28 | 2.76 | |
| Pressure spring | ||||
| 47 | 342002170 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 48 | 344094980 | |||
| Starting resistance | ||||
| 49 | 343253830 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 50 | 399999990 | |||
| No information available, not orderable | ||||
| 51 | 399999990 | |||
| No information available, not orderable | ||||
| 52 | 399999990 | |||
| No information available, not orderable | ||||
| 53 | 141111330 | |||
| No information available, not orderable | ||||
| 54 | 316025450 | |||
| No longer available, no replacement | ||||
| 55 | 343370770 | |||
| Push button | ||||
| 56 | 343376440 | 2.28 | 2.76 | |
| Pressure spring | ||||
| 57 | 342001730 | 1.56 | 1.89 | |
| Geleidingsbus | ||||
| 58 | 341003970 | 3.71 | 4.49 | |
| Thrust bolt | ||||
| 59 | 341513810 | 1.68 | 2.03 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
