Here you will find all available parts and drawings of the 'Metabo 20011000 ( WQ125SP-WQEURO )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

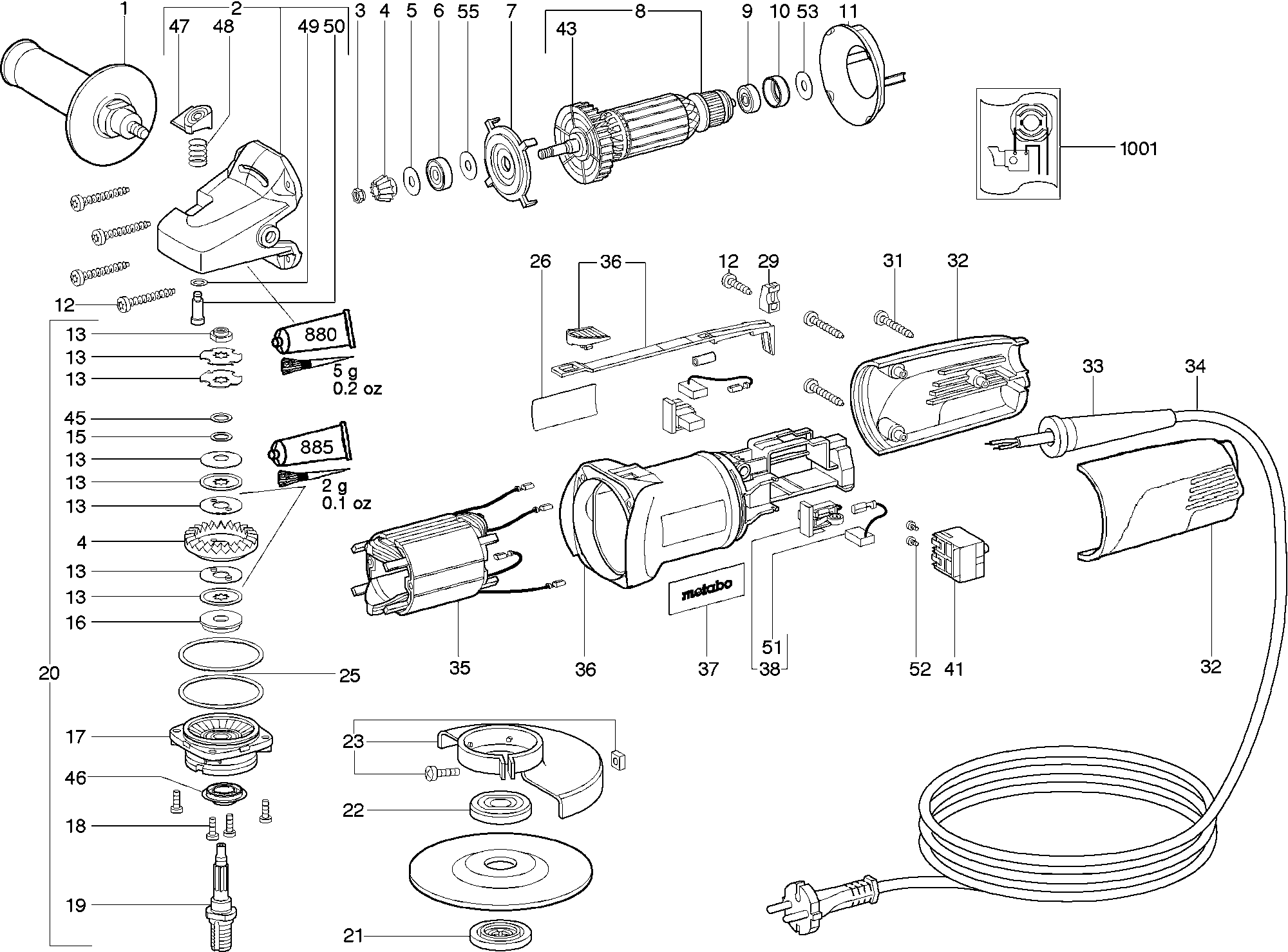

Technical drawing of model Metabo 20011000 ( WQ125SP-WQEURO )
Spare parts list of model Metabo 20011000 ( WQ125SP-WQEURO )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000540 | 11.74 | 14.21 | |
| Tandwielhuis compl. | ||||
| 2 | 316029180 | 48.48 | 58.66 | |
| Zeskantmoer | ||||
| 3 | 341100940 | 1.67 | 2.02 | |
| Tandwiel set | ||||
| 4 | 316029470 | 26.95 | 32.61 | |
| Washer | ||||
| 5 | 339006810 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 6 | 143115180 | |||
| Cover | ||||
| 7 | 343373670 | 2.28 | 2.76 | |
| Anker 230 V | ||||
| 8 | 310007740 | 67.33 | 81.47 | |
| Groefkogellager,6x19x6 | ||||
| 9 | 143115690 | 2.28 | 2.76 | |
| Rubber bus | ||||
| 10 | 344095260 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 11 | 339150890 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 12 | 141116020 | 1.67 | 2.02 | |
| Complete Friction Disc | ||||
| 13 | 316029480 | 11.74 | 14.21 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 15 | 141151120 | 1.55 | 1.88 | |
| Tussenstuk | ||||
| 16 | 341051480 | 2.28 | 2.76 | |
| No longer available, no replacement | ||||
| 17 | 343373420 | |||
| Fillister head screw | ||||
| 18 | 141119860 | 1.67 | 2.02 | |
| Spindle shaft | ||||
| 19 | 341161030 | 21.64 | 26.18 | |
| No information available, not orderable | ||||
| 20 | 316030390 | |||
| Quick clamping nut | ||||
| 21 | 316023660 | 16.25 | 19.66 | |
| Clamping flange | ||||
| 22 | 341031160 | 11.74 | 14.21 | |
| Complete protective cover | ||||
| 23 | 316028230 | 18.80 | 22.75 | |
| Compensating Washer | ||||
| 25 | 339060160 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 26 | 338046640 | |||
| Cable clip | ||||
| 29 | 343362490 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 31 | 141116990 | 1.67 | 2.02 | |
| Engine hood 2-piece black | ||||
| 32 | 343375690 | 5.87 | 7.10 | |
| Kabeldoorvoer | ||||
| 33 | 344100970 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 34 | 344493180 | 21.64 | 26.18 | |
| Field package m.winding,230V | ||||
| 35 | 311010190 | 60.59 | 73.31 | |
| Motorgehaeuse mit Drueckereinheit | ||||
| 36 | 316052200 | 18.80 | 22.75 | |
| No longer available, no replacement | ||||
| 37 | 338122160 | |||
| Koolborstelhouder | ||||
| 38 | 316035480 | 11.74 | 14.21 | |
| Schakelaar | ||||
| 41 | 343406740 | 18.80 | 22.75 | |
| Fan with dust protection | ||||
| 43 | 316031210 | 10.38 | 12.56 | |
| Washer 10.2 X 14.8 X 1.0 | ||||
| 45 | 141155550 | 1.55 | 1.88 | |
| Centrifugeerschijf | ||||
| 46 | 343375540 | 1.55 | 1.88 | |
| Push button, red | ||||
| 47 | 343394190 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 48 | 342001550 | 1.55 | 1.88 | |
| Afdichtring | ||||
| 49 | 339006520 | 1.55 | 1.88 | |
| Bolt | ||||
| 50 | 341513790 | 3.71 | 4.49 | |
| Koolborstel set | ||||
| 51 | 316035510 | 12.23 | 14.80 | |
| Fillister head screw | ||||
| 52 | 141115780 | 1.55 | 1.88 | |
| Washer | ||||
| 53 | 141153340 | 1.55 | 1.88 | |
| Washer | ||||
| 55 | 339132280 | 1.55 | 1.88 | |
| Tube of grease GF 078 100Gr 3,6oz | ||||
| 880 | 344130840 | 13.48 | 16.31 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
