Here you will find all available parts and drawings of the 'Metabo 10035010 ( WQ1100-125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

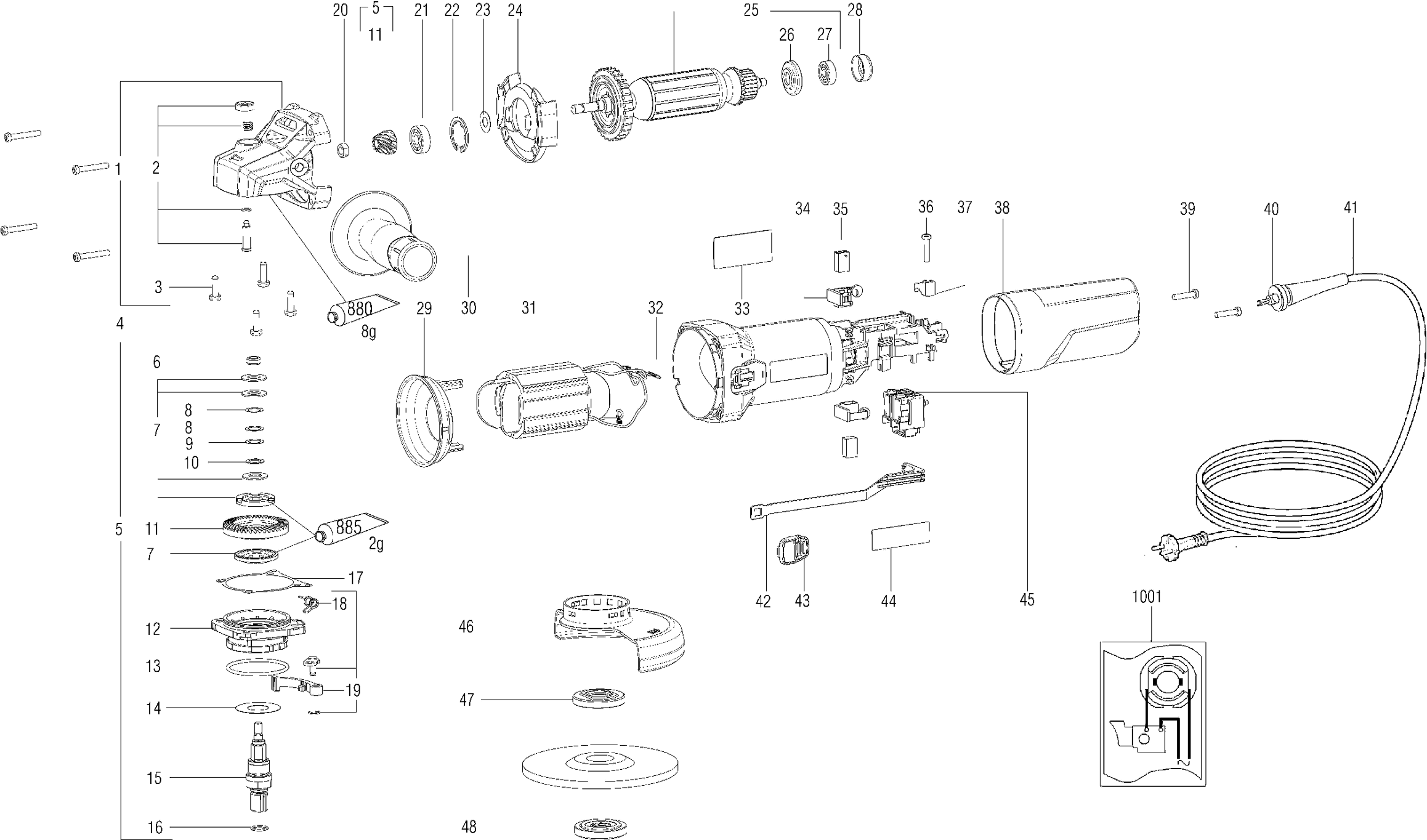

Technical drawing of model Metabo 10035010 ( WQ1100-125 )

Spare parts list of model Metabo 10035010 ( WQ1100-125 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Tandwielhuis compl.
1 316097450 21.64 26.18
Spindle stop compl.
2 316097590 2.28 2.76
Fill. head screw(DIN 7985)
3 141121640 1.56 1.89
Self-tap. fill. h. screw
4 141123940 1.56 1.89
Safety coupling with gear
5 316099040 21.64 26.18
Nut
6 341102460 2.28 2.76
Friction Disc Set Compl.
7 316055080 12.23 14.80
Washer 10.2 X 14.8 X 0.2
8 141151120 1.56 1.89
Washer 10.2 X 14.8 X 0.1
9 141152300 1.68 2.03
Washer 10,2 X 14,8X 0,5
10 141153920 1.56 1.89
Gear set safety clutch
11 316099920 10.38 12.56
Flange OS 400 EQ
12 343450410 5.18 6.27
O-ring
13 143195640 1.56 1.89
Washer
14 339007800 1.56 1.89
Slijpspil M14
15 341604420 12.23 14.80
O-ring
16 143192490 1.68 2.03
Compensating Washer
17 339013140 1.56 1.89
Spring clip
18 342022040 1.56 1.89
Spanhendel compl.
19 316066040 11.74 14.21
Moer zeskant
20 341102660 1.56 1.89
Ball bearing 8x22x7
21 143116270 3.71 4.49
Ball bearing, 8X 22X 7
21 143116020 3.02 3.65
Retaining ring
22 141156650 1.56 1.89
Washer
23 339007940 1.56 1.89
Luchtgeleidingsschijf
24 339153550 1.56 1.89
Anker compl.,230V
25 310012720 43.15 52.21
Centrifugeerschijf
26 343392740 4.51 5.46
Kogellager 6x19x 6
27 143115870 3.71 4.49
Rubber Sleeve
28 344114190 1.56 1.89
Luchtgeleiderschijf
29 339151290 1.56 1.89
Handgreep compl.
30 314000540 11.74 14.21
Field
31 311012800 26.95 32.61
Motor housing
32 315013930 8.89 10.76
Type plate HK 85 EB 230V
33 338070330 2.28 2.76
Koolborstelhouder compl.
34 316097600 10.38 12.56
Koolborstel uitsch.
35 343013000 8.89 10.76
Self-tap fill h screw
36 141116020 1.68 2.03
Cable clip
37 343362490 1.68 2.03
Motor Hood
38 343446470 4.51 5.46
Self-tap. fill. h. screw
39 141118730 1.56 1.89
Kabeldoorvoer
40 343446380 1.56 1.89
Kabel m. CEE-stekker
41 344530000 21.64 26.18
Shifter Rod
42 343446480 1.56 1.89
Schakelschuif
43 343437100 1.56 1.89
Metabo-plaatje
44 338122540 1.56 1.89
Schakelaar 2-polig,X2
45 343410270 10.38 12.56
Wheel Guard,D125
46 339206910 10.38 12.56
Clamping flange
47 341031160 11.74 14.21
Clamping nut compl.,M14
48 316055350 11.74 14.21
Tube of grease 100 gr.
880 344130910 13.48 16.31
Grease Tube 50 gr. SF 011 1,8oz
885 344130560 32.27 39.05
No information available, not orderable
1001 338504470
