Here you will find all available parts and drawings of the 'Metabo 20035001 ( WQ1000 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

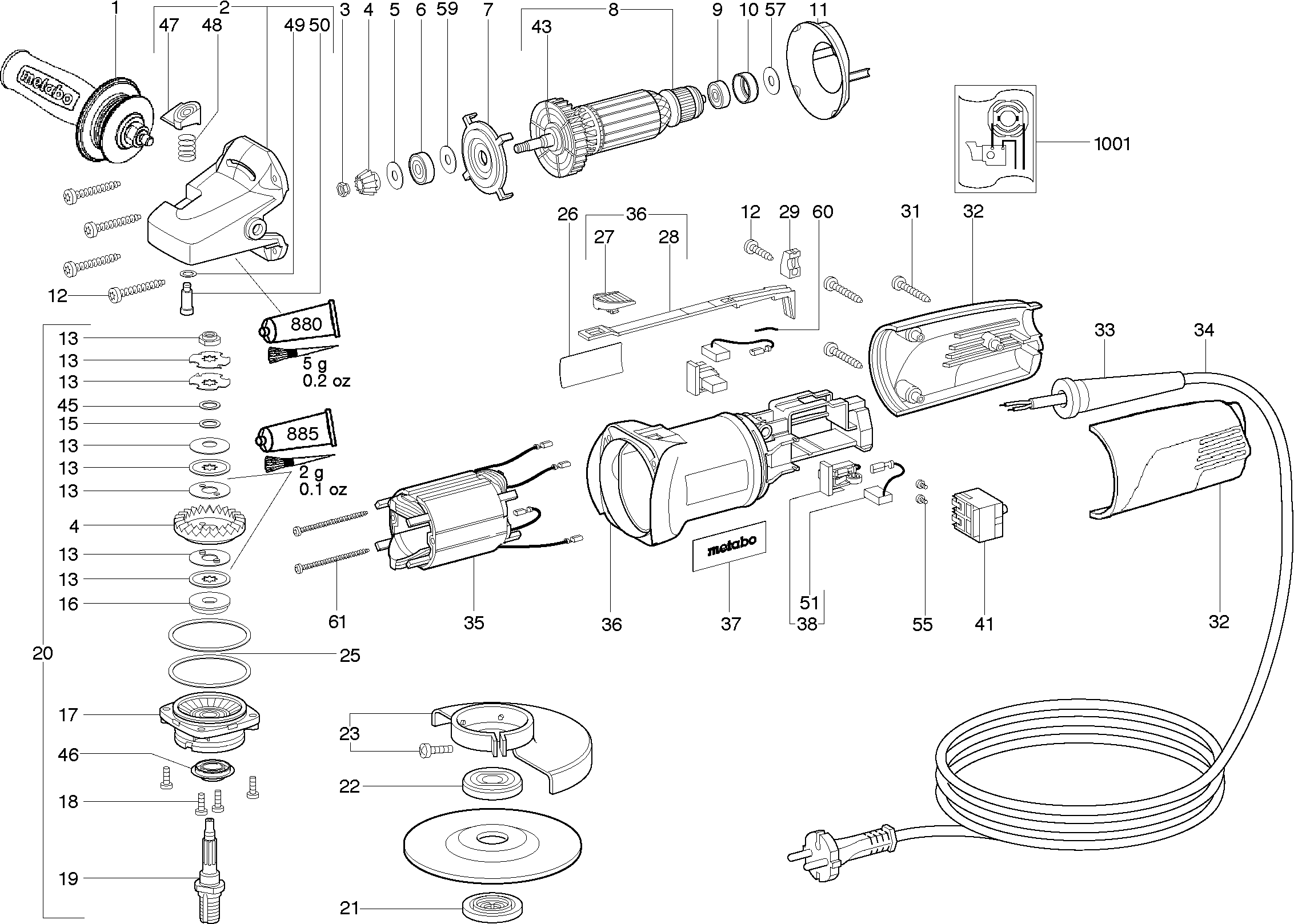

Technical drawing of model Metabo 20035001 ( WQ1000 )
Spare parts list of model Metabo 20035001 ( WQ1000 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anti-Vibration Handle, M 8 | ||||
| 1 | 314000970 | 13.48 | 16.31 | |
| Tandwielhuis compl. | ||||
| 2 | 316029180 | 48.48 | 58.66 | |
| Zeskantmoer | ||||
| 3 | 341100940 | 1.67 | 2.02 | |
| Tandwiel set | ||||
| 4 | 316029470 | 26.95 | 32.61 | |
| Washer,7.05x19.5x0.2 | ||||
| 5 | 339006390 | 1.55 | 1.88 | |
| Groefkogellager,8x22x7 | ||||
| 6 | 143115700 | 3.02 | 3.65 | |
| Cover | ||||
| 7 | 343373670 | 2.28 | 2.76 | |
| Anker 230 V | ||||
| 8 | 310007740 | 67.33 | 81.47 | |
| Groefkogellager,6x19x6 | ||||
| 9 | 143115690 | 2.28 | 2.76 | |
| Rubber bus | ||||
| 10 | 344095260 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 11 | 339150890 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 12 | 141116020 | 1.67 | 2.02 | |
| Complete Friction Disc | ||||
| 13 | 316029480 | 11.74 | 14.21 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 15 | 141151120 | 1.55 | 1.88 | |
| Tussenstuk | ||||
| 16 | 341051480 | 2.28 | 2.76 | |
| Flens compl. | ||||
| 17 | 343377210 | 11.74 | 14.21 | |
| Fillister head screw | ||||
| 18 | 141119860 | 1.67 | 2.02 | |
| Spindle shaft | ||||
| 19 | 341161030 | 21.64 | 26.18 | |
| Veiligheidskoppeling | ||||
| 20 | 316039320 | 74.13 | 89.70 | |
| Quick clamping nut | ||||
| 21 | 316023660 | 16.25 | 19.66 | |
| Clamping flange | ||||
| 22 | 341031160 | 11.74 | 14.21 | |
| Beschermkap compl. | ||||
| 23 | 316046120 | 26.95 | 32.61 | |
| Compensating Washer | ||||
| 25 | 339060160 | 1.67 | 2.02 | |
| Typeplaatje | ||||
| 26 | 338050470 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 27 | 343394180 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 28 | 343391880 | 1.55 | 1.88 | |
| Cable clip | ||||
| 29 | 343362490 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 31 | 141116990 | 1.67 | 2.02 | |
| Engine hood 2-piece black | ||||
| 32 | 343375690 | 5.87 | 7.10 | |
| Kabeldoorvoer | ||||
| 33 | 344100970 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 34 | 344493180 | 21.64 | 26.18 | |
| Field package m.winding,230V | ||||
| 35 | 311010190 | 60.59 | 73.31 | |
| Motorgehaeuse mit Drueckereinheit | ||||
| 36 | 316052200 | 18.80 | 22.75 | |
| No longer available, no replacement | ||||
| 37 | 338122160 | |||
| Koolborstelhouder | ||||
| 38 | 316035480 | 11.74 | 14.21 | |
| Switch,FPCe 230 V | ||||
| 41 | 343411110 | 18.80 | 22.75 | |
| Fan with dust protection | ||||
| 43 | 316031210 | 10.38 | 12.56 | |
| Washer 10.2 X 14.8 X 1.0 | ||||
| 45 | 141155550 | 1.55 | 1.88 | |
| Centrifugeerschijf | ||||
| 46 | 343375540 | 1.55 | 1.88 | |
| Push button, red | ||||
| 47 | 343394190 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 48 | 342001550 | 1.55 | 1.88 | |
| Afdichtring | ||||
| 49 | 339006520 | 1.55 | 1.88 | |
| Bolt | ||||
| 50 | 341513790 | 3.71 | 4.49 | |
| Koolborstel set | ||||
| 51 | 316035510 | 12.23 | 14.80 | |
| Fillister head screw | ||||
| 55 | 141115780 | 1.55 | 1.88 | |
| Washer | ||||
| 57 | 141153340 | 1.55 | 1.88 | |
| Washer | ||||
| 59 | 339132280 | 1.55 | 1.88 | |
| Rubber snoer | ||||
| 60 | 344097440 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 61 | 399999990 | |||
| Tube of grease GF 078 100Gr 3,6oz | ||||
| 880 | 344130840 | 13.48 | 16.31 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338501980 | |||
