Here you will find all available parts and drawings of the 'Metabo 13070420 (WPF18LTX125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

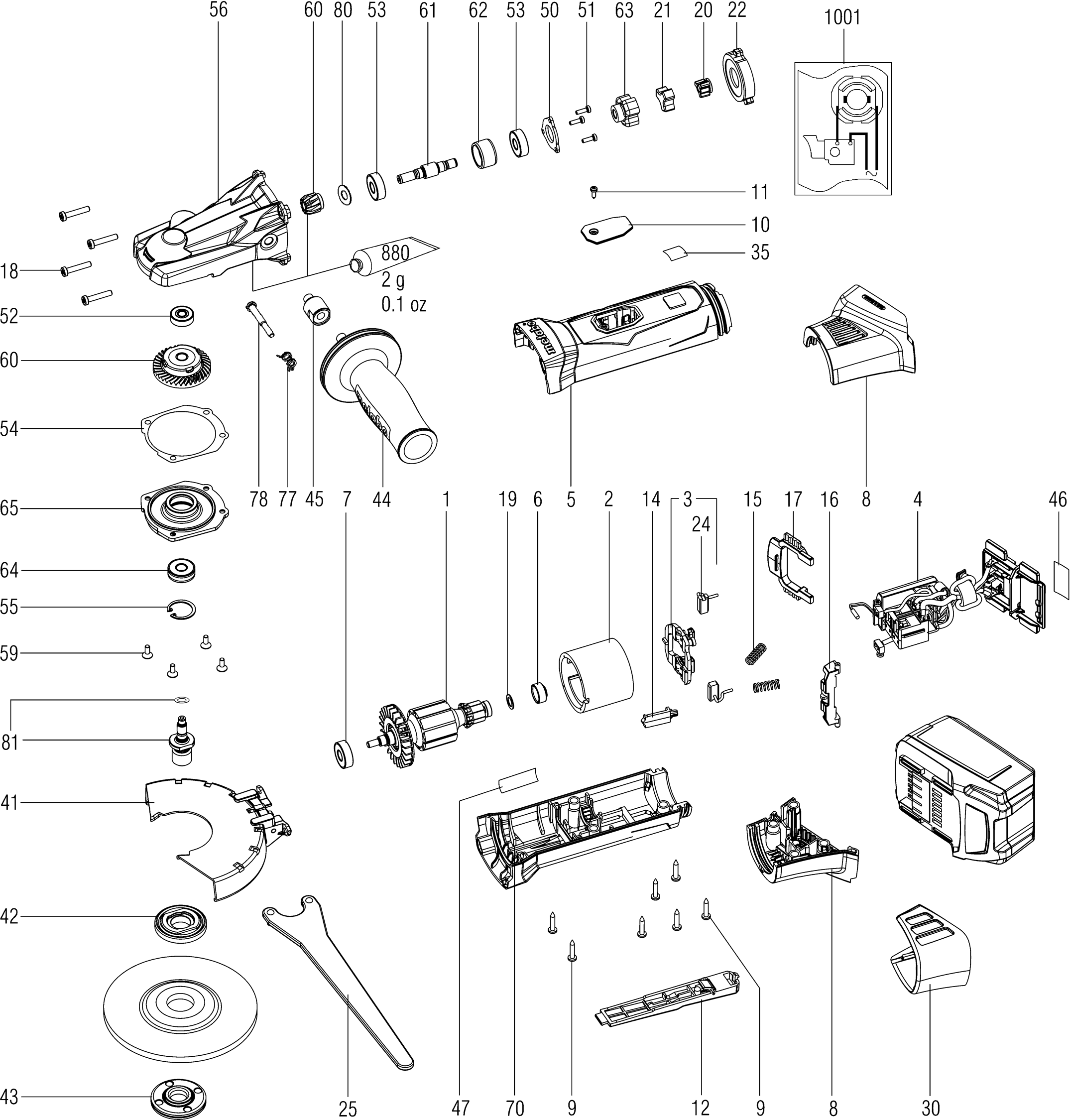

Technical drawing of model Metabo 13070420 (WPF18LTX125)
Spare parts list of model Metabo 13070420 (WPF18LTX125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl. | ||||
| 1 | 310011270 | 37.65 | 45.56 | |
| Field package compl., 2 poles | ||||
| 2 | 311011880 | 53.86 | 65.17 | |
| Carbon brush holder compl., 18 V | ||||
| 3 | 316053210 | 12.23 | 14.80 | |
| Electronic Unit, 18v | ||||
| 4 | 343082750 | 113.82 | 137.72 | |
| Engine cover 2-part | ||||
| 5 | 343435970 | 16.25 | 19.66 | |
| Bus rubber | ||||
| 6 | 344098740 | 1.56 | 1.89 | |
| Ball bearing 8x22x 7 | ||||
| 7 | 143114880 | 3.02 | 3.65 | |
| Housing | ||||
| 8 | 343430690 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 9 | 141113180 | 1.56 | 1.89 | |
| Koolborsteldeksel | ||||
| 10 | 343398600 | 1.56 | 1.89 | |
| Self-tapp. fill. h. screw | ||||
| 11 | 141119900 | 1.56 | 1.89 | |
| Dead-man's switch fully | ||||
| 12 | 343410500 | 5.87 | 7.10 | |
| Steunstift | ||||
| 14 | 343398620 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 15 | 342003030 | 1.56 | 1.89 | |
| Vergrendelstuk | ||||
| 16 | 343430520 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 17 | 343430530 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 18 | 141117060 | 1.68 | 2.03 | |
| Washer | ||||
| 19 | 141152720 | 1.68 | 2.03 | |
| Carrier | ||||
| 20 | 341071110 | 13.48 | 16.31 | |
| Buffer | ||||
| 21 | 344099140 | 2.28 | 2.76 | |
| Lagerflens | ||||
| 22 | 315202620 | 16.25 | 19.66 | |
| Koolborstelset | ||||
| 24 | 316060540 | 10.38 | 12.56 | |
| Pennensleutel | ||||
| 25 | 344163920 | 3.02 | 3.65 | |
| Dust filter | ||||
| 30 | 343398890 | 5.87 | 7.10 | |
| Identification plate | ||||
| 35 | 338129940 | 1.68 | 2.03 | |
| Beschermkap compl. | ||||
| 41 | 316055590 | 32.27 | 39.05 | |
| Clamping flange | ||||
| 42 | 341031290 | 7.22 | 8.74 | |
| Flange nut | ||||
| 43 | 341101480 | 8.89 | 10.76 | |
| Handgreep extra compl. | ||||
| 44 | 316046590 | 8.89 | 10.76 | |
| Distanzelement | ||||
| 45 | 341210700 | 5.18 | 6.27 | |
| Typeplaatje | ||||
| 46 | 338061900 | 1.56 | 1.89 | |
| Indication Plate 56x19 | ||||
| 47 | 338125590 | 1.56 | 1.89 | |
| Lagerdeksel | ||||
| 50 | 315418240 | 1.68 | 2.03 | |
| Lensschroef | ||||
| 51 | 141124260 | 1.56 | 1.89 | |
| Ball bearing 6x19x 6 | ||||
| 52 | 143114790 | 3.71 | 4.49 | |
| Kogellager 8x22x 7 | ||||
| 53 | 143114740 | 11.74 | 14.21 | |
| Groefkogellager,8x22x7 | ||||
| 53 | 143115700 | 3.02 | 3.65 | |
| Compensating washer | ||||
| 54 | 339012160 | 1.56 | 1.89 | |
| Retaining ring | ||||
| 55 | 141180660 | 1.68 | 2.03 | |
| Lock Ring | ||||
| 55 | 141156860 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 56 | 316055700 | 43.15 | 52.21 | |
| Platverzonken schroef | ||||
| 59 | 141122320 | 1.56 | 1.89 | |
| Tandwiel m.pignon | ||||
| 60 | 316055740 | 16.25 | 19.66 | |
| Antriebswelle | ||||
| 61 | 341604480 | 5.18 | 6.27 | |
| Afstandsbus | ||||
| 62 | 341006140 | 5.18 | 6.27 | |
| Carrier | ||||
| 63 | 341071350 | 7.22 | 8.74 | |
| Groove ball bearing,8x22x7 | ||||
| 64 | 143115560 | 5.87 | 7.10 | |
| Flange | ||||
| 65 | 315202970 | 8.89 | 10.76 | |
| Spindle | ||||
| 66 | 341604520 | 24.23 | 29.32 | |
| Two-part Motor Hood | ||||
| 70 | 343437300 | 10.38 | 12.56 | |
| Spring clip | ||||
| 77 | 342022040 | 1.56 | 1.89 | |
| Passchroef | ||||
| 78 | 341701490 | 1.56 | 1.89 | |
| Washer,7.05x19.5x0.2 | ||||
| 80 | 339006390 | 1.56 | 1.89 | |
| Grinding spindle complete, 5/8 | ||||
| 81 | 316069030 | 16.25 | 19.66 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 1001 | 338505280 | |||
