Here you will find all available parts and drawings of the 'Metabo 13101420 ( WPB36LTXBL230 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

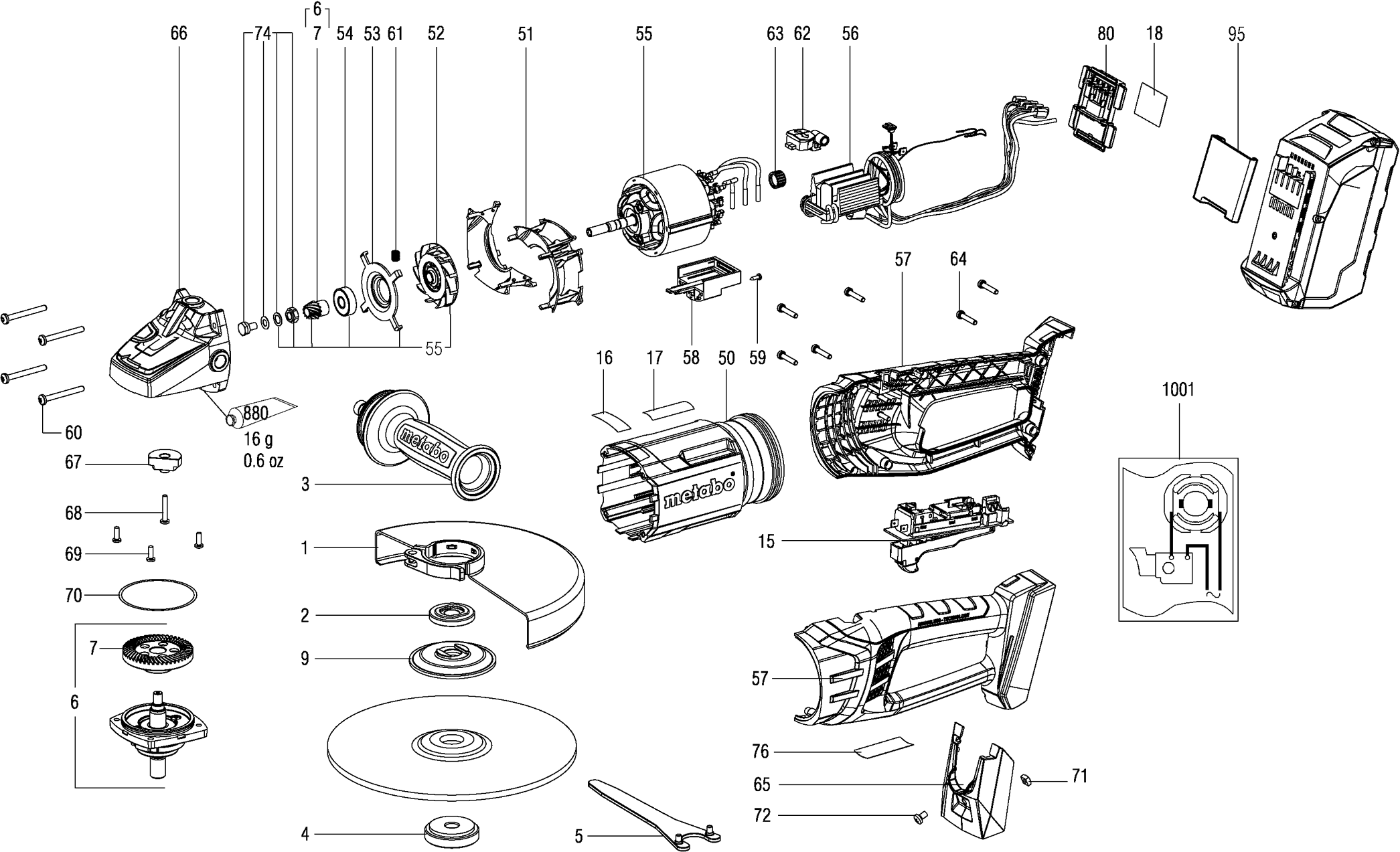

Technical drawing of model Metabo 13101420 ( WPB36LTXBL230 )
Spare parts list of model Metabo 13101420 ( WPB36LTXBL230 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Beschermkap compl. | ||||
| 1 | 316065160 | 32.27 | 39.05 | |
| Clamping flange | ||||
| 2 | 341031290 | 7.22 | 8.74 | |
| Anti-vibration handle, M14 | ||||
| 3 | 314001470 | 32.27 | 39.05 | |
| Flange nut | ||||
| 4 | 341101480 | 8.89 | 10.76 | |
| Pin wrench | ||||
| 5 | 344160840 | 5.18 | 6.27 | |
| Flens compl. | ||||
| 6 | 316063590 | 134.27 | 162.47 | |
| Tandwiel m.pignon | ||||
| 7 | 316049840 | 60.59 | 73.31 | |
| Clamping flange | ||||
| 9 | 341031850 | 21.64 | 26.18 | |
| Schakelaar , | ||||
| 15 | 343411310 | 53.86 | 65.17 | |
| Aanduidingsplaatje | ||||
| 16 | 338127740 | 3.02 | 3.65 | |
| Aanduidingsplaatje,Features | ||||
| 17 | 338127520 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 18 | 338066560 | 1.55 | 1.88 | |
| Motor Housing | ||||
| 50 | 315013780 | 12.23 | 14.80 | |
| Luchtgeleidingsschijf | ||||
| 51 | 343438540 | 5.18 | 6.27 | |
| Waaier compl. | ||||
| 52 | 330002290 | 3.71 | 4.49 | |
| Lagerklemdeksel | ||||
| 53 | 339130880 | 3.02 | 3.65 | |
| Kogellager 9x26x 8 | ||||
| 54 | 143114990 | 13.48 | 16.31 | |
| Motor compl.,36 V | ||||
| 55 | 316065990 | 539.38 | 652.65 | |
| Electro unit,36 V | ||||
| 56 | 343085240 | 134.27 | 162.47 | |
| Handgreep 2-delig | ||||
| 57 | 343438560 | 43.15 | 52.21 | |
| Holder | ||||
| 58 | 343438720 | 4.51 | 5.46 | |
| Self-tapp. fill. h. screw | ||||
| 59 | 141119900 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 60 | 141120560 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 61 | 342004070 | 1.55 | 1.88 | |
| Vastzetknop | ||||
| 62 | 343438570 | 5.18 | 6.27 | |
| Cover | ||||
| 63 | 343438590 | 3.02 | 3.65 | |
| Self-tap. fill. h. screw | ||||
| 64 | 141117060 | 1.67 | 2.02 | |
| Spark protector | ||||
| 65 | 315419660 | 21.64 | 26.18 | |
| Tandwielhuis compl. | ||||
| 66 | 316063190 | 67.33 | 81.47 | |
| Guide Ring | ||||
| 67 | 341212240 | 8.89 | 10.76 | |
| Lensschroef | ||||
| 68 | 141124100 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 69 | 141119860 | 1.67 | 2.02 | |
| Compensating Washer | ||||
| 70 | 339060320 | 1.67 | 2.02 | |
| Vierkante moer | ||||
| 71 | 141130660 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 72 | 141110580 | 1.55 | 1.88 | |
| Bevestigingsset | ||||
| 74 | 316066000 | 13.48 | 16.31 | |
| Indication Plate 52x22 | ||||
| 76 | 338122090 | 1.55 | 1.88 | |
| Kontaktstifttraeger | ||||
| 80 | 343439740 | 26.95 | 32.61 | |
| Cover cap | ||||
| 95 | 343439680 | 1.55 | 1.88 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 1001 | 338506070 | |||
