Here you will find all available parts and drawings of the 'Metabo 00384000 (WP9-125Quick)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

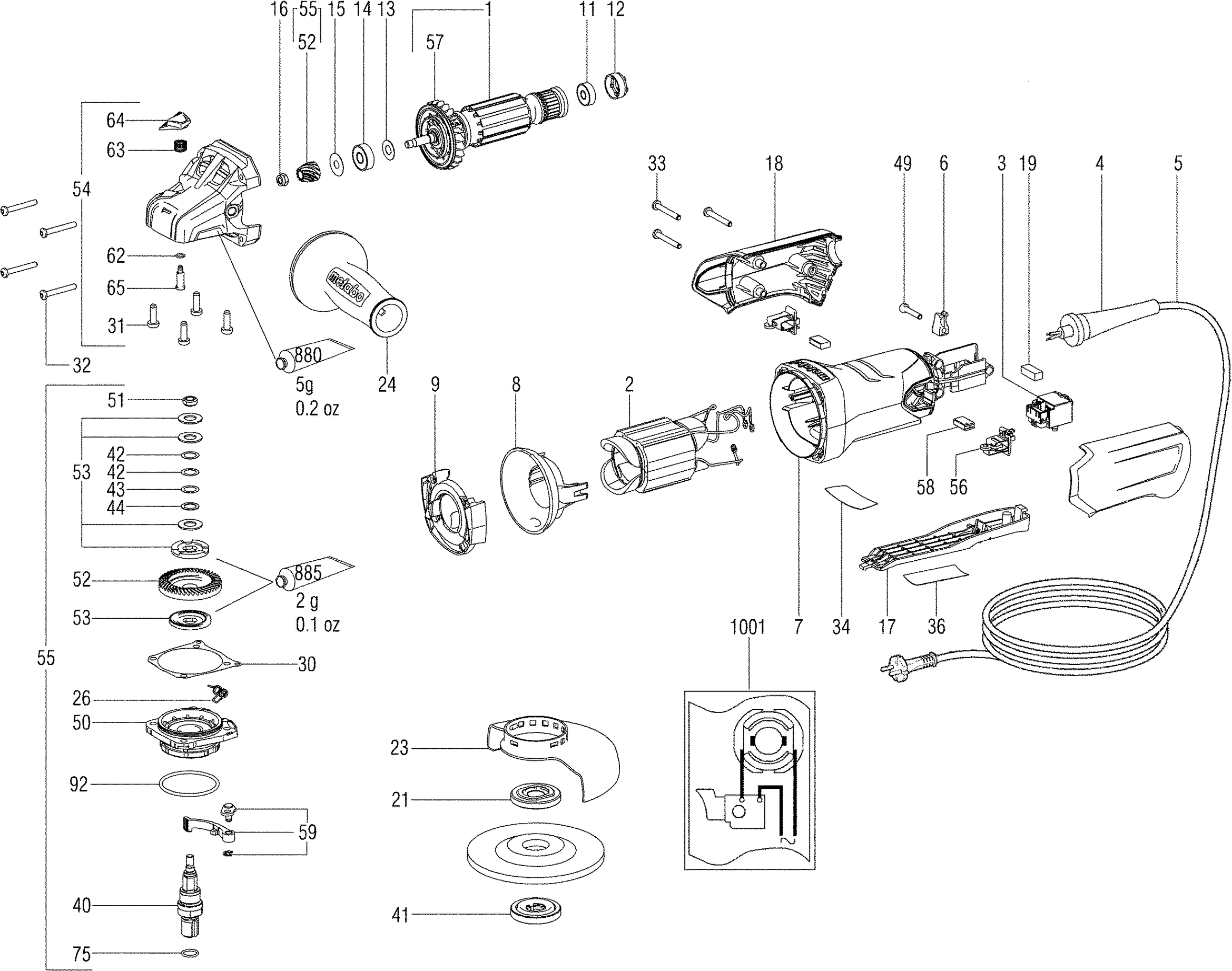

Technical drawing of model Metabo 00384000 (WP9-125Quick)
Spare parts list of model Metabo 00384000 (WP9-125Quick)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310010920 | 53.86 | 65.17 | |
| Field | ||||
| 2 | 311012930 | 26.95 | 32.61 | |
| Schakelaar 2-polig,X2 | ||||
| 3 | 343410250 | 7.22 | 8.74 | |
| Kabeldoorvoer | ||||
| 4 | 344100970 | 1.68 | 2.03 | |
| Kabel m. CEE-stekker | ||||
| 5 | 344493180 | 21.64 | 26.18 | |
| Cable clip | ||||
| 6 | 343362490 | 1.68 | 2.03 | |
| Motor housing | ||||
| 7 | 315013580 | 10.38 | 12.56 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151190 | 1.56 | 1.89 | |
| Luchtgeleidingsschijf | ||||
| 9 | 339151200 | 1.56 | 1.89 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.56 | 1.89 | |
| Washer,8.05x17x0.4 | ||||
| 13 | 339133060 | 1.56 | 1.89 | |
| Groefkogellager,8x22x7 | ||||
| 14 | 143115700 | 3.02 | 3.65 | |
| Washer,7.05x19.5x0.2 | ||||
| 15 | 339006390 | 1.56 | 1.89 | |
| Zeskantmoer | ||||
| 16 | 341100940 | 1.68 | 2.03 | |
| Schakelhendel compl. | ||||
| 17 | 316053960 | 5.18 | 6.27 | |
| Two-part engine hood, black | ||||
| 18 | 316070240 | 11.74 | 14.21 | |
| Motor cap 2 parts black | ||||
| 18 | 343433940 | 7.22 | 8.74 | |
| Schuimrubber zelfklevend,20 x 8 x 6,35 | ||||
| 19 | 344101400 | 1.56 | 1.89 | |
| Clamping flange | ||||
| 21 | 341031160 | 11.74 | 14.21 | |
| Beschermkap,D125 | ||||
| 23 | 339204500 | 8.89 | 10.76 | |
| Handgreep extra compl. | ||||
| 24 | 316046590 | 8.89 | 10.76 | |
| Spring clip | ||||
| 26 | 342022490 | 1.56 | 1.89 | |
| Gasket | ||||
| 30 | 339012430 | 1.56 | 1.89 | |
| Fill. head screw(DIN 7985) | ||||
| 31 | 141121640 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 32 | 141116980 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 33 | 141116980 | 1.56 | 1.89 | |
| Typeplaatje | ||||
| 34 | 338059840 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 36 | 399999990 | |||
| Slijpspil M14 | ||||
| 40 | 341604420 | 12.23 | 14.80 | |
| Clamping nut compl.,M14 | ||||
| 41 | 316055350 | 11.74 | 14.21 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 42 | 141151120 | 1.56 | 1.89 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 43 | 141152300 | 1.68 | 2.03 | |
| Washer 10,2 X 14,8X 0,5 | ||||
| 44 | 141153920 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 49 | 141117060 | 1.68 | 2.03 | |
| Flens compl. | ||||
| 50 | 343433280 | 8.89 | 10.76 | |
| Nut | ||||
| 51 | 341102460 | 2.28 | 2.76 | |
| Schotelwiel m.Tandwiel | ||||
| 52 | 316054960 | 13.48 | 16.31 | |
| Friction Disc Set Compl. | ||||
| 53 | 316055080 | 12.23 | 14.80 | |
| Tandwielhuis compl. | ||||
| 54 | 316055100 | 48.48 | 58.66 | |
| Veiligheidskoppeling m.Tandwiel | ||||
| 55 | 316054220 | 74.13 | 89.70 | |
| Carbon Brush Holder Compl. | ||||
| 56 | 316055230 | 12.23 | 14.80 | |
| Waaier m. Stofbeschermkorf | ||||
| 57 | 316054860 | 3.71 | 4.49 | |
| Koolborstelset uitsch. | ||||
| 58 | 316055190 | 10.38 | 12.56 | |
| Spanhendel compl. | ||||
| 59 | 316066040 | 11.74 | 14.21 | |
| O-Ring | ||||
| 62 | 143196000 | 1.56 | 1.89 | |
| O-ring | ||||
| 62 | 143193650 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 63 | 342003390 | 1.56 | 1.89 | |
| Push button | ||||
| 64 | 343433130 | 1.56 | 1.89 | |
| Bolt | ||||
| 65 | 341515640 | 1.56 | 1.89 | |
| O-ring | ||||
| 75 | 143192490 | 1.68 | 2.03 | |
| O-ring | ||||
| 92 | 143195640 | 1.56 | 1.89 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338505940 | |||
