Here you will find all available parts and drawings of the 'Metabo 13073420 ( WP18LTX150 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

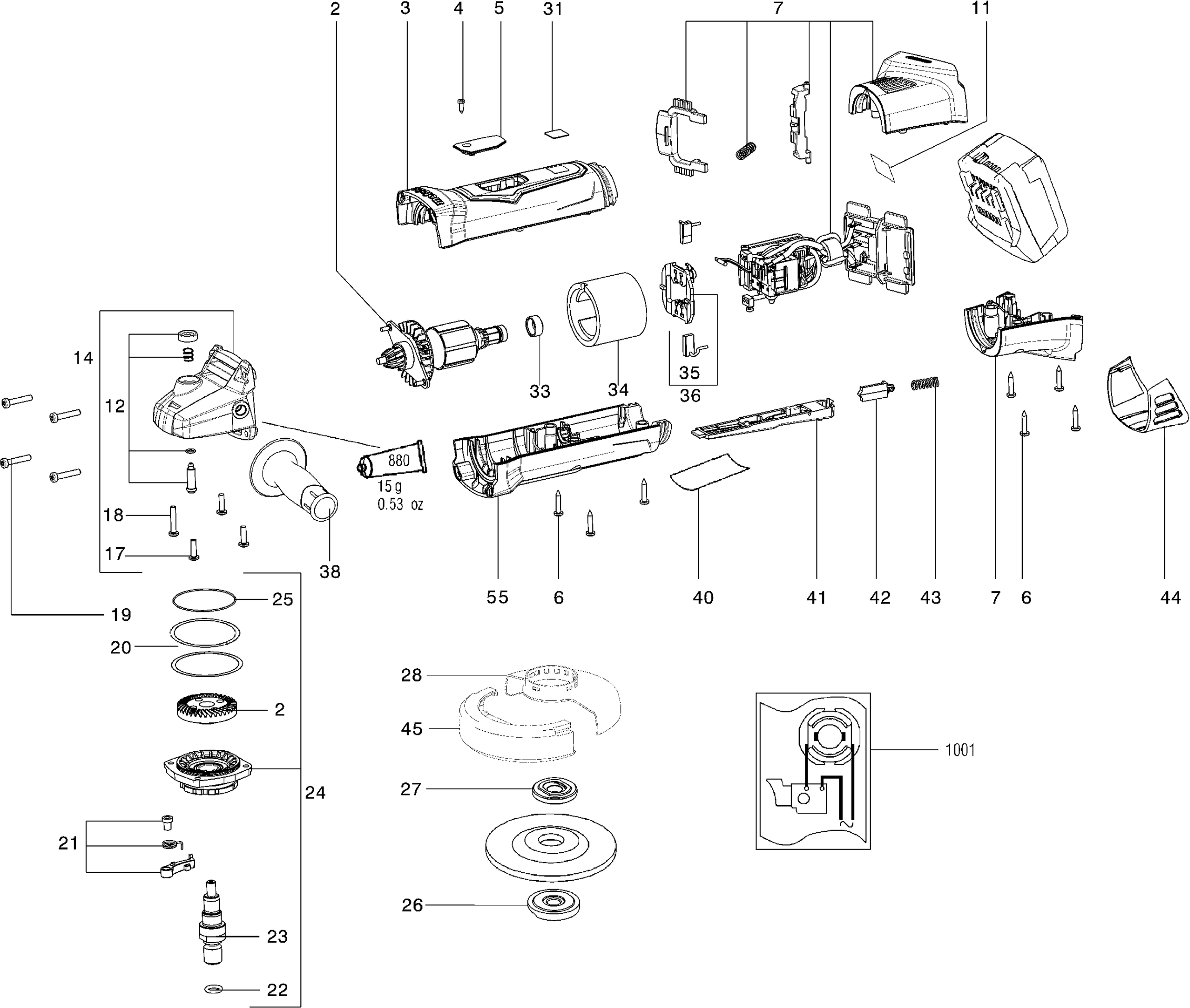

Technical drawing of model Metabo 13073420 ( WP18LTX150 )
Spare parts list of model Metabo 13073420 ( WP18LTX150 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl. | ||||
| 2 | 310011260 | 80.81 | 97.78 | |
| Engine cover 2-part | ||||
| 3 | 343435970 | 16.25 | 19.66 | |
| Self-tapp. fill. h. screw | ||||
| 4 | 141119900 | 1.55 | 1.88 | |
| Koolborsteldeksel | ||||
| 5 | 343398600 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 6 | 141113180 | 1.55 | 1.88 | |
| Huis compl. | ||||
| 7 | 316049680 | 100.74 | 121.90 | |
| No information available, not orderable | ||||
| 11 | 338062000 | |||
| Spindle stop compl. | ||||
| 12 | 316040610 | 3.02 | 3.65 | |
| Tandwielhuis compl. | ||||
| 14 | 316046070 | 24.23 | 29.32 | |
| Fill. head screw | ||||
| 17 | 141120070 | 1.55 | 1.88 | |
| Lensschroef | ||||
| 18 | 141123920 | 1.55 | 1.88 | |
| Self-tap fill h screw | ||||
| 19 | 141116020 | 1.67 | 2.02 | |
| Compensating Washer | ||||
| 20 | 339060160 | 1.67 | 2.02 | |
| Spanhendel compl. | ||||
| 21 | 316047590 | 12.23 | 14.80 | |
| O-ring | ||||
| 22 | 143193920 | 5.87 | 7.10 | |
| Spil tandwiel | ||||
| 23 | 341161160 | 5.87 | 7.10 | |
| Flens compl. | ||||
| 24 | 315202860 | 161.61 | 195.55 | |
| O-ring 48 x 1 | ||||
| 25 | 344097550 | 1.55 | 1.88 | |
| Flange nut | ||||
| 26 | 341101480 | 8.89 | 10.76 | |
| Clamping flange | ||||
| 27 | 341031290 | 7.22 | 8.74 | |
| Beschermkap,D 150 | ||||
| 28 | 339204450 | 18.80 | 22.75 | |
| Identification plate | ||||
| 31 | 338129940 | 1.67 | 2.02 | |
| Indicator label | ||||
| 31 | 338124500 | 1.55 | 1.88 | |
| Bus rubber | ||||
| 33 | 344098740 | 1.55 | 1.88 | |
| Field package compl., 2 poles | ||||
| 34 | 311011880 | 53.86 | 65.17 | |
| Koolborstelset | ||||
| 35 | 316060540 | 10.38 | 12.56 | |
| Carbon brush holder compl., 18 V | ||||
| 36 | 316053210 | 12.23 | 14.80 | |
| Handgreep extra compl. | ||||
| 38 | 316046590 | 8.89 | 10.76 | |
| Indication Plate 56x19 | ||||
| 40 | 338125590 | 1.55 | 1.88 | |
| Dead-man's switch fully | ||||
| 41 | 343410500 | 5.87 | 7.10 | |
| Steunstift | ||||
| 42 | 343398620 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 43 | 342003030 | 1.55 | 1.88 | |
| Dust filter | ||||
| 44 | 343398890 | 5.87 | 7.10 | |
| Zaagbeschermkap met clipbevestiging 150 | ||||
| 45 | 630353000 | 5.69 | 6.88 | |
| Two-part Motor Hood | ||||
| 55 | 343437300 | 10.38 | 12.56 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
