Here you will find all available parts and drawings of the 'Metabo 13080000 (WEVF10-125QuickInox)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

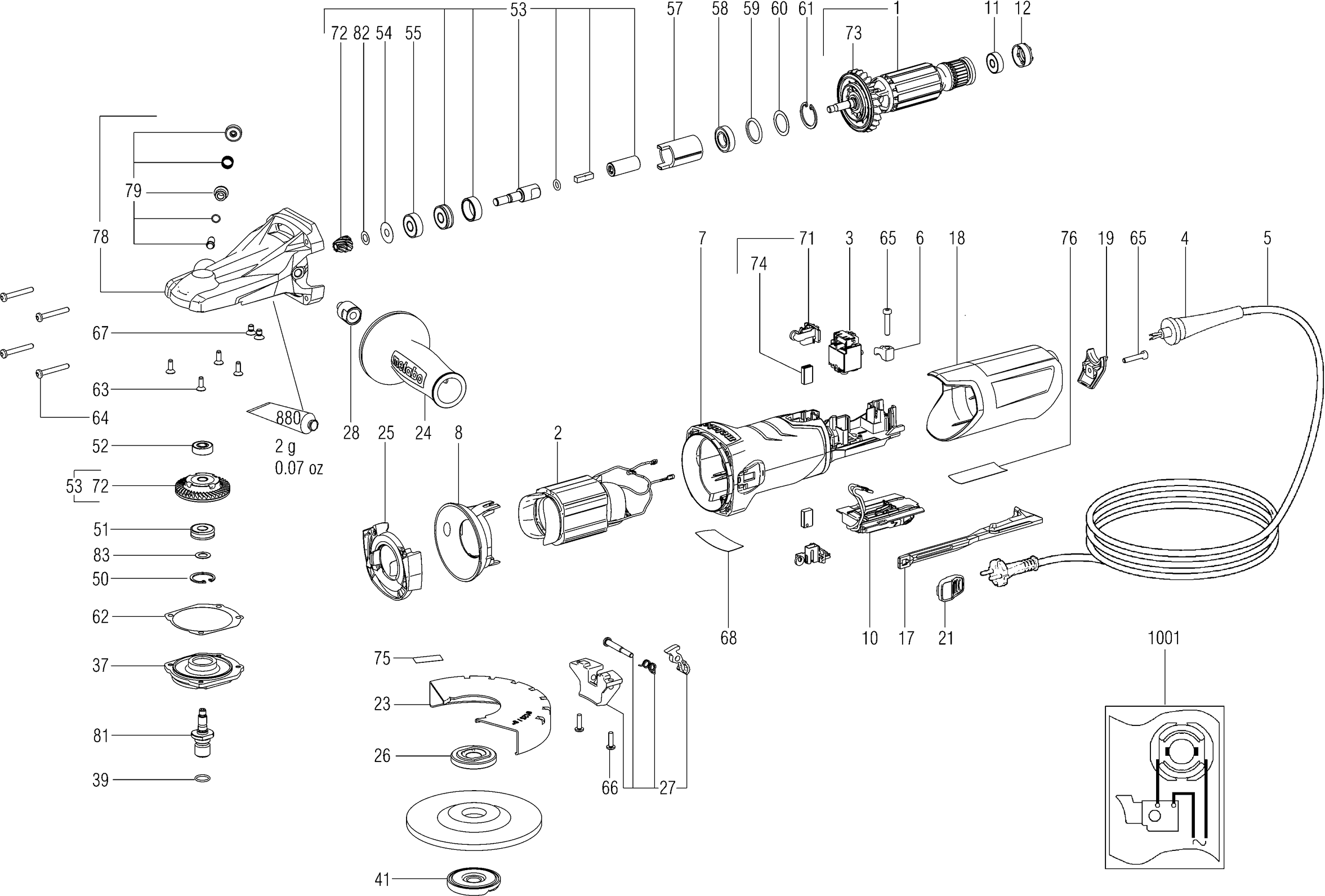

Technical drawing of model Metabo 13080000 (WEVF10-125QuickInox)
Spare parts list of model Metabo 13080000 (WEVF10-125QuickInox)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310010930 | 53.86 | 65.17 | |
| Field | ||||
| 2 | 311011930 | 37.65 | 45.56 | |
| Schakelaar 1-polig,X2 | ||||
| 3 | 343410240 | 5.18 | 6.27 | |
| Kabeldoorvoer | ||||
| 4 | 344100970 | 1.68 | 2.03 | |
| Kabel m.CEE-stekker | ||||
| 5 | 344499530 | 13.48 | 16.31 | |
| Cable clip | ||||
| 6 | 343362490 | 1.68 | 2.03 | |
| Motor housing | ||||
| 7 | 315013530 | 8.89 | 10.76 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151190 | 1.56 | 1.89 | |
| Elektro.unit,230V 50/60Hz | ||||
| 10 | 343084760 | 32.27 | 39.05 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 17 | 343433080 | 1.56 | 1.89 | |
| Cap | ||||
| 18 | 343433040 | 3.71 | 4.49 | |
| End cap | ||||
| 19 | 343433100 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 21 | 343437100 | 1.56 | 1.89 | |
| Beschermkap,D 125 | ||||
| 23 | 339204610 | 43.15 | 52.21 | |
| Handgreep extra compl. | ||||
| 24 | 316046590 | 8.89 | 10.76 | |
| Luchtgeleidingsschijf | ||||
| 25 | 339151200 | 1.56 | 1.89 | |
| Clamping flange | ||||
| 26 | 341031160 | 11.74 | 14.21 | |
| Opname compl.,D125 | ||||
| 27 | 316061240 | 26.95 | 32.61 | |
| Distanzelement | ||||
| 28 | 341210700 | 5.18 | 6.27 | |
| Flange | ||||
| 37 | 315203030 | 8.89 | 10.76 | |
| Spindle,M14 | ||||
| 38 | 341605040 | 12.23 | 14.80 | |
| O-ring | ||||
| 39 | 143192490 | 1.68 | 2.03 | |
| Quick-moer,M14 | ||||
| 41 | 316064680 | 11.74 | 14.21 | |
| Retaining ring | ||||
| 50 | 141156650 | 1.56 | 1.89 | |
| Groove ball bearing,8x22x7 | ||||
| 51 | 143115560 | 5.87 | 7.10 | |
| Ball bearing 6x19x 6 | ||||
| 52 | 143114790 | 3.71 | 4.49 | |
| Tussenas compl. | ||||
| 53 | 316067010 | 107.70 | 130.32 | |
| Washer,7.05x19.5x0.2 | ||||
| 54 | 339006390 | 1.56 | 1.89 | |
| Kogellager 8x22x 7 | ||||
| 55 | 143114740 | 11.74 | 14.21 | |
| Afstandshuls | ||||
| 57 | 341071640 | 7.22 | 8.74 | |
| Deep groove ball bearing,12x24x6 | ||||
| 58 | 143115270 | 10.38 | 12.56 | |
| Ball bearing pressure disc | ||||
| 59 | 301070100 | 1.56 | 1.89 | |
| Compensating washer | ||||
| 60 | 143115490 | 1.56 | 1.89 | |
| Retaining ring | ||||
| 61 | 141181010 | 1.56 | 1.89 | |
| Compensating washer | ||||
| 62 | 339012160 | 1.56 | 1.89 | |
| Platverzonken schroef | ||||
| 63 | 141120200 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 64 | 141116980 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 65 | 141117060 | 1.68 | 2.03 | |
| Lensschroef | ||||
| 66 | 141124090 | 1.56 | 1.89 | |
| Platverzonken schroef | ||||
| 67 | 141121710 | 1.56 | 1.89 | |
| Typeplaatje | ||||
| 68 | 338064520 | 1.56 | 1.89 | |
| Carbon Brush Holder Compl. | ||||
| 71 | 316055230 | 12.23 | 14.80 | |
| Dish wheel with gear, stainless | ||||
| 72 | 316061970 | 53.86 | 65.17 | |
| Waaier m. Stofbeschermkorf | ||||
| 73 | 316054860 | 3.71 | 4.49 | |
| Koolborstelset uitsch. | ||||
| 74 | 316055190 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 75 | 399999990 | |||
| No information available, not orderable | ||||
| 76 | 399999990 | |||
| Tandwielhuis compl. | ||||
| 78 | 316062330 | 67.33 | 81.47 | |
| Spilblokkering compl. | ||||
| 79 | 316062340 | 13.48 | 16.31 | |
| Grinding spindle complete, M14 | ||||
| 81 | 316069020 | 16.25 | 19.66 | |
| Washer | ||||
| 82 | 339006810 | 1.56 | 1.89 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 1001 | 338505690 | |||
