Here you will find all available parts and drawings of the 'Metabo 00517000 (WEV17-125QuickInox)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

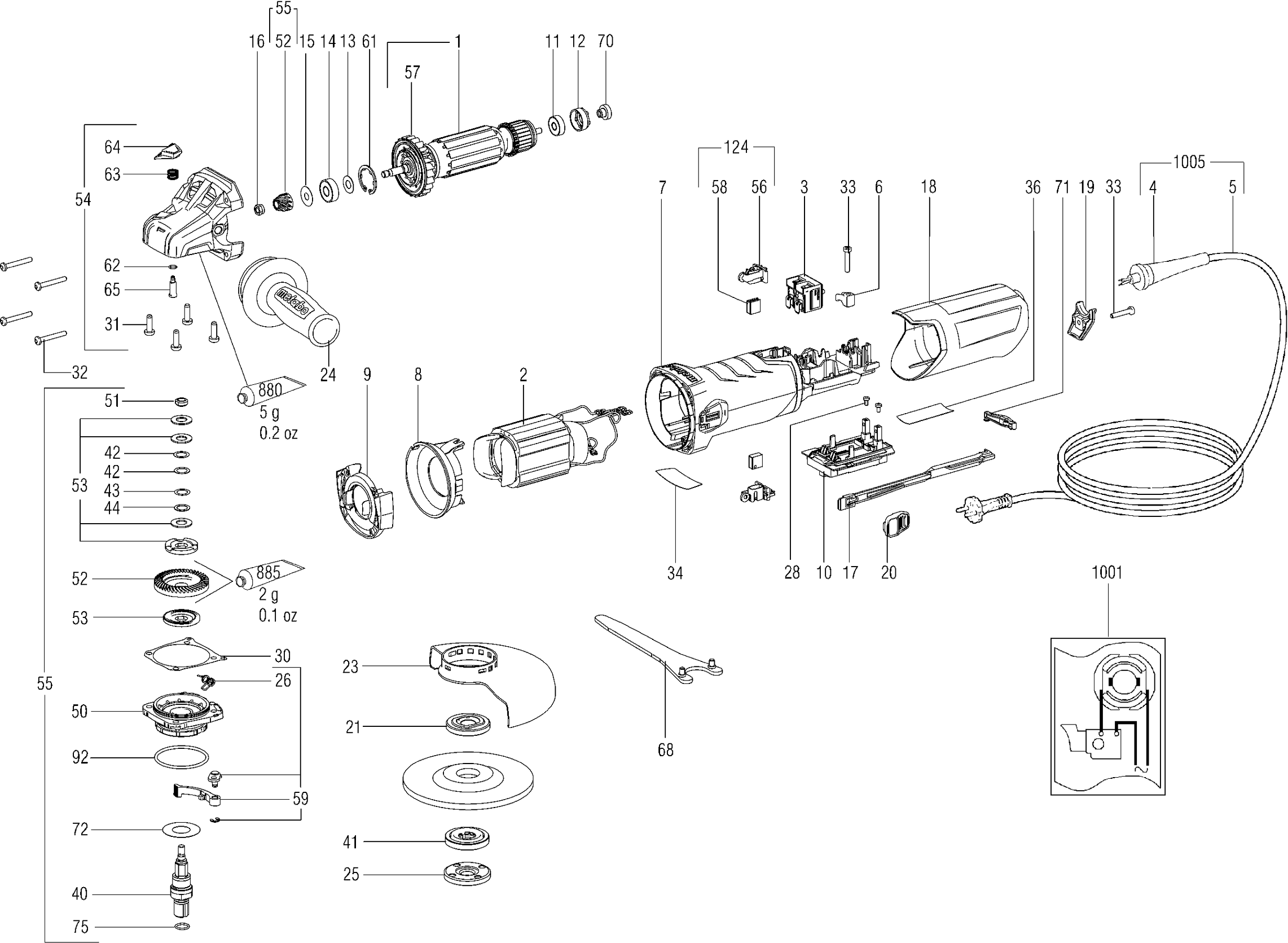

Technical drawing of model Metabo 00517000 (WEV17-125QuickInox)
Spare parts list of model Metabo 00517000 (WEV17-125QuickInox)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310011080 | 74.13 | 89.70 | |
| Field | ||||
| 2 | 311012980 | 37.65 | 45.56 | |
| Schakelaar 2-polig | ||||
| 3 | 343410120 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 4 | 399999990 | |||
| No information available, not orderable | ||||
| 5 | 399999990 | |||
| Cable clip | ||||
| 6 | 343362490 | 1.68 | 2.03 | |
| Motor housing 2 part | ||||
| 7 | 315013520 | 10.38 | 12.56 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151180 | 1.56 | 1.89 | |
| Luchtgeleidingsschijf | ||||
| 9 | 339151200 | 1.56 | 1.89 | |
| Elektro.unit,230V 50/60Hz | ||||
| 10 | 343082890 | 43.15 | 52.21 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.56 | 1.89 | |
| Washer,8.05x17x0.4 | ||||
| 13 | 339133060 | 1.56 | 1.89 | |
| Groefkogellager,8x22x7 | ||||
| 14 | 143115700 | 3.02 | 3.65 | |
| Washer,7.05x19.5x0.2 | ||||
| 15 | 339006390 | 1.56 | 1.89 | |
| Zeskantmoer | ||||
| 16 | 341102260 | 2.28 | 2.76 | |
| Schakelstang | ||||
| 17 | 343433070 | 1.56 | 1.89 | |
| Cap | ||||
| 18 | 343433030 | 3.71 | 4.49 | |
| End cap | ||||
| 19 | 343433100 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 20 | 343437100 | 1.56 | 1.89 | |
| Clamping flange | ||||
| 21 | 341031160 | 11.74 | 14.21 | |
| Beschermkap,D125 | ||||
| 23 | 339204500 | 8.89 | 10.76 | |
| Anti-Vibration Handle, M 8 | ||||
| 24 | 314000970 | 13.48 | 16.31 | |
| Flange nut | ||||
| 25 | 341106900 | 8.89 | 10.76 | |
| Spring clip | ||||
| 26 | 342022490 | 1.56 | 1.89 | |
| Fill. head screw(DIN 7985) | ||||
| 28 | 141121430 | 1.56 | 1.89 | |
| Gasket | ||||
| 30 | 339012430 | 1.56 | 1.89 | |
| Fill. head screw(DIN 7985) | ||||
| 31 | 141121640 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 32 | 141116980 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 33 | 141117060 | 1.68 | 2.03 | |
| Type Plate, Features WE 15-125 IP | ||||
| 34 | 338072380 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 36 | 399999990 | |||
| Slijpspil M14 | ||||
| 40 | 341604420 | 12.23 | 14.80 | |
| Clamping nut compl.,M14 | ||||
| 41 | 316055350 | 11.74 | 14.21 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 42 | 141151120 | 1.56 | 1.89 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 43 | 141152300 | 1.68 | 2.03 | |
| Washer 10,2 X 14,8X 0,5 | ||||
| 44 | 141153920 | 1.56 | 1.89 | |
| Flens compl. | ||||
| 50 | 343433280 | 8.89 | 10.76 | |
| Nut | ||||
| 51 | 341102460 | 2.28 | 2.76 | |
| Schotelwiel m.Tandwiel | ||||
| 52 | 316054990 | 26.95 | 32.61 | |
| Friction Disc Set Compl. | ||||
| 53 | 316055080 | 12.23 | 14.80 | |
| Tandwielhuis compl. | ||||
| 54 | 316055100 | 48.48 | 58.66 | |
| Veiligheidskoppeling m.Tandwiel | ||||
| 55 | 316054280 | 87.60 | 106.00 | |
| Brush holder set | ||||
| 56 | 316065420 | 12.23 | 14.80 | |
| Waaier m. Stofbeschermkorf | ||||
| 57 | 316054850 | 3.71 | 4.49 | |
| Carbon brush set uitsch. | ||||
| 58 | 316065450 | 11.74 | 14.21 | |
| Spanhendel compl. | ||||
| 59 | 316066040 | 11.74 | 14.21 | |
| Retaining ring | ||||
| 61 | 141156650 | 1.56 | 1.89 | |
| O-Ring | ||||
| 62 | 143196000 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 63 | 342003390 | 1.56 | 1.89 | |
| Push button | ||||
| 64 | 343433130 | 1.56 | 1.89 | |
| Bolt | ||||
| 65 | 341515640 | 1.56 | 1.89 | |
| Pennensleutel | ||||
| 68 | 344163920 | 3.02 | 3.65 | |
| Tachoschijf | ||||
| 70 | 343433060 | 2.28 | 2.76 | |
| Rocker switch | ||||
| 71 | 343433090 | 1.56 | 1.89 | |
| Washer | ||||
| 72 | 339007800 | 1.56 | 1.89 | |
| O-ring | ||||
| 75 | 143192490 | 1.68 | 2.03 | |
| O-ring | ||||
| 92 | 143195640 | 1.56 | 1.89 | |
| Carbon brush set with holder 230V | ||||
| 124 | 316067170 | 21.64 | 26.18 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338505780 | |||
| Cable with cable entry | ||||
| 1005 | 316067320 | 21.64 | 26.18 | |
