Metabo Wev 15-150 Quick spare parts and technical drawings

Here you will find all available parts and drawings of the 'Metabo 00472000 (WEV15-150Quick)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

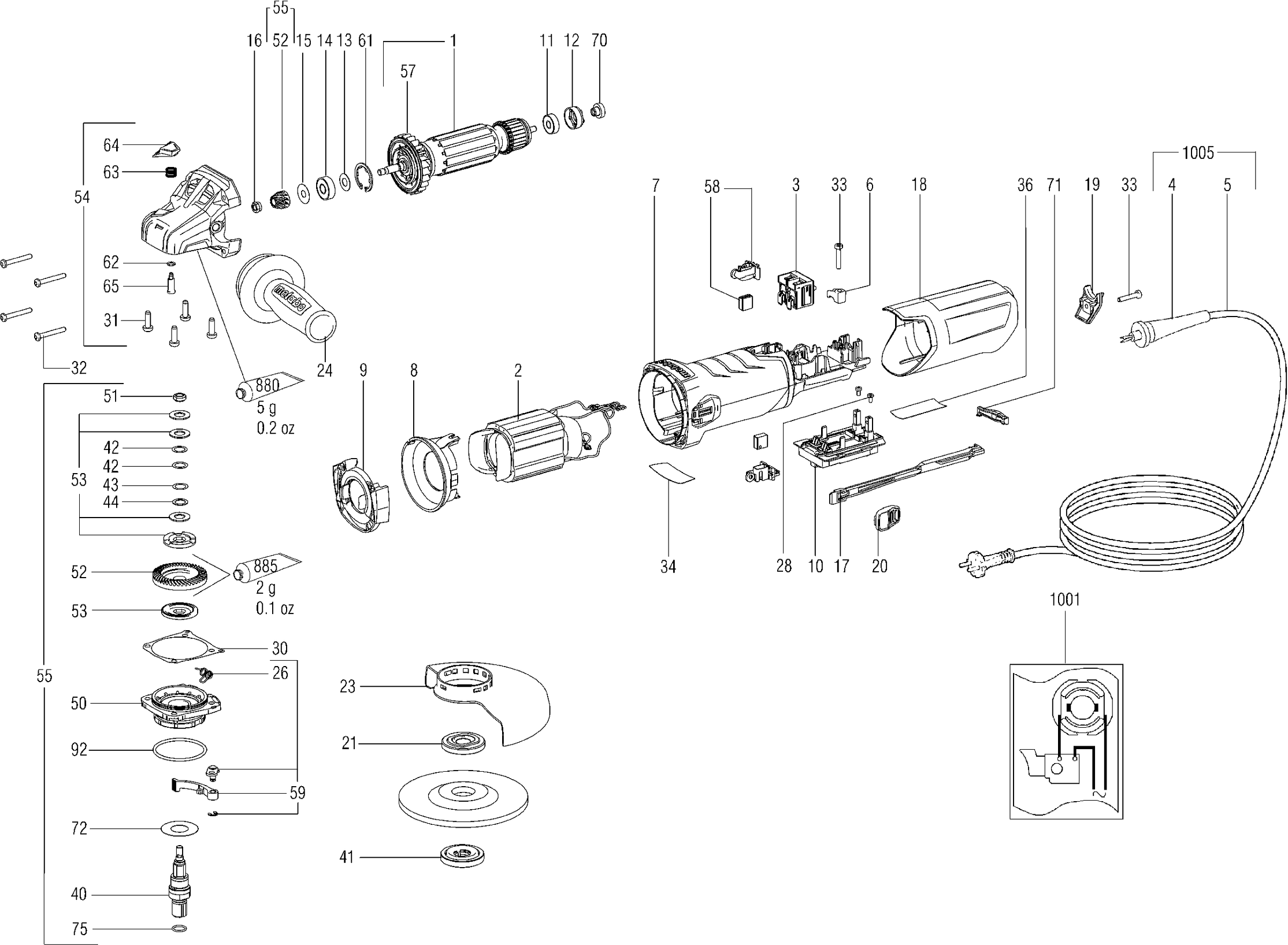

Technical drawing of model Metabo 00472000 (WEV15-150Quick)

Spare parts list of model Metabo 00472000 (WEV15-150Quick)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Anker compl., 230V
1	310010990	67.33	81.47

Field
2	311012180	48.48	58.66

Schakelaar 2-polig
3	343410120	10.38	12.56

No information available, not orderable
4	399999990

No information available, not orderable
5	399999990

Cable clip
6	343362490	1.68	2.03

Motor housing 2 part
7	315013520	10.38	12.56

Luchtgeleidingsschijf
8	339151180	1.56	1.89

Luchtgeleidingsschijf
9	339151200	1.56	1.89

Elektro.unit,230V 50/60Hz
10	343082890	43.15	52.21

Groefkogellager,6x19x6
11	143115690	2.28	2.76

Bus rubber
12	344097870	1.56	1.89

Washer,8.05x17x0.4
13	339133060	1.56	1.89

Groefkogellager,8x22x7
14	143115700	3.02	3.65

Washer,7.05x19.5x0.2
15	339006390	1.56	1.89

Zeskantmoer
16	341100940	1.68	2.03

Schakelstang
17	343433070	1.56	1.89

Cap
18	343433030	3.71	4.49

End cap
19	343433100	1.56	1.89

Schakelschuif
20	343437100	1.56	1.89

Clamping flange
21	341031160	11.74	14.21

Protective Cap, D150
23	339204510	10.38	12.56

Anti-Vibration Handle, M 8
24	314000970	13.48	16.31

Spring clip
26	342022490	1.56	1.89

Fill. head screw(DIN 7985)
28	141121430	1.56	1.89

Gasket
30	339012430	1.56	1.89

Fill. head screw(DIN 7985)
31	141121640	1.56	1.89

Self-tap. fill. h. screw
32	141116980	1.56	1.89

Self-tap. fill. h. screw
33	141117060	1.68	2.03

Typeplaatje
34	338060280	1.56	1.89

No information available, not orderable
36	399999990

Slijpspil M14
40	341604420	12.23	14.80

Clamping nut compl.,M14
41	316055350	11.74	14.21

Washer 10.2 X 14.8 X 0.2
42	141151120	1.56	1.89

Washer 10.2 X 14.8 X 0.1
43	141152300	1.68	2.03

Washer 10,2 X 14,8X 0,5
44	141153920	1.56	1.89

Flens compl.
50	343433280	8.89	10.76

Nut
51	341102460	2.28	2.76

Schotelwiel m.Tandwiel
52	316054980	16.25	19.66

Friction Disc Set Compl.
53	316055080	12.23	14.80

Tandwielhuis compl.
54	316055100	48.48	58.66

Veiligheidskoppeling m.Tandwiel
55	316054260	74.13	89.70

Waaier m. Stofbeschermkorf
57	316054850	3.71	4.49

Carbon brush set with holder 230V
58	316067170	21.64	26.18

Spanhendel compl.
59	316066040	11.74	14.21

Retaining ring
61	141156650	1.56	1.89

O-ring
62	143193650	1.56	1.89

O-Ring
62	143196000	1.56	1.89

Pressure spring
63	342003390	1.56	1.89

Push button
64	343433130	1.56	1.89

Bolt
65	341515640	1.56	1.89

Tachoschijf
70	343433060	2.28	2.76

Rocker switch
71	343433090	1.56	1.89

Washer
72	339007800	1.56	1.89

O-ring
75	143192490	1.68	2.03

O-ring
92	143195640	1.56	1.89

Tube vet 100 gr.
880	344130920	37.65	45.56

Grease Tube 50 gr. SF 011 1,8oz
885	344130560	32.27	39.05

No information available, not orderable
1001	338505780

Cable with cable entry
1005	316067320	21.64	26.18
