Here you will find all available parts and drawings of the 'Metabo 13083002 (WEF15-150Quick)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

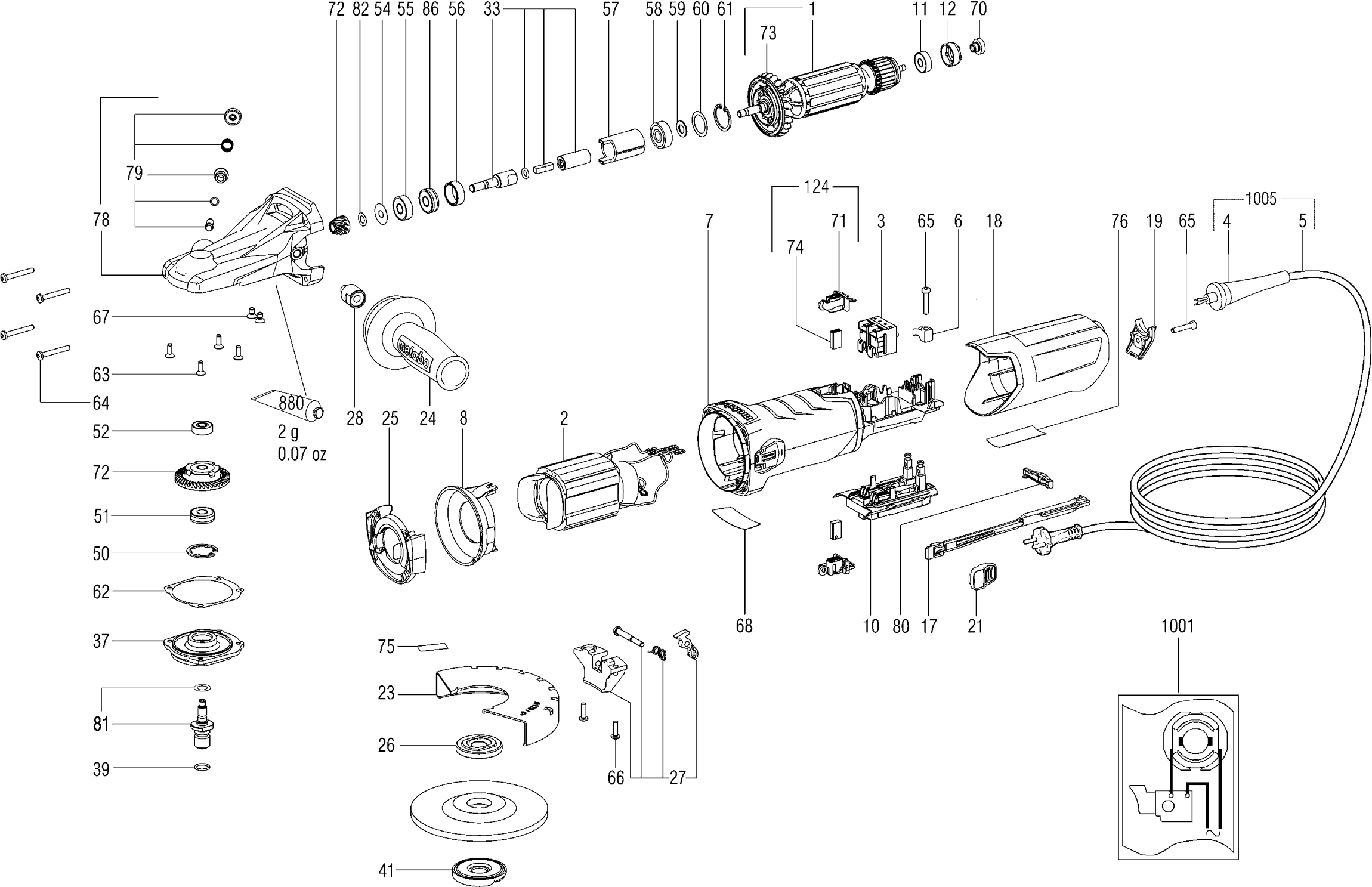

Technical drawing of model Metabo 13083002 (WEF15-150Quick)
Spare parts list of model Metabo 13083002 (WEF15-150Quick)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310010990 | 67.33 | 81.47 | |
| Field | ||||
| 2 | 311012180 | 48.48 | 58.66 | |
| Schakelaar 2-polig | ||||
| 3 | 343410290 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 4 | 399999990 | |||
| No information available, not orderable | ||||
| 5 | 399999990 | |||
| Cable clip | ||||
| 6 | 343362490 | 1.68 | 2.03 | |
| Motor housing 2 part | ||||
| 7 | 315013520 | 10.38 | 12.56 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151180 | 1.56 | 1.89 | |
| Elektro.unit,230V 50/60Hz | ||||
| 10 | 343084800 | 43.15 | 52.21 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 17 | 343433070 | 1.56 | 1.89 | |
| Cap | ||||
| 18 | 343433030 | 3.71 | 4.49 | |
| End cap | ||||
| 19 | 343433100 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 21 | 343437100 | 1.56 | 1.89 | |
| Beschermkap,D 150 | ||||
| 23 | 339204600 | 48.48 | 58.66 | |
| Anti-Vibration Handle, M 8 | ||||
| 24 | 314000970 | 13.48 | 16.31 | |
| Luchtgeleidingsschijf | ||||
| 25 | 339151200 | 1.56 | 1.89 | |
| Clamping flange | ||||
| 26 | 341031160 | 11.74 | 14.21 | |
| Opname compl.,D150 | ||||
| 27 | 316061250 | 26.95 | 32.61 | |
| Distanzelement | ||||
| 28 | 341210700 | 5.18 | 6.27 | |
| Tussenas compl. | ||||
| 33 | 316064980 | 43.15 | 52.21 | |
| Flange | ||||
| 37 | 315203030 | 8.89 | 10.76 | |
| Spindle,M14 | ||||
| 38 | 341605040 | 12.23 | 14.80 | |
| O-ring | ||||
| 39 | 143192490 | 1.68 | 2.03 | |
| Quick-moer,M14 | ||||
| 41 | 316064680 | 11.74 | 14.21 | |
| Retaining ring | ||||
| 50 | 141156650 | 1.56 | 1.89 | |
| Groove ball bearing,8x22x7 | ||||
| 51 | 143115560 | 5.87 | 7.10 | |
| Ball bearing 6x19x 6 | ||||
| 52 | 143114790 | 3.71 | 4.49 | |
| Washer,7.05x19.5x0.2 | ||||
| 54 | 339006390 | 1.56 | 1.89 | |
| Kogellager 8x22x 7 | ||||
| 55 | 143114740 | 11.74 | 14.21 | |
| Afstandsring | ||||
| 56 | 341071890 | 3.71 | 4.49 | |
| Afstandshuls | ||||
| 57 | 341071640 | 7.22 | 8.74 | |
| Groove ball bearing,8x24x8 | ||||
| 58 | 143115950 | 4.51 | 5.46 | |
| Washer | ||||
| 59 | 141151040 | 1.68 | 2.03 | |
| Compensating washer | ||||
| 60 | 143115490 | 1.56 | 1.89 | |
| Retaining ring | ||||
| 61 | 141181010 | 1.56 | 1.89 | |
| Compensating washer | ||||
| 62 | 339012160 | 1.56 | 1.89 | |
| Platverzonken schroef | ||||
| 63 | 141120200 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 64 | 141116980 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 65 | 141117060 | 1.68 | 2.03 | |
| Lensschroef | ||||
| 66 | 141124090 | 1.56 | 1.89 | |
| Platverzonken schroef | ||||
| 67 | 141121710 | 1.56 | 1.89 | |
| Typeplaatje | ||||
| 68 | 338064550 | 1.56 | 1.89 | |
| Tachoschijf | ||||
| 70 | 343433060 | 2.28 | 2.76 | |
| Brush holder set | ||||
| 71 | 316065420 | 12.23 | 14.80 | |
| Dish wheel with gear,1:3,9 | ||||
| 72 | 316062410 | 37.65 | 45.56 | |
| Waaier m. Stofbeschermkorf | ||||
| 73 | 316054850 | 3.71 | 4.49 | |
| Carbon brush set uitsch. | ||||
| 74 | 316065450 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 75 | 399999990 | |||
| No information available, not orderable | ||||
| 76 | 399999990 | |||
| Tandwielhuis compl. | ||||
| 78 | 316062330 | 67.33 | 81.47 | |
| Spilblokkering compl. | ||||
| 79 | 316062340 | 13.48 | 16.31 | |
| Rocker switch | ||||
| 80 | 343433090 | 1.56 | 1.89 | |
| Grinding spindle complete, M14 | ||||
| 81 | 316069020 | 16.25 | 19.66 | |
| Washer | ||||
| 82 | 339006810 | 1.56 | 1.89 | |
| Groove ball bearing,8x22x7 | ||||
| 86 | 143115560 | 5.87 | 7.10 | |
| Carbon brush set with holder 230V | ||||
| 124 | 316067170 | 21.64 | 26.18 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 1001 | 338505780 | |||
| Cable with cable entry | ||||
| 1005 | 316067320 | 21.64 | 26.18 | |
