Here you will find all available parts and drawings of the 'Metabo 13082000 ( WEF15-125QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

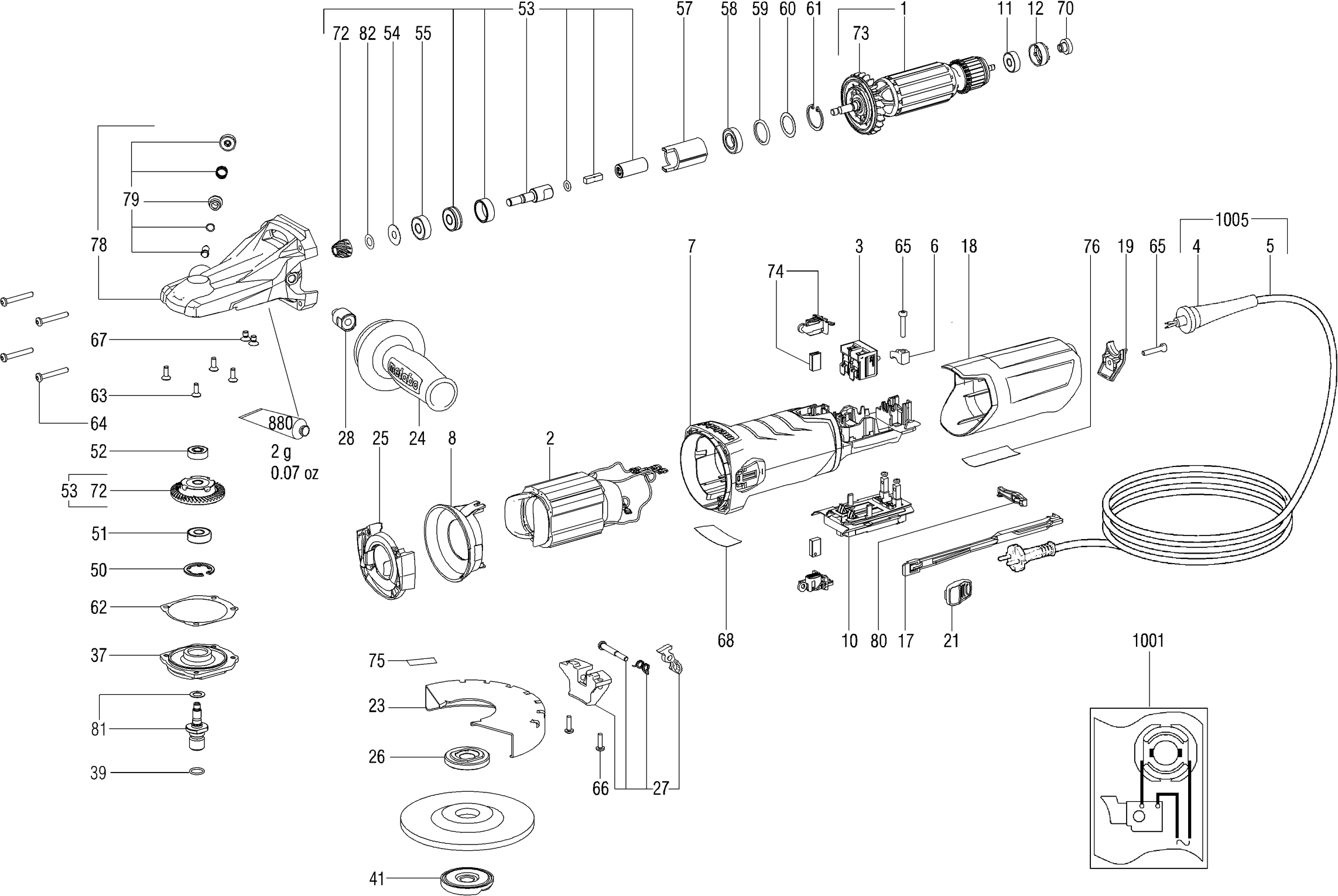

Technical drawing of model Metabo 13082000 ( WEF15-125QUICK )

Spare parts list of model Metabo 13082000 ( WEF15-125QUICK )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Anker compl., 230V
1 310010990 67.33 81.47
Field
2 311012180 48.48 58.66
Schakelaar 2-polig
3 343410290 10.38 12.56
No information available, not orderable
4 399999990
No information available, not orderable
5 399999990
Cable clip
6 343362490 1.67 2.02
Motor housing 2 part
7 315013520 10.38 12.56
Luchtgeleidingsschijf
8 339151180 1.55 1.88
Elektro.unit,230V 50/60Hz
10 343084800 43.15 52.21
Groefkogellager,6x19x6
11 143115690 2.28 2.76
Bus rubber
12 344097870 1.55 1.88
Schakelstang
17 343433070 1.55 1.88
Cap
18 343433030 3.71 4.49
End cap
19 343433100 1.55 1.88
Schakelschuif
21 343437100 1.55 1.88
Beschermkap,D 125
23 339204610 43.15 52.21
Anti-Vibration Handle, M 8
24 314000970 13.48 16.31
Luchtgeleidingsschijf
25 339151200 1.55 1.88
Clamping flange
26 341031160 11.74 14.21
Opname compl.,D125
27 316061240 26.95 32.61
Distanzelement
28 341210700 5.18 6.27
Flange
37 315203030 8.89 10.76
Spindle,M14
38 341605040 12.23 14.80
O-ring
39 143192490 1.67 2.02
Quick-moer,M14
41 316064680 11.74 14.21
Retaining ring
50 141156650 1.55 1.88
Groove ball bearing,8x22x7
51 143115560 5.87 7.10
Ball bearing 6x19x 6
52 143114790 3.71 4.49
Tussenas compl.
53 316066990 80.81 97.78
Washer,7.05x19.5x0.2
54 339006390 1.55 1.88
Kogellager 8x22x 7
55 143114740 11.74 14.21
Afstandshuls
57 341071640 7.22 8.74
Deep groove ball bearing,12x24x6
58 143115270 10.38 12.56
Ball bearing pressure disc
59 301070100 1.55 1.88
Compensating washer
60 143115490 1.55 1.88
Retaining ring
61 141181010 1.55 1.88
Compensating washer
62 339012160 1.55 1.88
Platverzonken schroef
63 141120200 1.55 1.88
Self-tap. fill. h. screw
64 141116980 1.55 1.88
Self-tap. fill. h. screw
65 141117060 1.67 2.02
Lensschroef
66 141124090 1.55 1.88
Platverzonken schroef
67 141121710 1.55 1.88
Typeplaatje
68 338064540 1.55 1.88
Tachoschijf
70 343433060 2.28 2.76
Dish wheel with gear,1:3,9
72 316062410 37.65 45.56
Waaier m. Stofbeschermkorf
73 316054850 3.71 4.49
Carbon brush set with holder 230V
74 316067170 21.64 26.18
No information available, not orderable
75 399999990
No information available, not orderable
76 399999990
Tandwielhuis compl.
78 316062330 67.33 81.47
Spilblokkering compl.
79 316062340 13.48 16.31
Rocker switch
80 343433090 1.55 1.88
Grinding spindle complete, M14
81 316069020 16.25 19.66
Washer
82 339006810 1.55 1.88
Tube vet 100 gr.
880 344130920 37.65 45.56
No information available, not orderable
1001 338505780
Cable with cable entry
1005 316067320 21.64 26.18
