Here you will find all available parts and drawings of the 'Metabo 00269000 (WE9-125QUICK)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

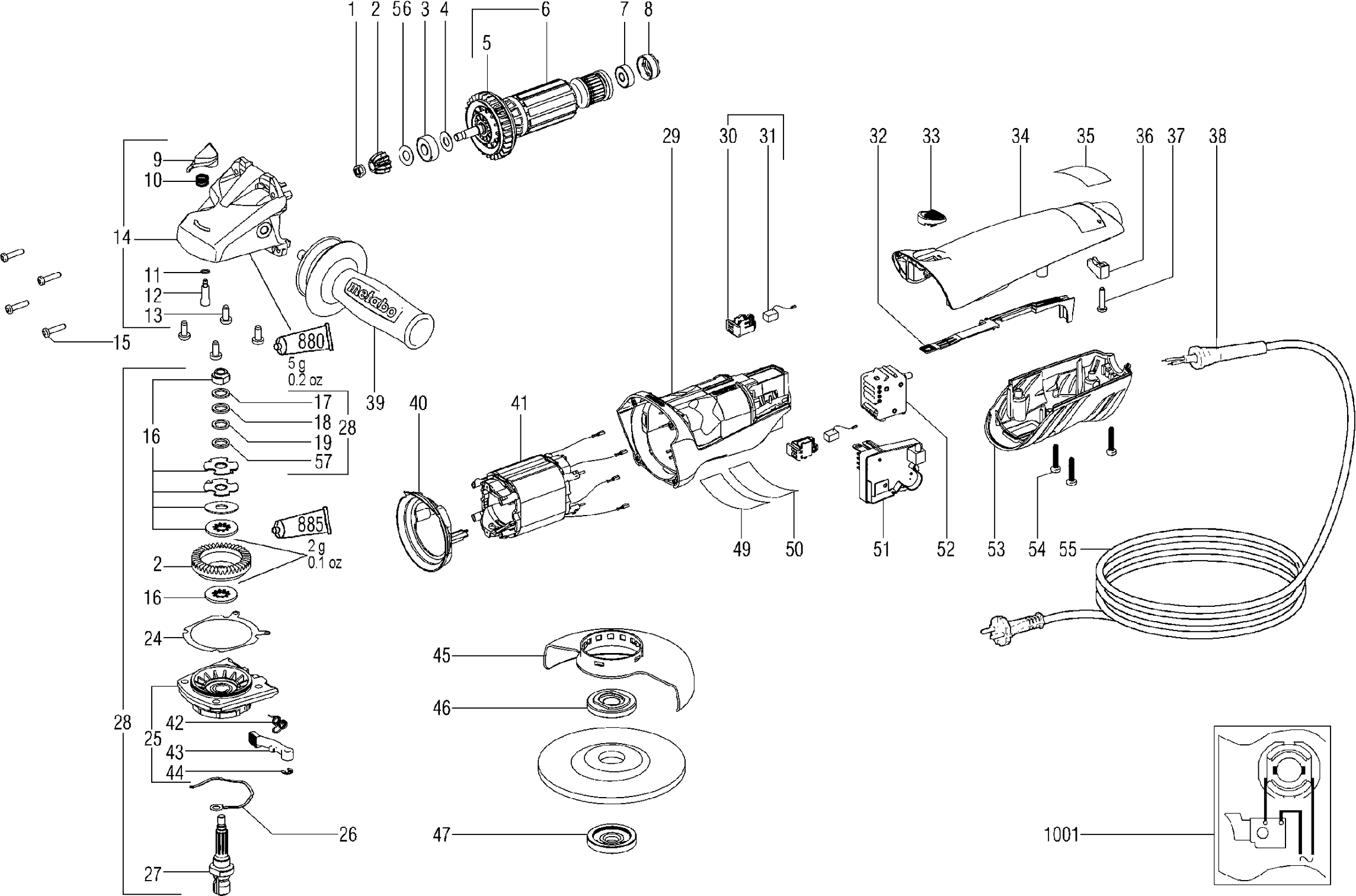

Technical drawing of model Metabo 00269000 (WE9-125QUICK)
Spare parts list of model Metabo 00269000 (WE9-125QUICK)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Zeskantmoer | ||||
| 1 | 341100940 | 1.79 | 2.17 | |
| Gear set Safety coupling | ||||
| 2 | 316041740 | 29.97 | 36.26 | |
| Groefkogellager,8x22x7 | ||||
| 3 | 143115700 | 3.20 | 3.87 | |
| Washer,8.05x17x0.4 | ||||
| 4 | 339133060 | 1.67 | 2.02 | |
| Waaier m. stofbescherming | ||||
| 5 | 316041450 | 5.49 | 6.64 | |
| Anker compl.,230V | ||||
| 6 | 310009060 | 70.83 | 85.70 | |
| Groefkogellager,6x19x6 | ||||
| 7 | 143115690 | 2.43 | 2.94 | |
| Bus rubber | ||||
| 8 | 344097870 | 1.67 | 2.02 | |
| Push button red | ||||
| 9 | 343393650 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 10 | 342003390 | 1.67 | 2.02 | |
| O-ring | ||||
| 11 | 143193650 | 1.67 | 2.02 | |
| Bolt | ||||
| 12 | 341515280 | 1.67 | 2.02 | |
| Fill. head screw(DIN 7985) | ||||
| 13 | 141121640 | 1.67 | 2.02 | |
| Tandwielhuis compl. | ||||
| 14 | 316041620 | 29.97 | 36.26 | |
| Self-tap fill h screw | ||||
| 15 | 141116020 | 1.79 | 2.17 | |
| Frictieschijf compl. | ||||
| 16 | 316041650 | 13.93 | 16.86 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 17 | 141151120 | 1.67 | 2.02 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 18 | 141152300 | 1.79 | 2.17 | |
| Washer 10,2 X 14,8X 0,5 | ||||
| 19 | 141153920 | 1.67 | 2.02 | |
| Gasket | ||||
| 24 | 339011570 | 1.67 | 2.02 | |
| Flange with tension lever complete | ||||
| 25 | 316041720 | 29.97 | 36.26 | |
| Aandrukveer | ||||
| 26 | 342050840 | 1.67 | 2.02 | |
| Spindle shaft | ||||
| 27 | 341161030 | 24.26 | 29.35 | |
| No information available, not orderable | ||||
| 28 | 316045380 | |||
| Motor housing | ||||
| 29 | 315013210 | 7.58 | 9.17 | |
| Koolborstelhouder compl. uitsch.,230V | ||||
| 30 | 316046890 | 12.19 | 14.75 | |
| Brush Set Turn Off | ||||
| 31 | 316046900 | 12.19 | 14.75 | |
| Schakelstang | ||||
| 32 | 343393110 | 1.67 | 2.02 | |
| Schakelschuif | ||||
| 33 | 343392980 | 1.67 | 2.02 | |
| Deksel v. huis | ||||
| 34 | 343392990 | 4.78 | 5.78 | |
| No information available, not orderable | ||||
| 35 | 338122760 | |||
| Cable clip | ||||
| 36 | 343362490 | 1.79 | 2.17 | |
| Self-tap fill h screw | ||||
| 37 | 141116020 | 1.79 | 2.17 | |
| Kabeldoorvoer | ||||
| 38 | 344100970 | 1.79 | 2.17 | |
| Anti-Vibration Handle, M 8 | ||||
| 39 | 314000970 | 15.31 | 18.53 | |
| Luchtgeleidingsschijf | ||||
| 40 | 339151050 | 1.67 | 2.02 | |
| Complete Field Package,230V | ||||
| 41 | 311010710 | 70.83 | 85.70 | |
| Spring clip | ||||
| 42 | 342022040 | 1.67 | 2.02 | |
| Lever | ||||
| 43 | 341070440 | 3.20 | 3.87 | |
| Borgschijf | ||||
| 44 | 141181810 | 1.67 | 2.02 | |
| Beschermkap,D125 | ||||
| 45 | 339204500 | 9.36 | 11.33 | |
| Clamping flange | ||||
| 46 | 341031160 | 12.19 | 14.75 | |
| Quick clamping nut | ||||
| 47 | 316023660 | 18.28 | 22.12 | |
| No information available, not orderable | ||||
| 49 | 338048890 | |||
| No information available, not orderable | ||||
| 50 | 399999990 | |||
| Electronic unit,230V/50Hz | ||||
| 51 | 343080950 | 52.36 | 63.36 | |
| Schakelaar | ||||
| 52 | 343409450 | 12.19 | 14.75 | |
| No information available, not orderable | ||||
| 53 | 343395620 | |||
| Fillister head screw | ||||
| 54 | 141123490 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 55 | 344497150 | 18.28 | 22.12 | |
| Washer,7.05x19.5x0.2 | ||||
| 56 | 339006390 | 1.67 | 2.02 | |
| Washer 10.2 X 14.8 X 1.0 | ||||
| 57 | 141155550 | 1.67 | 2.02 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 41.32 | 50.00 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 52.36 | 63.36 | |
| No information available, not orderable | ||||
| 1001 | 338504660 | |||
