Here you will find all available parts and drawings of the 'Metabo 18120000 (WE14125RT)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

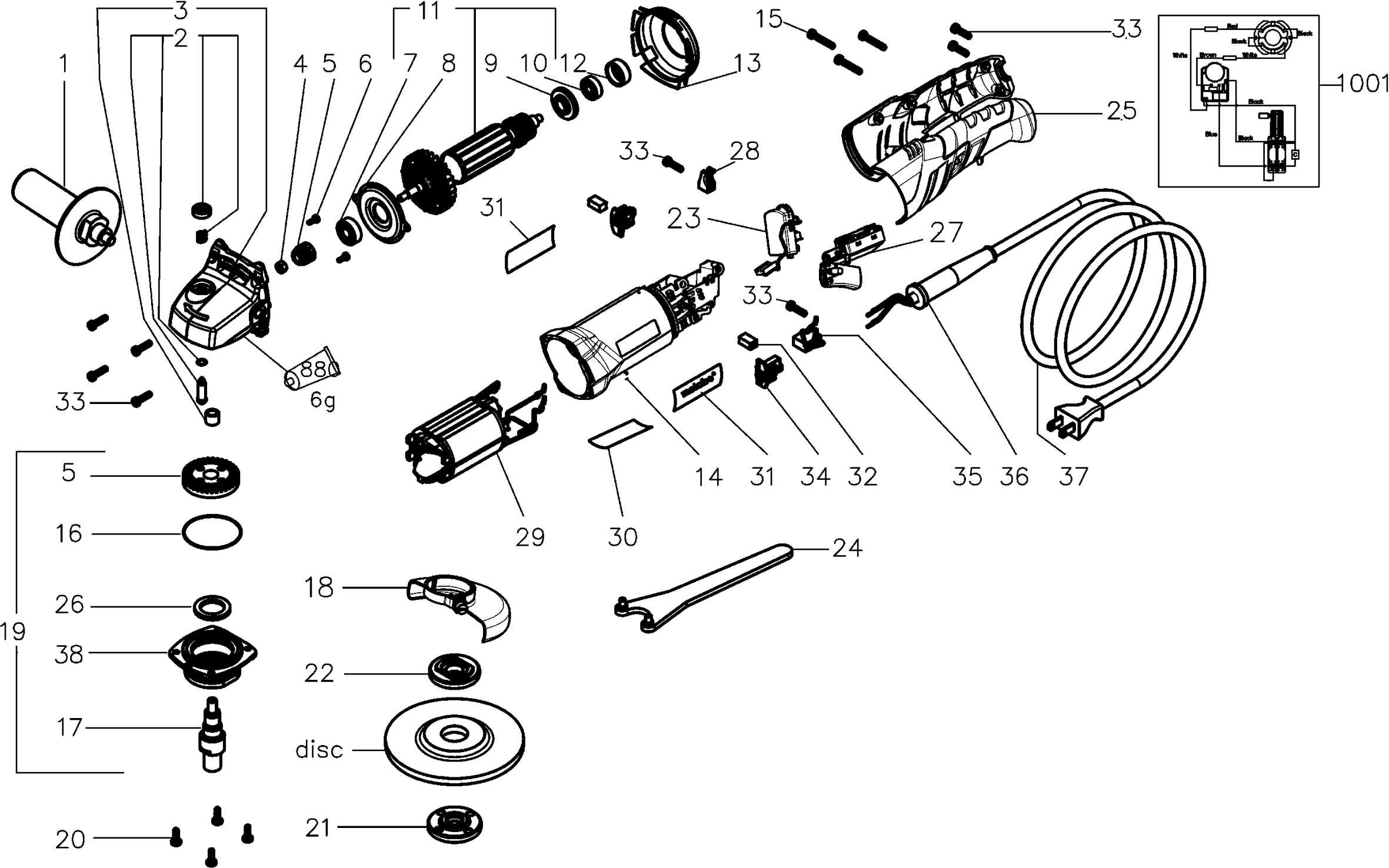

Technical drawing of model Metabo 18120000 (WE14125RT)
Spare parts list of model Metabo 18120000 (WE14125RT)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000540 | 12.19 | 14.75 | |
| Spindle stop compl. | ||||
| 2 | 316040610 | 3.20 | 3.87 | |
| Tandwielhuis compl. | ||||
| 3 | 316049660 | 29.97 | 36.26 | |
| Zeskantmoer | ||||
| 4 | 341100940 | 1.79 | 2.17 | |
| Bevel gear and pinion | ||||
| 5 | 316052030 | 27.16 | 32.86 | |
| Fillister head screw | ||||
| 6 | 141110460 | 1.67 | 2.02 | |
| Kogellager 8x22x 7 | ||||
| 7 | 143115420 | 6.05 | 7.32 | |
| Abdeckplatte | ||||
| 8 | 339135750 | 1.67 | 2.02 | |
| Tachoschijf | ||||
| 9 | 343431690 | 2.43 | 2.94 | |
| Kogellager 6x19x 6 | ||||
| 10 | 143115870 | 3.89 | 4.71 | |
| Anker compl.,230V | ||||
| 11 | 310010630 | 122.46 | 148.18 | |
| Rubber bus | ||||
| 12 | 344095260 | 1.79 | 2.17 | |
| Luchtgeleiderschijf | ||||
| 13 | 343430250 | 1.67 | 2.02 | |
| Motor housing | ||||
| 14 | 343431830 | 12.19 | 14.75 | |
| Self-tap. fill. h. screw | ||||
| 15 | 141123940 | 1.67 | 2.02 | |
| O-ring 48 x 1 | ||||
| 16 | 344097550 | 1.67 | 2.02 | |
| Spindle gear M14 | ||||
| 17 | 341161150 | 7.58 | 9.17 | |
| Beschermkap compl.,Ø125 | ||||
| 18 | 339203970 | 24.26 | 29.35 | |
| Flens compl. | ||||
| 19 | 315202680 | 35.72 | 43.22 | |
| Fill. head screw | ||||
| 20 | 141120070 | 1.67 | 2.02 | |
| Flange nut | ||||
| 21 | 341106900 | 9.36 | 11.33 | |
| Clamping flange | ||||
| 22 | 341031160 | 12.19 | 14.75 | |
| Elektro.unit,230V 50Hz | ||||
| 23 | 343083250 | 46.99 | 56.86 | |
| Pennensleutel | ||||
| 24 | 344163920 | 3.20 | 3.87 | |
| Handgreep links | ||||
| 25 | 343431930 | 10.82 | 13.09 | |
| Compensating Washer | ||||
| 26 | 339060160 | 1.79 | 2.17 | |
| Schakelaar met vastzetkn | ||||
| 27 | 343431180 | 24.26 | 29.35 | |
| Cable clip | ||||
| 28 | 343362490 | 1.79 | 2.17 | |
| Field | ||||
| 29 | 311011690 | 57.79 | 69.93 | |
| Leistungsschild | ||||
| 30 | 338058000 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 31 | 338122160 | |||
| Koolborstelset,230V | ||||
| 32 | 343013040 | 10.82 | 13.09 | |
| Self-tap fill h screw | ||||
| 33 | 141116020 | 1.79 | 2.17 | |
| Koolborstelhouder | ||||
| 34 | 343012950 | 2.43 | 2.94 | |
| Condensator | ||||
| 35 | 343254780 | 2.43 | 2.94 | |
| Kabelbescherming | ||||
| 36 | 344097360 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 37 | 344498940 | 13.93 | 16.86 | |
| Flange | ||||
| 38 | 343430260 | 9.36 | 11.33 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 1001 | 338505720 | |||
