Here you will find all available parts and drawings of the 'Metabo 01450001 (WE14-150PLUS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

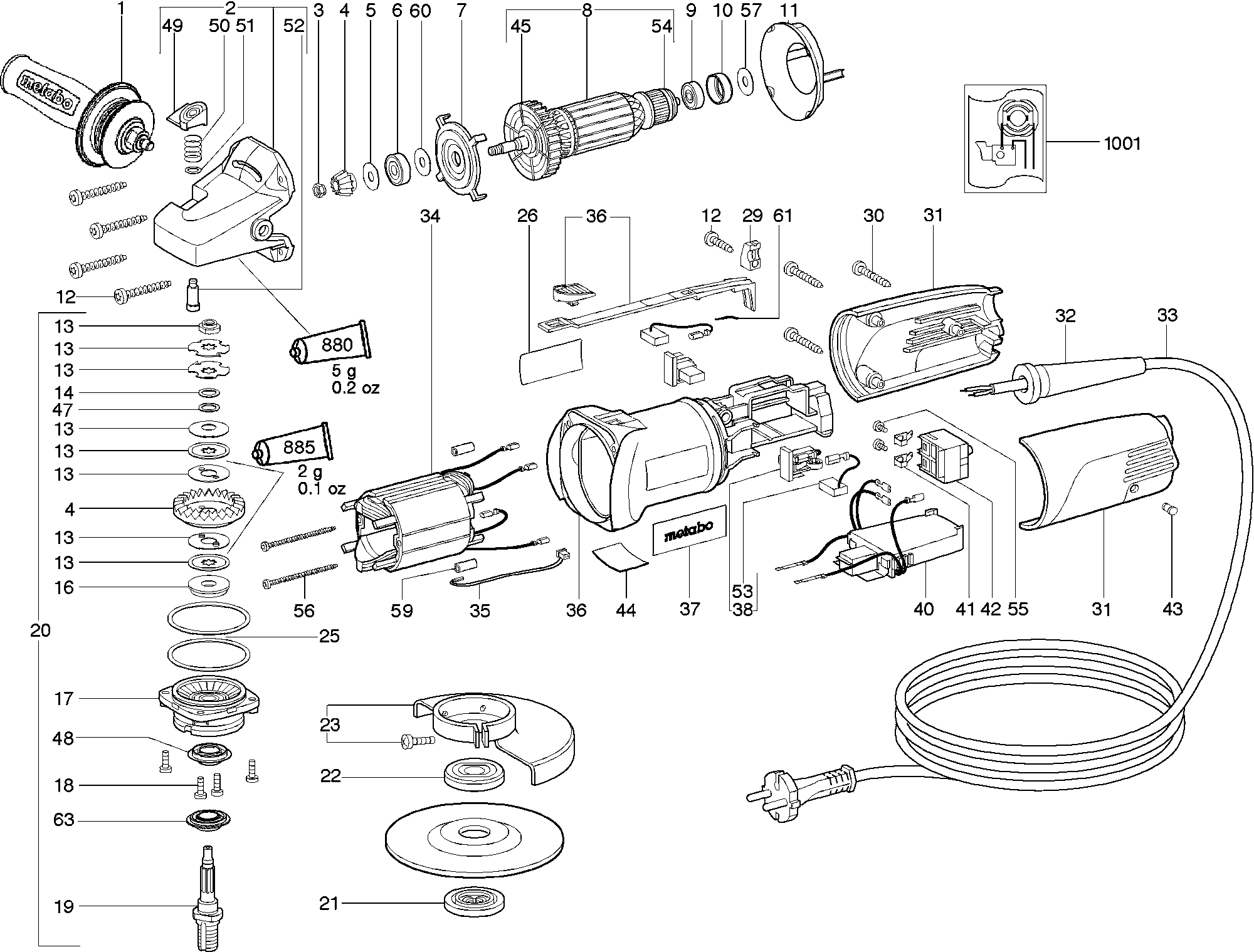

Technical drawing of model Metabo 01450001 (WE14-150PLUS)
Spare parts list of model Metabo 01450001 (WE14-150PLUS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anti-Vibration Handle, M 8 | ||||
| 1 | 314000970 | 15.31 | 18.53 | |
| Tandwielhuis compl. | ||||
| 2 | 316029180 | 52.36 | 63.36 | |
| Zeskantmoer | ||||
| 3 | 341100940 | 1.79 | 2.17 | |
| Tandwiel set | ||||
| 4 | 316030170 | 29.97 | 36.26 | |
| Washer | ||||
| 5 | 339006810 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 6 | 143115180 | |||
| Cover | ||||
| 7 | 343373670 | 2.43 | 2.94 | |
| Anker 230 V | ||||
| 8 | 310007810 | 122.46 | 148.18 | |
| Groefkogellager,6x19x6 | ||||
| 9 | 143115690 | 2.43 | 2.94 | |
| Rubber bus | ||||
| 10 | 344095260 | 1.79 | 2.17 | |
| Luchtgeleidingsschijf | ||||
| 11 | 339150890 | 1.79 | 2.17 | |
| Self-tap fill h screw | ||||
| 12 | 141116020 | 1.79 | 2.17 | |
| Complete Friction Disc | ||||
| 13 | 316029480 | 12.19 | 14.75 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 14 | 141152300 | 1.79 | 2.17 | |
| Tussenstuk | ||||
| 16 | 341051480 | 4.78 | 5.78 | |
| Flens compl. | ||||
| 17 | 343377210 | 12.19 | 14.75 | |
| Fillister head screw | ||||
| 18 | 141119860 | 1.79 | 2.17 | |
| Spindle shaft | ||||
| 19 | 341161030 | 24.26 | 29.35 | |
| No information available, not orderable | ||||
| 20 | 316039290 | |||
| Quick clamping nut | ||||
| 21 | 316023660 | 18.28 | 22.12 | |
| Clamping flange | ||||
| 22 | 341031160 | 12.19 | 14.75 | |
| Beschermkap compl. | ||||
| 23 | 316035720 | 41.32 | 50.00 | |
| Compensating Washer | ||||
| 25 | 339060160 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 26 | 338037420 | |||
| Cable clip | ||||
| 29 | 343362490 | 1.79 | 2.17 | |
| Self-tap. fill. h. screw | ||||
| 30 | 141116990 | 1.79 | 2.17 | |
| Engine hood 2-piece black | ||||
| 31 | 343375710 | 6.05 | 7.32 | |
| Kabeldoorvoer | ||||
| 32 | 344100970 | 1.79 | 2.17 | |
| Kabel m. CEE-stekker | ||||
| 33 | 344493180 | 24.26 | 29.35 | |
| Field coil assembly w.field coil,230V | ||||
| 34 | 311010210 | 57.79 | 69.93 | |
| Temperatuurvoeler | ||||
| 35 | 343077490 | 10.82 | 13.09 | |
| No longer available, no replacement | ||||
| 37 | 338122160 | |||
| Koolborstelhouder | ||||
| 38 | 316035480 | 12.19 | 14.75 | |
| No information available, not orderable | ||||
| 40 | 343079350 | |||
| Flat plug | ||||
| 41 | 339080310 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 42 | 343406740 | 21.22 | 25.68 | |
| Lichtgeleider | ||||
| 43 | 343077280 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 44 | 399999990 | |||
| Fan with dust protection | ||||
| 45 | 316031210 | 10.82 | 13.09 | |
| Washer | ||||
| 47 | 141155560 | 1.67 | 2.02 | |
| Centrifugeerschijf | ||||
| 48 | 343375540 | 1.67 | 2.02 | |
| Push button, red | ||||
| 49 | 343394190 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 50 | 342001550 | 1.67 | 2.02 | |
| Afdichtring | ||||
| 51 | 339006520 | 1.67 | 2.02 | |
| Bolt | ||||
| 52 | 341513790 | 3.89 | 4.71 | |
| Koolborstel set | ||||
| 53 | 316035510 | 13.93 | 16.86 | |
| Tacho disc | ||||
| 54 | 343391120 | 3.89 | 4.71 | |
| Fillister head screw | ||||
| 55 | 141115780 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 56 | 399999990 | |||
| Washer | ||||
| 57 | 141153340 | 1.67 | 2.02 | |
| Shrink hose | ||||
| 59 | 344096920 | 1.67 | 2.02 | |
| Washer | ||||
| 60 | 339132280 | 1.67 | 2.02 | |
| Rubber snoer | ||||
| 61 | 344097440 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 63 | 399999990 | |||
| Tube of grease GF 078 100Gr 3,6oz | ||||
| 880 | 344130840 | 15.31 | 18.53 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 52.36 | 63.36 | |
