Here you will find all available parts and drawings of the 'Metabo 00436001 ( WBA12-125QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

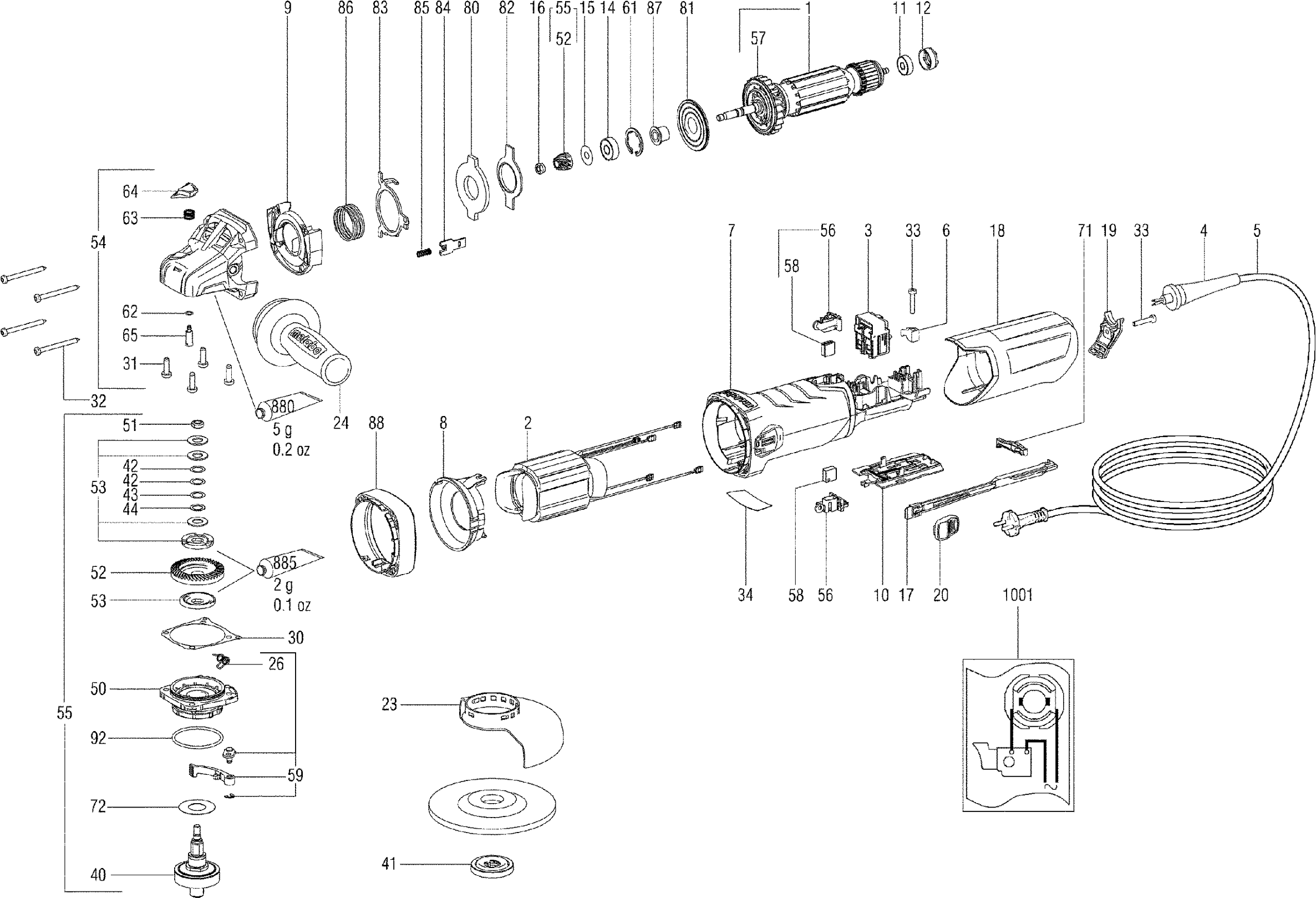

Technical drawing of model Metabo 00436001 ( WBA12-125QUICK )

Spare parts list of model Metabo 00436001 ( WBA12-125QUICK )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Anker compl., 230V
1 310011050 87.60 106.00
Field
2 311011980 48.48 58.66
Switch,FPCe 230 V
3 343411110 18.80 22.75
Kabeldoorvoer
4 344100970 1.67 2.02
Kabel m.CEE-stekker
5 344499560 13.48 16.31
Cable clip
6 343362490 1.67 2.02
Motor housing 2 part
7 315013520 10.38 12.56
Luchtgeleidingsschijf
8 339151210 1.55 1.88
Luchtgeleidingsschijf
9 339151200 1.55 1.88
Cover
10 343433140 1.55 1.88
Groefkogellager,6x19x6
11 143115690 2.28 2.76
Bus rubber
12 344097870 1.55 1.88
Groefkogellager,8x22x7
14 143115700 3.02 3.65
Washer,7.05x19.5x0.2
15 339006390 1.55 1.88
Zeskantmoer
16 341100940 1.67 2.02
Schakelstang
17 343433070 1.55 1.88
Cap
18 343433030 3.71 4.49
End piece
19 343433110 1.55 1.88
Schakelschuif
20 343437100 1.55 1.88
Beschermkap,D125
23 339204500 8.89 10.76
Anti-Vibration Handle, M 8
24 314000970 13.48 16.31
Spring clip
26 342022490 1.55 1.88
Gasket
30 339012430 1.55 1.88
Fill. head screw(DIN 7985)
31 141121640 1.55 1.88
Self-tap. fill. h. screw
32 341701470 1.55 1.88
Self-tap. fill. h. screw
33 141117060 1.67 2.02
Typeplaatje
34 338060160 1.55 1.88
Complete spindle, WBA M14
40 316054500 67.33 81.47
Clamping nut compl.,M14
41 316055350 11.74 14.21
Washer 10.2 X 14.8 X 0.2
42 141151120 1.55 1.88
Washer 10.2 X 14.8 X 0.1
43 141152300 1.67 2.02
Washer 10,2 X 14,8X 0,5
44 141153920 1.55 1.88
Flens compl.
50 343433280 8.89 10.76
Nut
51 341102460 2.28 2.76
Schotelwiel m.Tandwiel
52 316054960 13.48 16.31
Friction Disc Set Compl.
53 316055080 12.23 14.80
Tandwielhuis compl.
54 316055100 48.48 58.66
Veiligheidskoppeling m.Tandwiel
55 316054390 128.32 155.27
Koolborstelhouder compl.
56 316055240 12.23 14.80
Waaier m. Stofbeschermkorf
57 316054850 3.71 4.49
Koolborstelset uitsch.
58 316055210 10.38 12.56
Spanhendel compl.
59 316066040 11.74 14.21
Retaining ring
61 141156650 1.55 1.88
O-ring
62 143193650 1.55 1.88
O-Ring
62 143196000 1.55 1.88
Pressure spring
63 342003390 1.55 1.88
Push button
64 343433130 1.55 1.88
Bolt
65 341515640 1.55 1.88
Rocker switch
71 343433090 1.55 1.88
Washer
72 339007800 1.55 1.88
Remvoering
80 339011590 7.22 8.74
Rollenhouder
81 341013460 12.23 14.80
Draagplaat
82 343433710 1.55 1.88
Schakelhendel
83 339136010 1.67 2.02
Schakel-element
84 343433700 1.55 1.88
Pressure spring
85 342003420 1.55 1.88
Pressure spring
86 342003930 1.55 1.88
Afstandshuls
87 341212170 2.28 2.76
Tussenflens
88 343433690 5.18 6.27
O-ring
92 143195640 1.55 1.88
Tube vet 100 gr.
880 344130920 37.65 45.56
Grease Tube 50 gr. SF 011 1,8oz
885 344130560 32.27 39.05
No information available, not orderable
1001 338505810
