Here you will find all available parts and drawings of the 'Metabo 01104001 ( WBA11-150QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

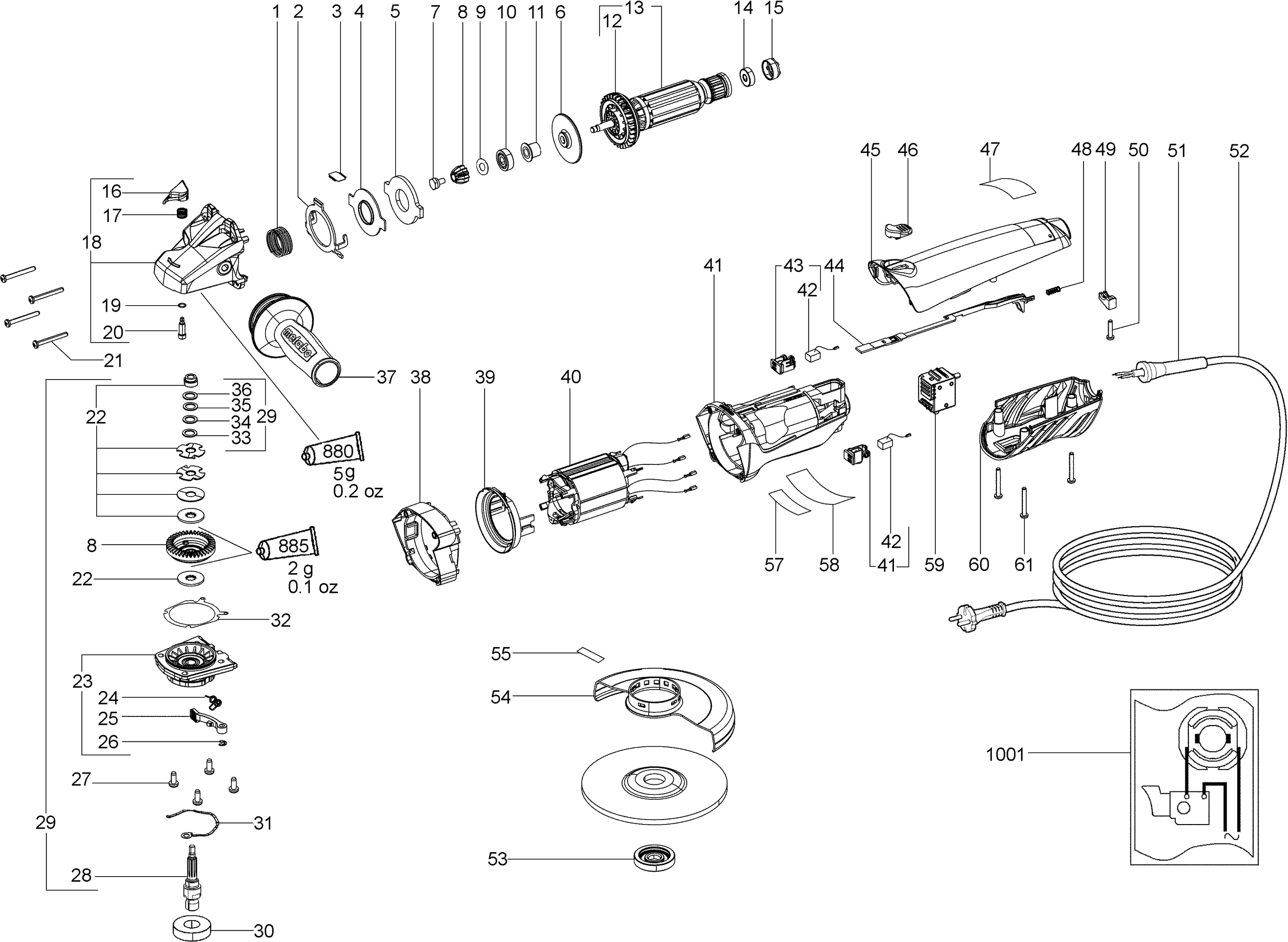

Technical drawing of model Metabo 01104001 ( WBA11-150QUICK )

Spare parts list of model Metabo 01104001 ( WBA11-150QUICK )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Pressure spring
1 342003410 1.55 1.88
Schakelhendel
2 339132990 4.51 5.46
Schutzblech
3 339160760 1.67 2.02
Draagplaat
4 339132980 3.02 3.65
Remvoering
5 339011590 7.22 8.74
Brake disc
6 341012810 24.23 29.32
Bevestigingsschroef
7 341704170 3.71 4.49
Gear set Safety coupling
8 316041740 18.80 22.75
Washer,7.05x19.5x0.2
9 339006390 1.55 1.88
Groefkogellager,8x22x7
10 143115700 3.02 3.65
No information available, not orderable
11 341005710
Waaier m. stofbescherming
12 316041450 5.18 6.27
Anker compl.,230V
13 310009190 74.13 89.70
Groefkogellager,6x19x6
14 143115690 2.28 2.76
Bus rubber
15 344097870 1.55 1.88
Push button red
16 343393650 1.55 1.88
Pressure spring
17 342003390 1.55 1.88
Tandwielhuis compl.
18 316041620 26.95 32.61
O-ring
19 143193650 1.55 1.88
Bolt
20 341515280 1.55 1.88
Self-tap. fill. h. screw
21 141116990 1.67 2.02
Frictieschijf compl.
22 316041650 12.23 14.80
Flange with tension lever complete
23 316041720 26.95 32.61
Spring clip
24 342022040 1.55 1.88
Lever
25 341070440 3.02 3.65
Borgschijf
26 141181810 1.55 1.88
Fillister head screw
27 141123660 1.55 1.88
Slijpspil compl.
28 341161410 107.70 130.32
Safety coupling
29 316050970 161.61 195.55
Aandrukveer
31 342050840 1.55 1.88
Gasket
32 339011570 1.55 1.88
Washer 10.2 X 14.8 X 0.2
33 141151120 1.55 1.88
Washer 10.2 X 14.8 X 0.1
34 141152300 1.67 2.02
Washer 10.2 X 14.8 X 1.0
35 141155550 1.55 1.88
Washer 10,2 X 14,8X 0,5
36 141153920 1.55 1.88
Anti-Vibration Handle, M 8
37 314000970 13.48 16.31
Tussenflens
38 343393570 5.87 7.10
Luchtgeleidingsschijf
39 339151070 3.02 3.65
Field
40 311010730 60.59 73.31
Motor housing
41 315013230 8.89 10.76
No information available, not orderable
42 316047230
Brush Holder compl. shutdown,230V
43 316045170 10.38 12.56
Schakelstang
44 343393540 1.55 1.88
Deksel v. huis
45 343393560 4.51 5.46
Schakelschuif
46 343392980 1.55 1.88
M-Plate 99 49-52x22
47 338121660 3.02 3.65
Pressure spring
48 342003420 1.55 1.88
Cable clip
49 343362490 1.67 2.02
Self-tap fill h screw
50 141116020 1.67 2.02
Kabeldoorvoer
51 344100970 1.67 2.02
Kabel m. CEE-stekker
52 344497150 16.25 19.66
Quick clamping nut
53 316023660 16.25 19.66
Protective Cap, D150
54 339204510 10.38 12.56
No information available, not orderable
55 399999990
Typeplaatje
57 338057460 1.55 1.88
No information available, not orderable
58 399999990
Schakelaar
59 343409430 8.89 10.76
Housing with black cover
60 343395610 3.71 4.49
Fillister head screw
61 141123490 1.55 1.88
Tube vet 100 gr.
880 344130920 37.65 45.56
Grease Tube 50 gr. SF 011 1,8oz
885 344130560 32.27 39.05
No information available, not orderable
1001 338504650
