Here you will find all available parts and drawings of the 'Metabo 01101000 ( WA11-125QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

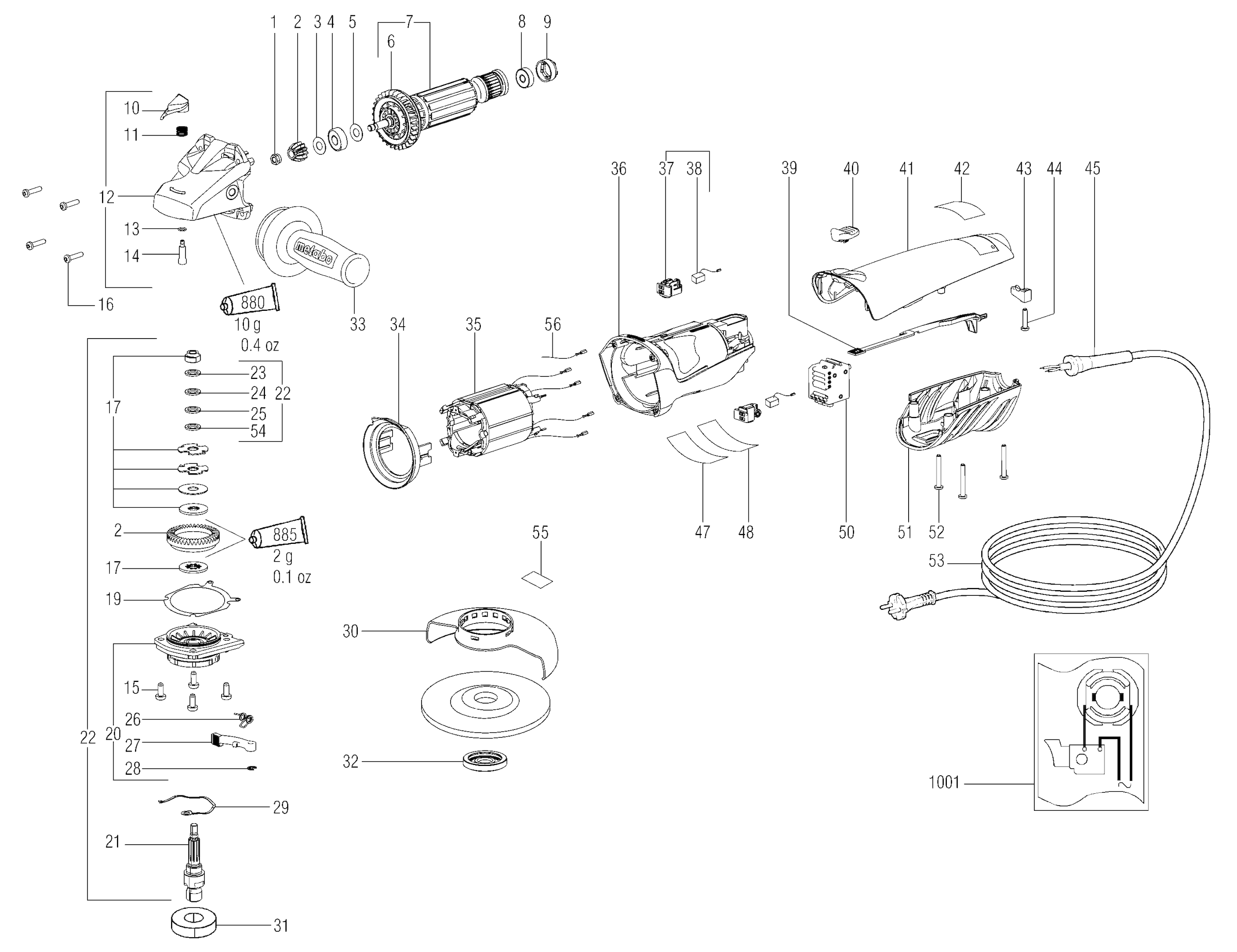

Technical drawing of model Metabo 01101000 ( WA11-125QUICK )

Spare parts list of model Metabo 01101000 ( WA11-125QUICK )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Zeskantmoer
1 341102140 1.55 1.88
Tandwiel set Veiligheidskoppeling
2 316041660 16.25 19.66
Washer,7.05x19.5x0.2
3 339006390 1.55 1.88
No information available, not orderable
4 143115180
Washer
5 339132280 1.55 1.88
Waaier m. stofbescherming
6 316041450 5.18 6.27
Anker compl.,230V
7 310009150 87.60 106.00
Groefkogellager,6x19x6
8 143115690 2.28 2.76
Bus rubber
9 344097870 1.55 1.88
Push button red
10 343393650 1.55 1.88
Pressure spring
11 342003390 1.55 1.88
Tandwielhuis compl.
12 316041620 26.95 32.61
O-ring
13 143193650 1.55 1.88
Bolt
14 341515280 1.55 1.88
Fillister head screw
15 141123660 1.55 1.88
Self-tap fill h screw
16 141116020 1.67 2.02
Frictieschijf compl.
17 316041650 12.23 14.80
Gasket
19 339011570 1.55 1.88
Flange with tension lever complete
20 316041720 26.95 32.61
Spindle shaft
21 341161070 18.80 22.75
Veiligheidskoppeling
22 316043380 67.33 81.47
Washer 10.2 X 14.8 X 0.2
23 141151120 1.55 1.88
Washer 10.2 X 14.8 X 0.1
24 141152300 1.67 2.02
Washer 10.2 X 14.8 X 1.0
25 141155550 1.55 1.88
Spring clip
26 342022040 1.55 1.88
Lever
27 341070440 3.02 3.65
Borgschijf
28 141181810 1.55 1.88
Aandrukveer
29 342050840 1.55 1.88
Beschermkap,D125
30 339204500 8.89 10.76
Auto balancer
31 341147870 48.48 58.66
Quick clamping nut
32 316023660 16.25 19.66
Anti-Vibration Handle, M 8
33 314000970 13.48 16.31
Luchtgeleidingsschijf
34 339151040 1.67 2.02
Field
35 311010730 60.59 73.31
Motor housing
36 315013230 8.89 10.76
Brush Holder compl. shutdown,230V
37 316045170 10.38 12.56
No information available, not orderable
38 316047230
Schakelstang
39 343393530 1.55 1.88
Schakelschuif
40 343392980 1.55 1.88
Deksel v. huis
41 343393460 5.18 6.27
M-Plate 99 49-52x22
42 338121660 3.02 3.65
Cable clip
43 343362490 1.67 2.02
Self-tap fill h screw
44 141116020 1.67 2.02
Kabeldoorvoer
45 344100970 1.67 2.02
No information available, not orderable
47 338050640
No information available, not orderable
48 399999990
Schakelaar
50 343409430 8.89 10.76
Housing with black cover
51 343395610 3.71 4.49
Fillister head screw
52 141123490 1.55 1.88
Kabel m. CEE-stekker
53 344497150 16.25 19.66
Washer 10,2 X 14,8X 0,5
54 141153920 1.55 1.88
No information available, not orderable
55 399999990
No information available, not orderable
56 399999990
Tube vet 100 gr.
880 344130920 37.65 45.56
Grease Tube 50 gr. SF 011 1,8oz
885 344130560 32.27 39.05
No information available, not orderable
1001 338504650
