Here you will find all available parts and drawings of the 'Metabo 03608001 ( W850-125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

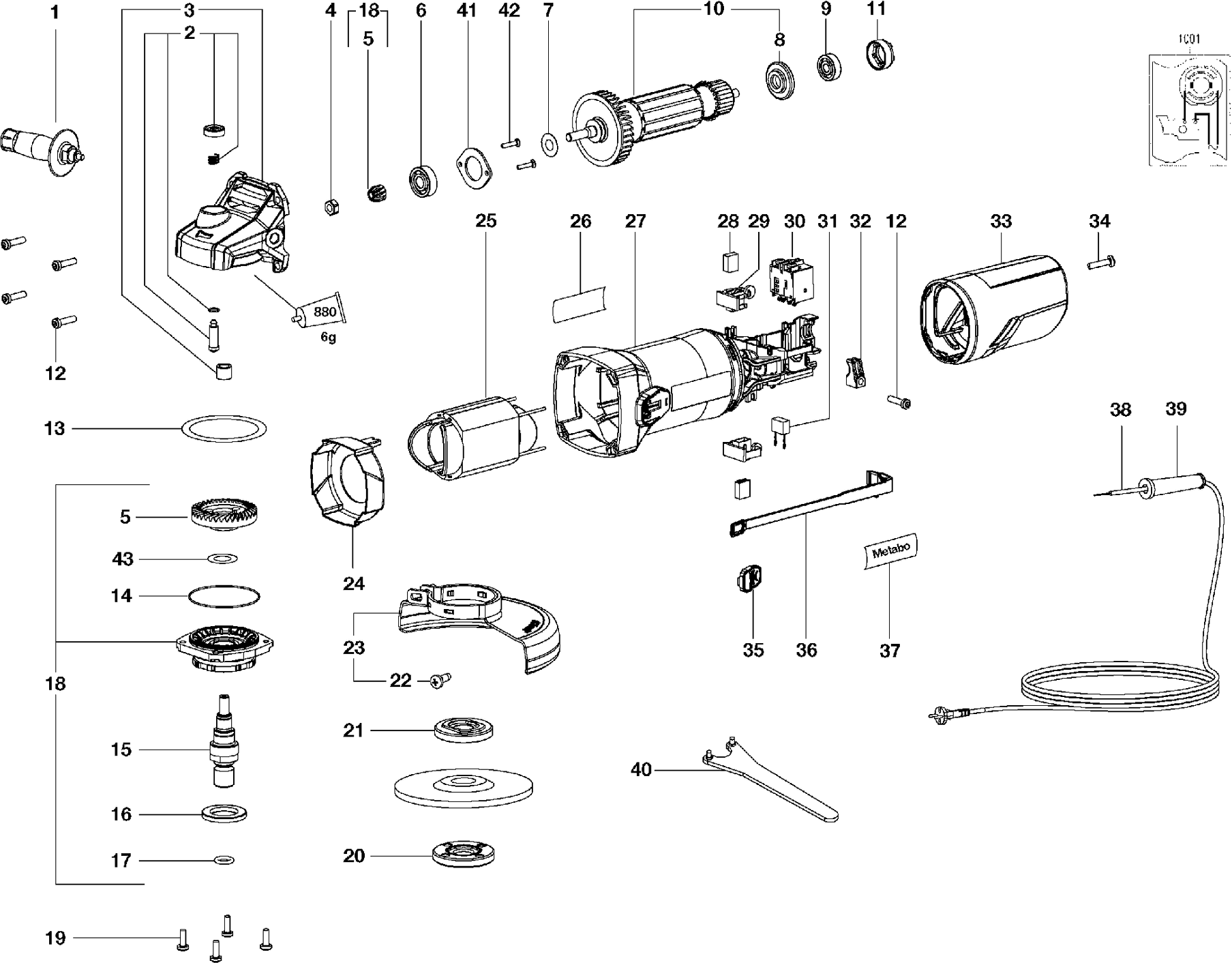

Technical drawing of model Metabo 03608001 ( W850-125 )
Spare parts list of model Metabo 03608001 ( W850-125 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000540 | 11.74 | 14.21 | |
| Tandwielhuis compl. | ||||
| 3 | 316097510 | 16.25 | 19.66 | |
| Zeskante moer | ||||
| 4 | 141130100 | 1.55 | 1.88 | |
| Ball bearing, 8X 22X 7 | ||||
| 6 | 143116020 | 3.02 | 3.65 | |
| Centrifugeerschijf | ||||
| 8 | 343392740 | 4.51 | 5.46 | |
| Kogellager 6x19x 6 | ||||
| 9 | 143115870 | 3.71 | 4.49 | |
| ARMATURE 230V | ||||
| 10 | 310013390 | 37.65 | 45.56 | |
| Rubber bus | ||||
| 11 | 344095260 | 1.67 | 2.02 | |
| O-ring 48 x 1 | ||||
| 14 | 344097550 | 1.55 | 1.88 | |
| Spindle gear M14 | ||||
| 15 | 341605710 | 5.18 | 6.27 | |
| Complete flange | ||||
| 18 | 316071360 | 18.80 | 22.75 | |
| Lensschroef | ||||
| 22 | 141124060 | 1.55 | 1.88 | |
| Luchtgeleiderschijf | ||||
| 24 | 339151280 | 1.55 | 1.88 | |
| Field package,230V | ||||
| 25 | 311013280 | 24.23 | 29.32 | |
| Carbon brush holder compl. | ||||
| 28 | 316098370 | 4.51 | 5.46 | |
| Carbon brush holder compl. | ||||
| 29 | 316098380 | 7.22 | 8.74 | |
| Switch,S125D 230V | ||||
| 30 | 343412680 | 10.38 | 12.56 | |
| CAPACITOR | ||||
| 31 | 343255280 | 2.28 | 2.76 | |
| Schakelschuif | ||||
| 35 | 343412110 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 36 | 343446390 | 1.55 | 1.88 | |
| Metabo-plaatje | ||||
| 37 | 338122540 | 1.55 | 1.88 | |
| Kabel m.CEE-stekker | ||||
| 38 | 344499540 | 12.23 | 14.80 | |
| Kabeldoorvoer | ||||
| 39 | 343446380 | 1.55 | 1.88 | |
| Pennensleutel | ||||
| 40 | 344163920 | 3.02 | 3.65 | |
| Vaste lagerdeksel | ||||
| 41 | 315420080 | 1.55 | 1.88 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
