Here you will find all available parts and drawings of the 'Metabo 03607001 ( W850-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

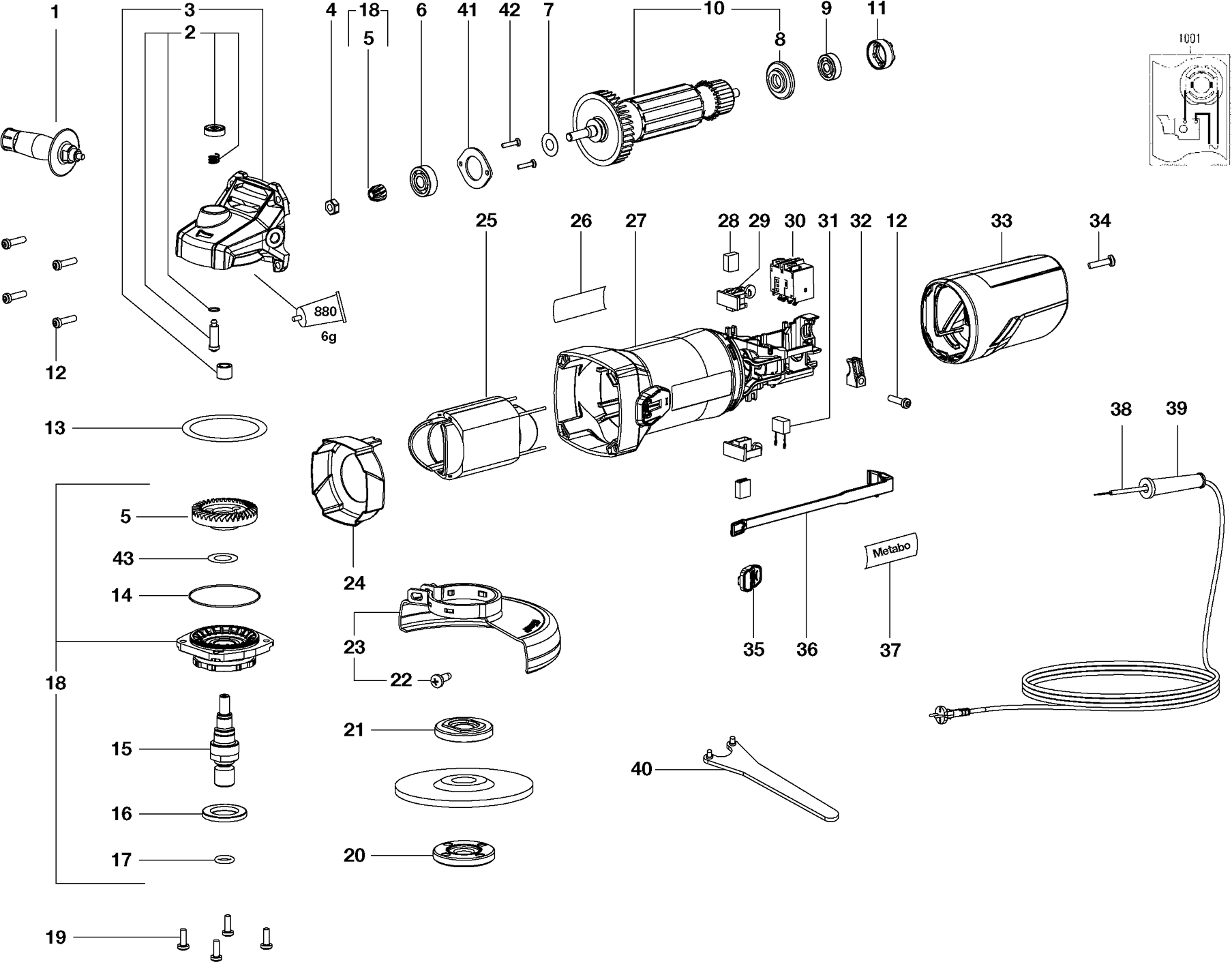

Technical drawing of model Metabo 03607001 ( W850-115 )

Spare parts list of model Metabo 03607001 ( W850-115 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Handgreep compl.
1 314000540 11.74 14.21
Spindle stop compl.
2 316040610 3.02 3.65
Tandwielhuis compl.
3 316097510 16.25 19.66
Zeskante moer
4 141130100 1.56 1.89
GEAR
5 316071370 8.89 10.76
Ball bearing 8x22x7
6 143116270 3.71 4.49
Ball bearing, 8X 22X 7
6 143116020 3.02 3.65
Washer
7 339007940 1.56 1.89
Centrifugeerschijf
8 343392740 4.51 5.46
Kogellager 6x19x 6
9 143115870 3.71 4.49
ARMATURE 230V
10 310013390 37.65 45.56
Rubber bus
11 344095260 1.68 2.03
Self-tap fill h screw
12 141116020 1.68 2.03
Compensating Washer
13 339060160 1.68 2.03
O-ring 48 x 1
14 344097550 1.56 1.89
O-RING
14 344103340 1.56 1.89
Spindle gear M14
15 341605710 5.18 6.27
Washer
16 339007790 1.56 1.89
O-ring
17 143192540 1.56 1.89
Complete flange
18 316071360 18.80 22.75
Fill. head screw
19 141120070 1.56 1.89
Flange nut
20 341106900 8.89 10.76
Clamping flange
21 341031160 11.74 14.21
Lensschroef
22 141124060 1.56 1.89
Protection cap, D 115
23 339209510 4.51 5.46
Luchtgeleiderschijf
24 339151280 1.56 1.89
Field package,230V
25 311013280 24.23 29.32
Typeplaatje
26 338070130 1.68 2.03
Motor housing
27 315013900 5.87 7.10
Carbon brush holder compl.
28 316098370 4.51 5.46
Carbon brush holder compl.
29 316098380 7.22 8.74
Switch,S125D 230V
30 343412680 10.38 12.56
CAPACITOR
31 343255280 2.28 2.76
Cable clip
32 343362490 1.68 2.03
Motor Hood
33 343453710 3.02 3.65
Self-tap. fill. h. screw
34 141116800 1.56 1.89
Schakelschuif
35 343412110 1.56 1.89
Schakelstang
36 343446390 1.56 1.89
Metabo-plaatje
37 338122540 1.56 1.89
Kabel m.CEE-stekker
38 344499540 12.23 14.80
Kabeldoorvoer
39 343446380 1.56 1.89
Pennensleutel
40 344163920 3.02 3.65
Vaste lagerdeksel
41 315420080 1.56 1.89
Fillister head screw
42 141110460 1.56 1.89
Washer
43 141156520 1.56 1.89
Tube of grease 100 gr.
880 344130910 13.48 16.31
No information available, not orderable
1001 338506590
