Here you will find all available parts and drawings of the 'Metabo 06702000 (W780)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

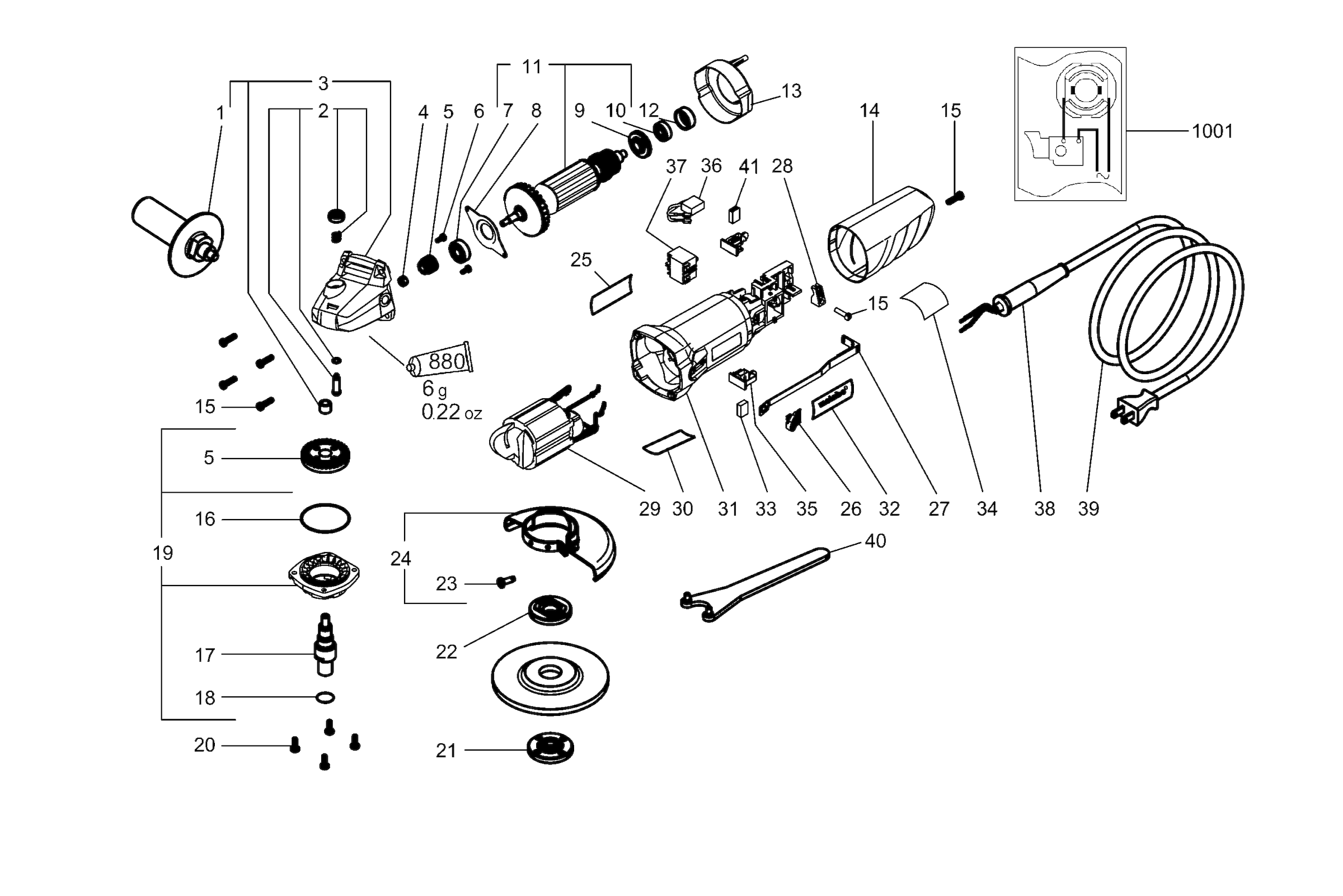

Technical drawing of model Metabo 06702000 (W780)
Spare parts list of model Metabo 06702000 (W780)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000540 | 12.19 | 14.75 | |
| Spindle stop compl. | ||||
| 2 | 316040610 | 3.20 | 3.87 | |
| Tandwielhuis compl. | ||||
| 3 | 316046070 | 27.16 | 32.86 | |
| Zeskante moer | ||||
| 4 | 141130100 | 1.67 | 2.02 | |
| Bevel gear and pinion | ||||
| 5 | 316051070 | 18.28 | 22.12 | |
| Fillister head screw | ||||
| 6 | 141110460 | 1.67 | 2.02 | |
| Kogellager 8x22x 7 | ||||
| 7 | 143115420 | 6.05 | 7.32 | |
| Vaste lagerdeksel | ||||
| 8 | 315417490 | 1.67 | 2.02 | |
| Centrifugeerschijf | ||||
| 9 | 343392740 | 4.78 | 5.78 | |
| Kogellager 6x19x 6 | ||||
| 10 | 143115870 | 3.89 | 4.71 | |
| No information available, not orderable | ||||
| 11 | 310010480 | |||
| Rubber bus | ||||
| 12 | 344095260 | 1.79 | 2.17 | |
| Luchtgeleidingsschijf | ||||
| 13 | 343399200 | 1.67 | 2.02 | |
| Motor cap | ||||
| 14 | 343399190 | 3.89 | 4.71 | |
| Self-tap fill h screw | ||||
| 15 | 141116020 | 1.79 | 2.17 | |
| O-ring 48 x 1 | ||||
| 16 | 344097550 | 1.67 | 2.02 | |
| Spindle gear M14 | ||||
| 17 | 341161150 | 7.58 | 9.17 | |
| O-ring | ||||
| 18 | 143192540 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 19 | 341032210 | |||
| Fill. head screw | ||||
| 20 | 141120070 | 1.67 | 2.02 | |
| Flange nut | ||||
| 21 | 341106900 | 9.36 | 11.33 | |
| Clamping flange | ||||
| 22 | 341031160 | 12.19 | 14.75 | |
| Fill. head screw(DIN 7985) | ||||
| 23 | 141121640 | 1.67 | 2.02 | |
| Protective cover compl., Ø125 | ||||
| 24 | 339203670 | 10.82 | 13.09 | |
| No longer available, no replacement | ||||
| 25 | 338122160 | |||
| Schakelaar | ||||
| 26 | 343409810 | 2.43 | 2.94 | |
| Schakelstang | ||||
| 27 | 343399170 | 1.67 | 2.02 | |
| Cable clip | ||||
| 28 | 343362490 | 1.79 | 2.17 | |
| Field coil compl.,230V | ||||
| 29 | 311011230 | 27.16 | 32.86 | |
| No information available, not orderable | ||||
| 30 | 338054200 | |||
| Motor housing | ||||
| 31 | 343399180 | 9.36 | 11.33 | |
| Metabo-plaatje | ||||
| 32 | 338122540 | 1.67 | 2.02 | |
| Switchable Carbon Brush Set | ||||
| 33 | 316047440 | 4.78 | 5.78 | |
| No information available, not orderable | ||||
| 34 | 399999990 | |||
| Koolborstelhouder | ||||
| 35 | 343012950 | 2.43 | 2.94 | |
| Capacitor, 230v | ||||
| 36 | 343254290 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 37 | 343408260 | 5.49 | 6.64 | |
| Kabelbescherming | ||||
| 38 | 344097360 | 1.67 | 2.02 | |
| Kabel m. stekker | ||||
| 39 | 344498420 | 7.58 | 9.17 | |
| Pennensleutel | ||||
| 40 | 344163920 | 3.20 | 3.87 | |
| Koolborstel set | ||||
| 41 | 316049670 | 10.82 | 13.09 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 1001 | 338504470 | |||
