Here you will find all available parts and drawings of the 'Metabo 03605000 ( W750-125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

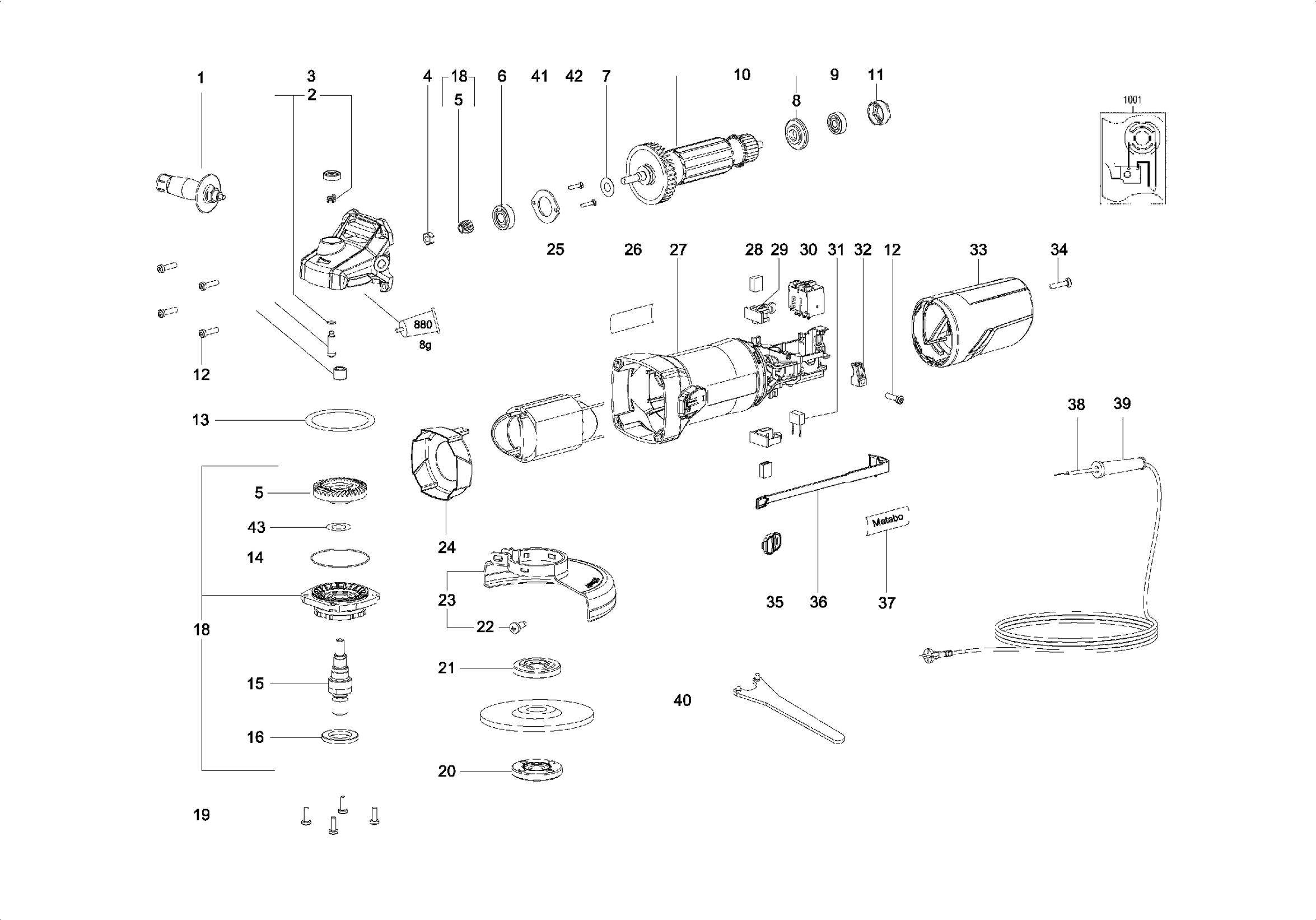

Technical drawing of model Metabo 03605000 ( W750-125 )
Spare parts list of model Metabo 03605000 ( W750-125 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000540 | 11.74 | 14.21 | |
| Spindle stop compl. | ||||
| 2 | 316040610 | 3.02 | 3.65 | |
| Complete gear housing | ||||
| 3 | 316098360 | 16.25 | 19.66 | |
| Zeskante moer | ||||
| 4 | 141130100 | 1.55 | 1.88 | |
| GEAR | ||||
| 5 | 316098350 | 8.89 | 10.76 | |
| Ball bearing, 8X 22X 7 | ||||
| 6 | 143116020 | 3.02 | 3.65 | |
| Washer | ||||
| 7 | 339007940 | 1.55 | 1.88 | |
| Centrifugeerschijf | ||||
| 8 | 343392740 | 4.51 | 5.46 | |
| Kogellager 6x19x 6 | ||||
| 9 | 143115870 | 3.71 | 4.49 | |
| Anker compl.,230V | ||||
| 10 | 310013010 | 26.95 | 32.61 | |
| Rubber bus | ||||
| 11 | 344095260 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 12 | 141116020 | 1.67 | 2.02 | |
| Compensating Washer | ||||
| 13 | 339060160 | 1.67 | 2.02 | |
| O-ring 48 x 1 | ||||
| 14 | 344097550 | 1.55 | 1.88 | |
| Spindle gear M14 | ||||
| 15 | 341605710 | 5.18 | 6.27 | |
| Washer | ||||
| 16 | 339007790 | 1.55 | 1.88 | |
| O-ring | ||||
| 17 | 143192540 | 1.55 | 1.88 | |
| Complete flange | ||||
| 18 | 316098320 | 21.64 | 26.18 | |
| Fill. head screw | ||||
| 19 | 141120070 | 1.55 | 1.88 | |
| Flange nut | ||||
| 20 | 341106900 | 8.89 | 10.76 | |
| Clamping flange | ||||
| 21 | 341031160 | 11.74 | 14.21 | |
| Lensschroef | ||||
| 22 | 141124060 | 1.55 | 1.88 | |
| Complete protection cap, D 125 | ||||
| 23 | 339209560 | 8.89 | 10.76 | |
| Luchtgeleiderschijf | ||||
| 24 | 339151280 | 1.55 | 1.88 | |
| Field package,230V | ||||
| 25 | 311013090 | 13.48 | 16.31 | |
| Type plate HK 85 EB 230V | ||||
| 26 | 338071750 | 1.67 | 2.02 | |
| Motor Housing | ||||
| 27 | 315013970 | 5.87 | 7.10 | |
| Carbon brush holder compl. | ||||
| 28 | 316098370 | 4.51 | 5.46 | |
| Carbon brush holder compl. | ||||
| 29 | 316098380 | 7.22 | 8.74 | |
| Switch,S125D 230V | ||||
| 30 | 343412120 | 8.89 | 10.76 | |
| Condensator | ||||
| 31 | 343255170 | 1.67 | 2.02 | |
| Cable clip | ||||
| 32 | 343362490 | 1.67 | 2.02 | |
| Motor Hood | ||||
| 33 | 343449410 | 4.51 | 5.46 | |
| Self-tap. fill. h. screw | ||||
| 34 | 141116800 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 35 | 343412110 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 36 | 343446390 | 1.55 | 1.88 | |
| Metabo-plaatje | ||||
| 37 | 338122540 | 1.55 | 1.88 | |
| Kabel m.CEE-stekker | ||||
| 38 | 344499540 | 12.23 | 14.80 | |
| Kabeldoorvoer | ||||
| 39 | 343446380 | 1.55 | 1.88 | |
| Pennensleutel | ||||
| 40 | 344163920 | 3.02 | 3.65 | |
| Pin spanner | ||||
| 40 | 344164240 | 3.02 | 3.65 | |
| Vaste lagerdeksel | ||||
| 41 | 315420080 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 42 | 141110460 | 1.55 | 1.88 | |
| Washer | ||||
| 43 | 141156520 | 1.55 | 1.88 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338510270 | |||
