Here you will find all available parts and drawings of the 'Metabo 01231001 (W750-125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

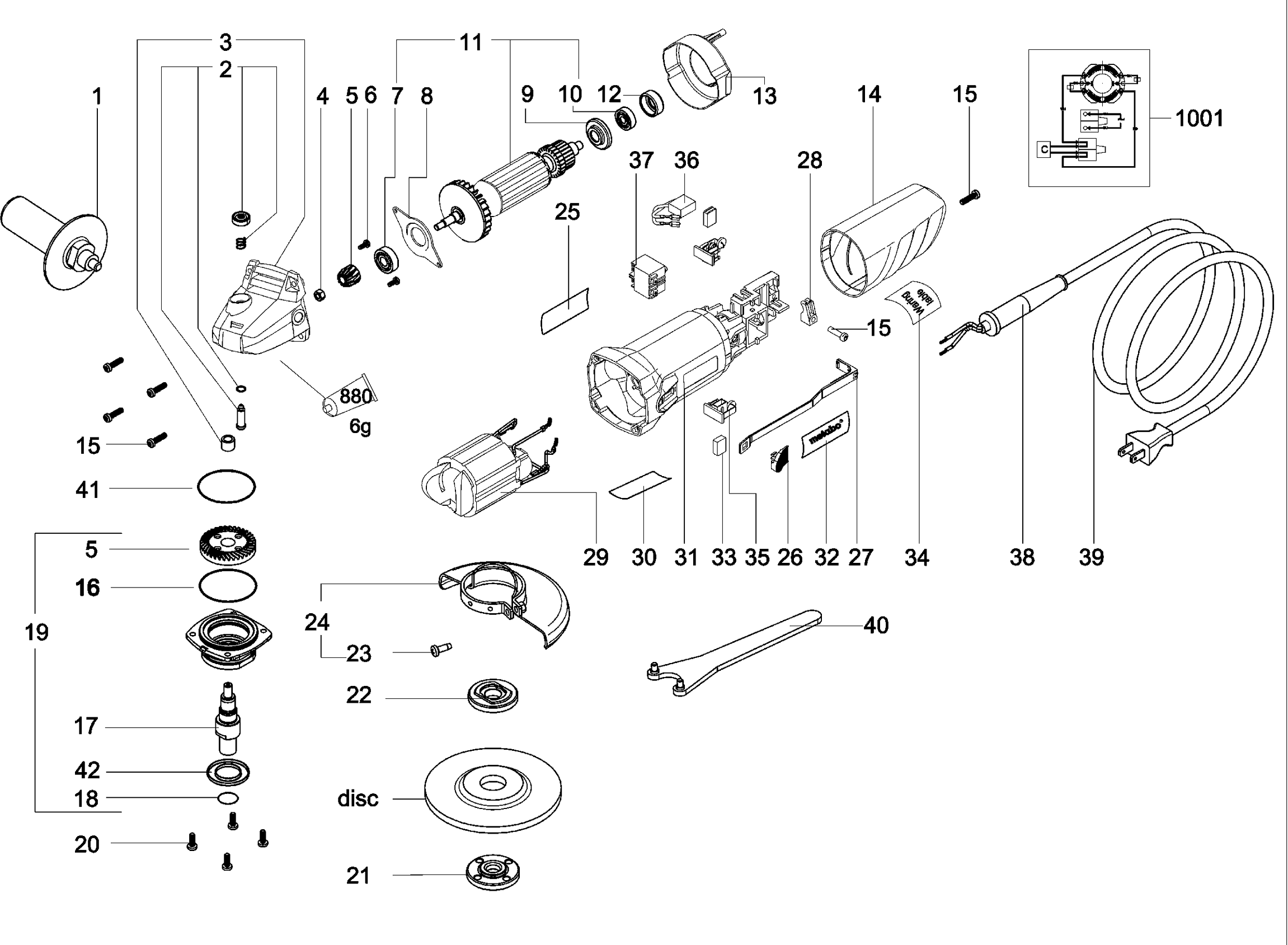

Technical drawing of model Metabo 01231001 (W750-125)
Spare parts list of model Metabo 01231001 (W750-125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000540 | 11.74 | 14.21 | |
| Spindle stop compl. | ||||
| 2 | 316040610 | 3.02 | 3.65 | |
| Tandwielhuis compl. | ||||
| 3 | 316063640 | 26.95 | 32.61 | |
| Zeskantmoer | ||||
| 4 | 341100940 | 1.68 | 2.03 | |
| Bevel gear and pinion | ||||
| 5 | 316057810 | 21.64 | 26.18 | |
| Fillister head screw | ||||
| 6 | 141110460 | 1.56 | 1.89 | |
| Kogellager 8x22x 7 | ||||
| 7 | 143115420 | 5.87 | 7.10 | |
| Vaste lagerdeksel | ||||
| 8 | 315417490 | 1.56 | 1.89 | |
| Centrifugeerschijf | ||||
| 9 | 343392740 | 4.51 | 5.46 | |
| Kogellager 6x19x 6 | ||||
| 10 | 143115870 | 3.71 | 4.49 | |
| Anker compl.,230V | ||||
| 11 | 310011980 | 48.48 | 58.66 | |
| Rubber bus | ||||
| 12 | 344095260 | 1.68 | 2.03 | |
| Luchtgeleiderschijf | ||||
| 13 | 343399430 | 1.56 | 1.89 | |
| Cover | ||||
| 14 | 343399450 | 3.71 | 4.49 | |
| Self-tap fill h screw | ||||
| 15 | 141116020 | 1.68 | 2.03 | |
| O-ring | ||||
| 16 | 143195920 | 1.56 | 1.89 | |
| Spindle gear M14 | ||||
| 17 | 341161150 | 7.22 | 8.74 | |
| O-ring | ||||
| 18 | 143192540 | 1.56 | 1.89 | |
| Flens compl. | ||||
| 19 | 316063780 | 32.27 | 39.05 | |
| Fill. head screw | ||||
| 20 | 141120070 | 1.56 | 1.89 | |
| Flange nut | ||||
| 21 | 341106900 | 8.89 | 10.76 | |
| Clamping flange | ||||
| 22 | 341031160 | 11.74 | 14.21 | |
| Lensschroef | ||||
| 23 | 141124060 | 1.56 | 1.89 | |
| Wheel guard compl., D 125 | ||||
| 24 | 339204770 | 18.80 | 22.75 | |
| Complete protection cap, D 125 | ||||
| 24 | 339209560 | 8.89 | 10.76 | |
| No longer available, no replacement | ||||
| 25 | 338122160 | |||
| Schakelschuif rood | ||||
| 26 | 343410510 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 27 | 343399170 | 1.56 | 1.89 | |
| Cable clip | ||||
| 28 | 343362490 | 1.68 | 2.03 | |
| Field | ||||
| 29 | 311012770 | 32.27 | 39.05 | |
| Typeplaatje | ||||
| 30 | 338065820 | 1.56 | 1.89 | |
| Motor housing | ||||
| 31 | 343399440 | 8.89 | 10.76 | |
| Motor Housing | ||||
| 31 | 343444830 | 8.89 | 10.76 | |
| Metabo-plaatje | ||||
| 32 | 338122540 | 1.56 | 1.89 | |
| Koolborstel compl. | ||||
| 33 | 316052770 | 10.38 | 12.56 | |
| Koolborstelhouder | ||||
| 35 | 343012950 | 2.28 | 2.76 | |
| Condensator | ||||
| 36 | 343255030 | 3.02 | 3.65 | |
| Schakelaar,EPXe 230 V | ||||
| 37 | 343411020 | 16.25 | 19.66 | |
| Switch, (230V+RSP) | ||||
| 37 | 343411880 | 10.38 | 12.56 | |
| Kabelbescherming | ||||
| 38 | 344097360 | 1.56 | 1.89 | |
| Kabel m.CEE-stekker | ||||
| 39 | 344499540 | 12.23 | 14.80 | |
| Pennensleutel | ||||
| 40 | 344163920 | 3.02 | 3.65 | |
| Compensating Washer | ||||
| 41 | 339060160 | 1.68 | 2.03 | |
| Washer | ||||
| 42 | 339007790 | 1.56 | 1.89 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338504470 | |||
