Here you will find all available parts and drawings of the 'Metabo 18101001 ( W72100 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

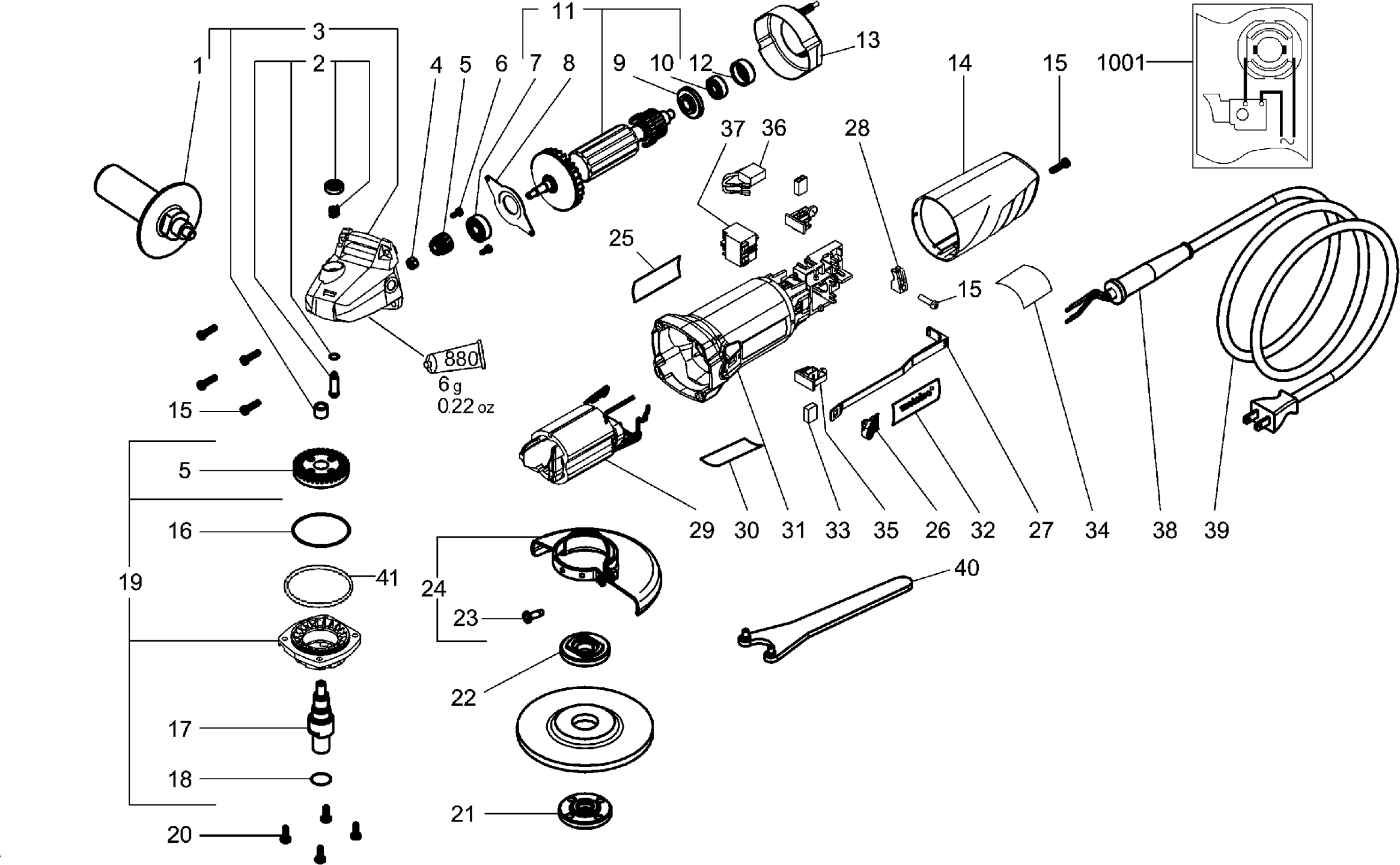

Technical drawing of model Metabo 18101001 ( W72100 )
Spare parts list of model Metabo 18101001 ( W72100 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000540 | 11.74 | 14.21 | |
| Spindle stop compl. | ||||
| 2 | 316040610 | 3.02 | 3.65 | |
| Tandwielhuis compl. | ||||
| 3 | 316063640 | 26.95 | 32.61 | |
| Zeskantmoer | ||||
| 4 | 341100940 | 1.67 | 2.02 | |
| Bevel gear and pinion | ||||
| 5 | 316051030 | 16.25 | 19.66 | |
| Fillister head screw | ||||
| 6 | 141110460 | 1.55 | 1.88 | |
| Kogellager 8x22x 7 | ||||
| 7 | 143115420 | 5.87 | 7.10 | |
| Vaste lagerdeksel | ||||
| 8 | 315417490 | 1.55 | 1.88 | |
| Centrifugeerschijf | ||||
| 9 | 343392740 | 4.51 | 5.46 | |
| Kogellager 6x19x 6 | ||||
| 10 | 143115870 | 3.71 | 4.49 | |
| Anker compl.,230V | ||||
| 11 | 310011980 | 48.48 | 58.66 | |
| Rubber bus | ||||
| 12 | 344095260 | 1.67 | 2.02 | |
| Luchtgeleiderschijf | ||||
| 13 | 343399430 | 1.55 | 1.88 | |
| Cover | ||||
| 14 | 343399450 | 3.71 | 4.49 | |
| Self-tap fill h screw | ||||
| 15 | 141116020 | 1.67 | 2.02 | |
| O-ring | ||||
| 16 | 143195920 | 1.55 | 1.88 | |
| Spindle | ||||
| 17 | 341604180 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 18 | 399999990 | |||
| No information available, not orderable | ||||
| 19 | 316064050 | |||
| Fill. head screw | ||||
| 20 | 141120070 | 1.55 | 1.88 | |
| Clamp nut v.supports. (gro | ||||
| 21 | 341102050 | 5.18 | 6.27 | |
| Clamping flange | ||||
| 22 | 341031890 | 3.02 | 3.65 | |
| Fill. head screw(DIN 7985) | ||||
| 23 | 141121640 | 1.55 | 1.88 | |
| Protective cover compl., Ø100 | ||||
| 24 | 339203650 | 8.89 | 10.76 | |
| No longer available, no replacement | ||||
| 25 | 338122160 | |||
| Schakelschuif | ||||
| 26 | 343392080 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 27 | 343399170 | 1.55 | 1.88 | |
| Cable clip | ||||
| 28 | 343362490 | 1.67 | 2.02 | |
| Field | ||||
| 29 | 311012770 | 32.27 | 39.05 | |
| Typeplaatje | ||||
| 30 | 338055520 | 1.55 | 1.88 | |
| Motor housing | ||||
| 31 | 343399440 | 8.89 | 10.76 | |
| Motor Housing | ||||
| 31 | 343444830 | 8.89 | 10.76 | |
| Metabo-plaatje | ||||
| 32 | 338122540 | 1.55 | 1.88 | |
| Koolborstel compl. | ||||
| 33 | 316052770 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 34 | 399999990 | |||
| Koolborstelhouder | ||||
| 35 | 343012950 | 2.28 | 2.76 | |
| Condensator | ||||
| 36 | 343255030 | 3.02 | 3.65 | |
| Schakelaar | ||||
| 37 | 343408260 | 5.18 | 6.27 | |
| Kabelbescherming | ||||
| 38 | 344097360 | 1.55 | 1.88 | |
| Kabel m. stekker | ||||
| 39 | 344498420 | 7.22 | 8.74 | |
| Pennensleutel | ||||
| 40 | 344163930 | 2.28 | 2.76 | |
| Compensating Washer | ||||
| 41 | 339060160 | 1.67 | 2.02 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338504470 | |||
