Here you will find all available parts and drawings of the 'Metabo 06440000 ( W21-180 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

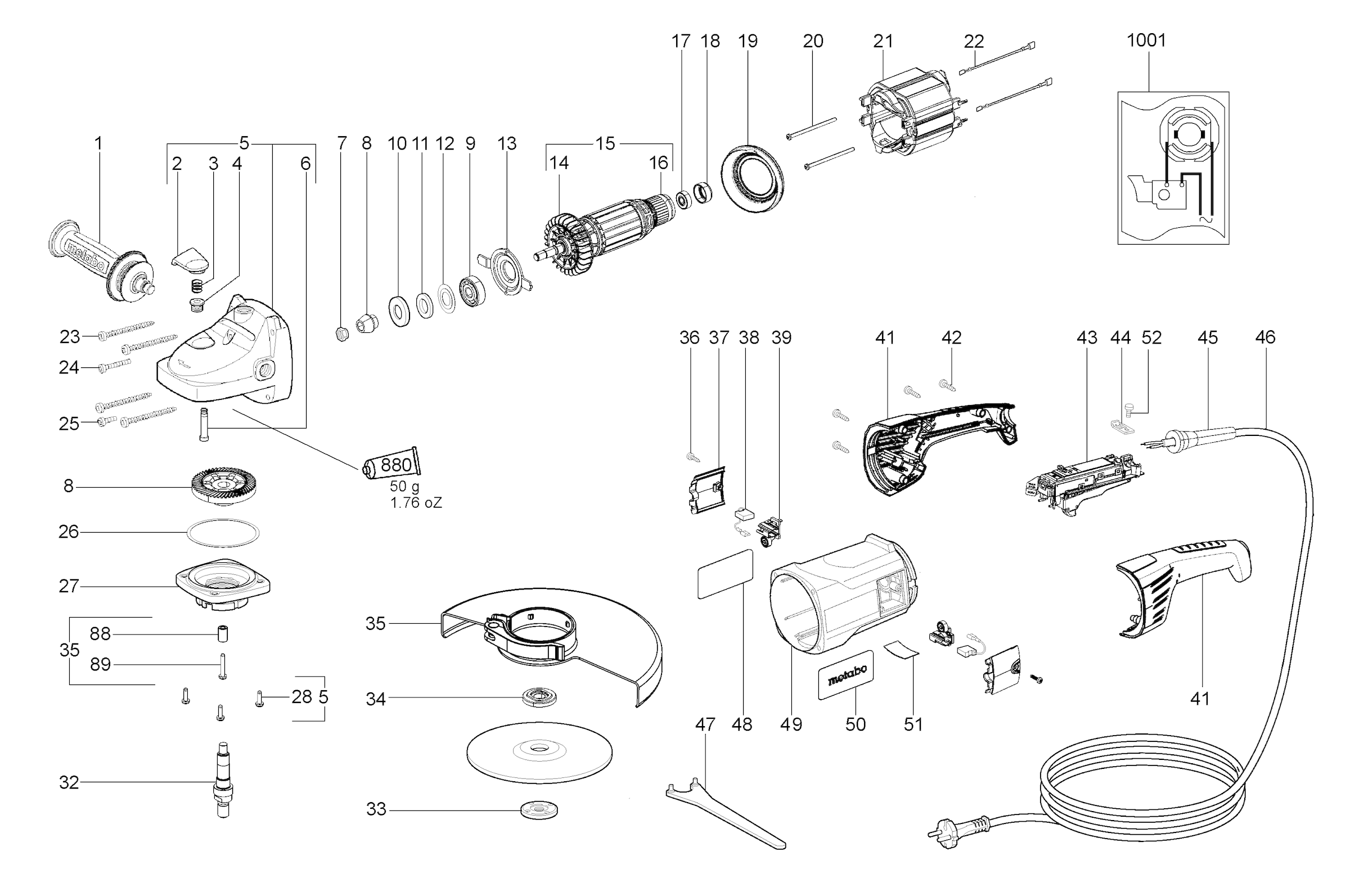

Technical drawing of model Metabo 06440000 ( W21-180 )
Spare parts list of model Metabo 06440000 ( W21-180 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anti-Vibration Handle, M 14 | ||||
| 1 | 314000960 | 24.23 | 29.32 | |
| Push button | ||||
| 2 | 343376440 | 2.28 | 2.76 | |
| Pressure spring | ||||
| 3 | 342001730 | 1.55 | 1.88 | |
| Geleidingsbus | ||||
| 4 | 341003970 | 3.71 | 4.49 | |
| Tandwielhuis compl. | ||||
| 5 | 316031720 | 53.86 | 65.17 | |
| Thrust bolt | ||||
| 6 | 341513810 | 1.67 | 2.02 | |
| Zeskantmoer | ||||
| 7 | 341100660 | 3.02 | 3.65 | |
| Tandwiel set | ||||
| 8 | 316025280 | 67.33 | 81.47 | |
| Kogellager 12x37x12 | ||||
| 9 | 143115230 | 7.22 | 8.74 | |
| Afstandsring | ||||
| 10 | 341011510 | 5.18 | 6.27 | |
| elt ring | ||||
| 11 | 143192440 | 3.02 | 3.65 | |
| Cover washer | ||||
| 12 | 339070080 | 1.67 | 2.02 | |
| Vaste lagerdeksel | ||||
| 13 | 339007280 | 3.02 | 3.65 | |
| Waaier m. Stofbeschermkorf | ||||
| 14 | 316045560 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 15 | 310009480 | |||
| Centrifugeerschijf | ||||
| 16 | 343390630 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 17 | 143113400 | |||
| No information available, not orderable | ||||
| 18 | 344094080 | |||
| No information available, not orderable | ||||
| 19 | 339151160 | |||
| Self-tap. fill. h. screw | ||||
| 20 | 141121680 | 1.55 | 1.88 | |
| Field coil | ||||
| 21 | 311009590 | 60.59 | 73.31 | |
| Verbindingsdraad | ||||
| 22 | 344493690 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 23 | 141119370 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 24 | 141122020 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 25 | 141119850 | 1.55 | 1.88 | |
| Pakkingring | ||||
| 26 | 339060140 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 27 | 316045800 | |||
| Fill. head screw(DIN 7985) | ||||
| 28 | 141121640 | 1.55 | 1.88 | |
| Pan head screw,(DIN 7985) | ||||
| 29 | 141123890 | 1.55 | 1.88 | |
| Borgschijf | ||||
| 31 | 141181500 | 1.55 | 1.88 | |
| Spindle shaft | ||||
| 32 | 341602980 | 26.95 | 32.61 | |
| Flange nut | ||||
| 33 | 341106900 | 8.89 | 10.76 | |
| Clamping flange | ||||
| 34 | 341031160 | 11.74 | 14.21 | |
| Beschermkap compl. | ||||
| 35 | 316053530 | 60.59 | 73.31 | |
| Screw | ||||
| 36 | 341702050 | 1.55 | 1.88 | |
| Cover Pine Green | ||||
| 37 | 343376430 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 38 | 316045790 | |||
| Koolborstelhouder | ||||
| 39 | 343000770 | 5.87 | 7.10 | |
| Handgreep boven/onderdeel | ||||
| 41 | 343398260 | 11.74 | 14.21 | |
| Self-tap fill h screw | ||||
| 42 | 141116020 | 1.67 | 2.02 | |
| Switch, 230V/120V | ||||
| 43 | 343409150 | 18.80 | 22.75 | |
| Cable clip | ||||
| 44 | 339127730 | 1.55 | 1.88 | |
| Kabelbescherming | ||||
| 45 | 344094550 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 46 | 344487800 | 16.25 | 19.66 | |
| Pin wrench | ||||
| 47 | 344160840 | 5.18 | 6.27 | |
| Aanduidingsplaatje | ||||
| 48 | 338117330 | 1.55 | 1.88 | |
| Motor housing pine green | ||||
| 49 | 315012760 | 21.64 | 26.18 | |
| Metabo plaatje | ||||
| 50 | 338122080 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 51 | 338052810 | |||
| Self-tap. fill. h. screw | ||||
| 52 | 141116800 | 1.55 | 1.88 | |
| Afstandsbus | ||||
| 88 | 341006090 | 1.55 | 1.88 | |
| Cilinderkopschroef | ||||
| 89 | 141111340 | 1.55 | 1.88 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338502110 | |||
