Here you will find all available parts and drawings of the 'Metabo 18112000 (W20230)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

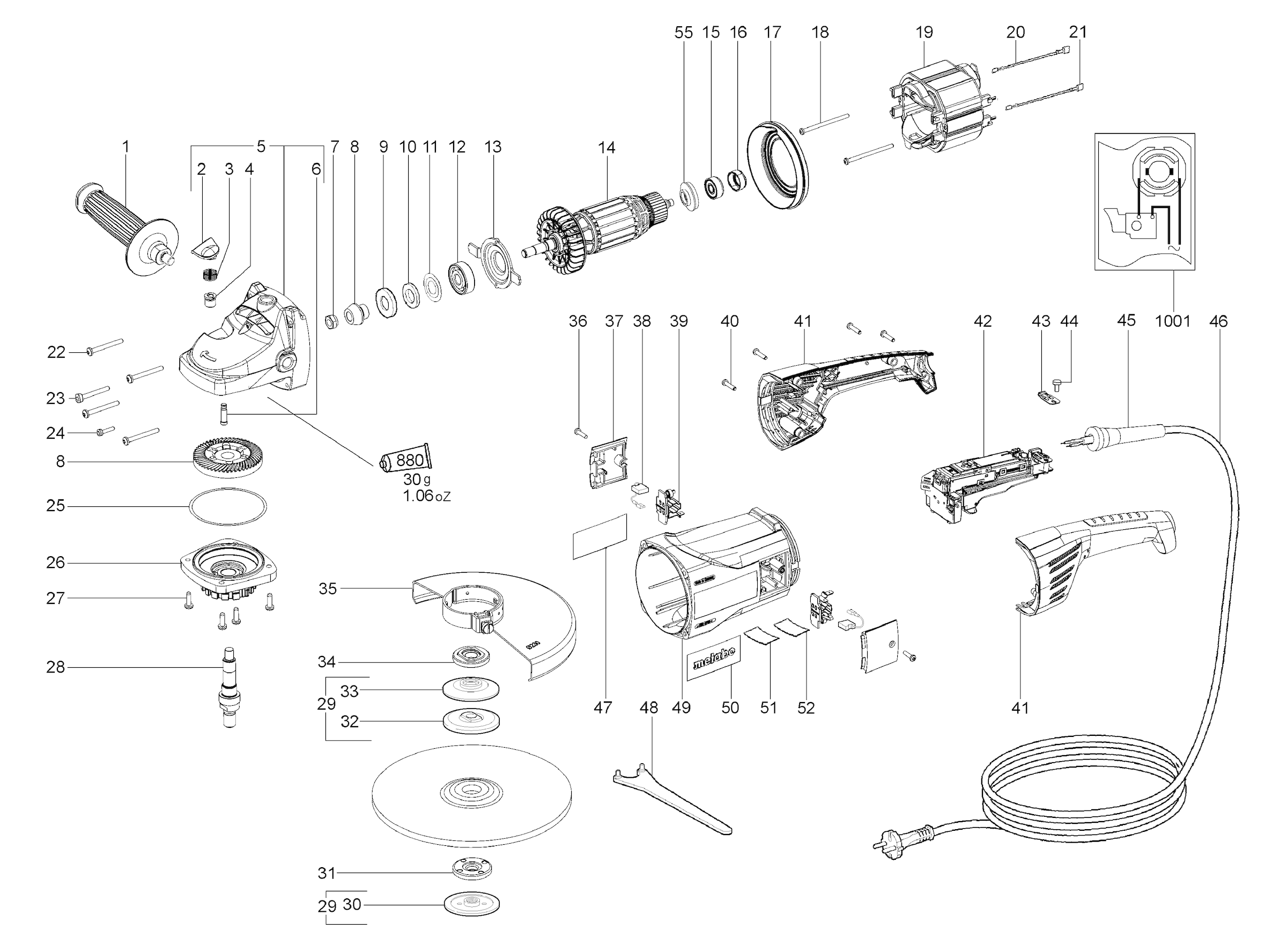

Technical drawing of model Metabo 18112000 (W20230)
Spare parts list of model Metabo 18112000 (W20230)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreep compl. | ||||
| 1 | 314000280 | 18.28 | 22.12 | |
| Push button | ||||
| 2 | 343376440 | 2.43 | 2.94 | |
| Pressure spring | ||||
| 3 | 342001730 | 1.67 | 2.02 | |
| Geleidingsbus | ||||
| 4 | 341003970 | 3.89 | 4.71 | |
| Tandwielhuis compl. | ||||
| 5 | 316031720 | 57.79 | 69.93 | |
| Thrust bolt | ||||
| 6 | 341513810 | 1.79 | 2.17 | |
| Zeskantmoer | ||||
| 7 | 341100660 | 3.20 | 3.87 | |
| Tandwiel set | ||||
| 8 | 316045530 | 57.79 | 69.93 | |
| Afstandsring | ||||
| 9 | 341011510 | 5.49 | 6.64 | |
| elt ring | ||||
| 10 | 143192440 | 3.20 | 3.87 | |
| Cover washer | ||||
| 11 | 339070080 | 1.79 | 2.17 | |
| Kogellager 12x37x12 | ||||
| 12 | 143115230 | 7.58 | 9.17 | |
| Vaste lagerdeksel | ||||
| 13 | 339007280 | 3.20 | 3.87 | |
| Anker compl. | ||||
| 14 | 316094250 | 94.99 | 114.94 | |
| No information available, not orderable | ||||
| 15 | 143113400 | |||
| No information available, not orderable | ||||
| 16 | 344094080 | |||
| Luchtgeleidingsschijf | ||||
| 17 | 339150950 | 3.20 | 3.87 | |
| Self-tap. fill. h. screw | ||||
| 18 | 141121680 | 1.67 | 2.02 | |
| Field | ||||
| 19 | 311012600 | 70.83 | 85.70 | |
| Verbindingsdraad | ||||
| 20 | 344493690 | 1.79 | 2.17 | |
| Self-tap. fill. h. screw | ||||
| 22 | 141119370 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 23 | 141122020 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 24 | 141124800 | 1.67 | 2.02 | |
| Pakkingring | ||||
| 25 | 339060140 | 1.79 | 2.17 | |
| Complete Gear Flange, D 230 | ||||
| 26 | 316047470 | 27.16 | 32.86 | |
| Fill. head screw(DIN 7985) | ||||
| 27 | 141121640 | 1.67 | 2.02 | |
| Spindle | ||||
| 28 | 341604160 | 13.93 | 16.86 | |
| Flange nut | ||||
| 31 | 341106900 | 9.36 | 11.33 | |
| Clamping flange | ||||
| 34 | 341031160 | 12.19 | 14.75 | |
| Protective Cap compl.,D 230 | ||||
| 35 | 316045000 | 24.26 | 29.35 | |
| Screw | ||||
| 36 | 341702050 | 1.67 | 2.02 | |
| Cover Pine Green | ||||
| 37 | 343376430 | 1.79 | 2.17 | |
| Koolborstelset 230 V | ||||
| 38 | 316047480 | 12.19 | 14.75 | |
| Koolborstelhouder | ||||
| 39 | 343000770 | 6.05 | 7.32 | |
| Self-tap fill h screw | ||||
| 40 | 141116020 | 1.79 | 2.17 | |
| Handgreep boven/onderdeel | ||||
| 41 | 343398260 | 12.19 | 14.75 | |
| Switch, 230V/120V | ||||
| 42 | 343409150 | 21.22 | 25.68 | |
| Cable clip | ||||
| 43 | 339127730 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 44 | 141116800 | 1.67 | 2.02 | |
| Kabelbescherming | ||||
| 45 | 344094550 | 2.43 | 2.94 | |
| Kabel m. CEE-stekker | ||||
| 46 | 344487800 | 18.28 | 22.12 | |
| Aanduidingsplaatje | ||||
| 47 | 338117340 | 1.67 | 2.02 | |
| Pin wrench | ||||
| 48 | 344160840 | 5.49 | 6.64 | |
| Motor housing pine green | ||||
| 49 | 315012760 | 24.26 | 29.35 | |
| Metabo plaatje | ||||
| 50 | 338122080 | 3.20 | 3.87 | |
| Rating plate | ||||
| 51 | 338055890 | 1.67 | 2.02 | |
| Centrifugeerschijf | ||||
| 55 | 343435570 | 1.67 | 2.02 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 1001 | 338502110 | |||
