Here you will find all available parts and drawings of the 'Metabo 00165000 (W18LTX125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

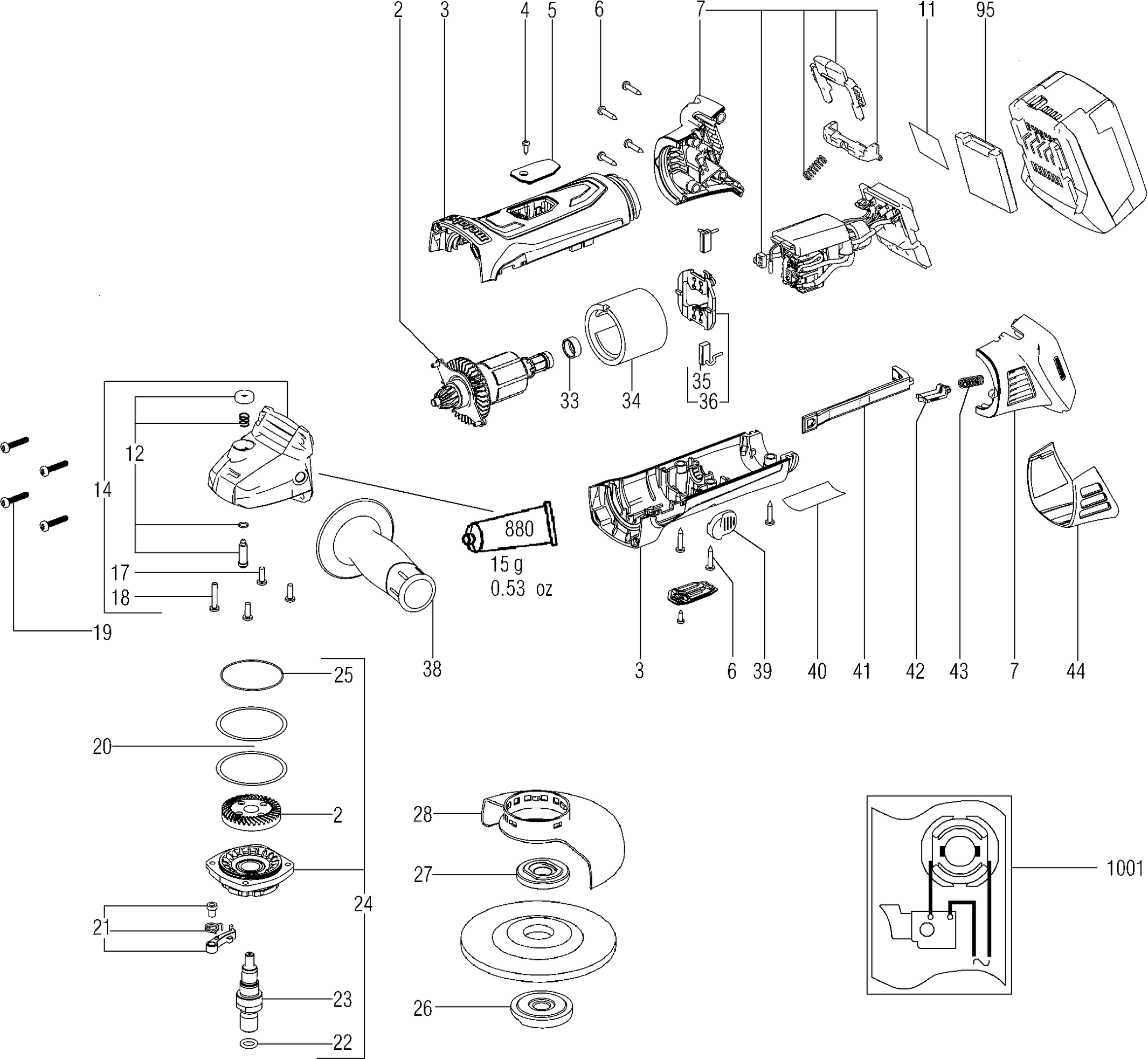

Technical drawing of model Metabo 00165000 (W18LTX125)
Spare parts list of model Metabo 00165000 (W18LTX125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Aandrijving m.Anker compl. | ||||
| 2 | 316061840 | 128.32 | 155.27 | |
| Motor Housing | ||||
| 3 | 343398580 | 21.64 | 26.18 | |
| Self-tapp. fill. h. screw | ||||
| 4 | 141119900 | 1.56 | 1.89 | |
| Koolborsteldeksel | ||||
| 5 | 343398600 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 6 | 141113180 | 1.56 | 1.89 | |
| Huis compl. | ||||
| 7 | 316049680 | 100.74 | 121.90 | |
| Type plate HK 85 EB 230V | ||||
| 11 | 338075530 | 1.67 | 2.02 | |
| Spindle stop compl. | ||||
| 12 | 316040610 | 3.02 | 3.65 | |
| Tandwielhuis compl. | ||||
| 14 | 316047570 | 32.27 | 39.05 | |
| Lensschroef | ||||
| 17 | 141124090 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 19 | 141117060 | 1.68 | 2.03 | |
| Compensating washer | ||||
| 20 | 339011860 | 1.56 | 1.89 | |
| Pennensleutel | ||||
| 21 | 344163920 | 3.02 | 3.65 | |
| O-ring | ||||
| 22 | 143193920 | 5.87 | 7.10 | |
| Spindle gear M14 | ||||
| 23 | 341161150 | 7.22 | 8.74 | |
| Gear Flange, M14 | ||||
| 24 | 316047960 | 24.23 | 29.32 | |
| O-ring 48 x 1 | ||||
| 25 | 344097550 | 1.56 | 1.89 | |
| Flange nut | ||||
| 26 | 341106900 | 8.89 | 10.76 | |
| Clamping flange | ||||
| 27 | 341031160 | 11.74 | 14.21 | |
| Protection cover, D 125 | ||||
| 28 | 339209500 | 8.89 | 10.76 | |
| Lensschroef | ||||
| 29 | 141124060 | 1.56 | 1.89 | |
| Bus rubber | ||||
| 33 | 344098740 | 1.56 | 1.89 | |
| Field package compl., 2 poles | ||||
| 34 | 311011880 | 53.86 | 65.17 | |
| Koolborstelset | ||||
| 35 | 316060540 | 10.38 | 12.56 | |
| Carbon brush holder compl., 18 V | ||||
| 36 | 316053210 | 12.23 | 14.80 | |
| Handgreep compl. | ||||
| 38 | 314000540 | 11.74 | 14.21 | |
| Switch slide ,H/L | ||||
| 39 | 343397810 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 41 | 339136560 | 3.02 | 3.65 | |
| Steunstift | ||||
| 42 | 343398620 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 43 | 342003030 | 1.56 | 1.89 | |
| Tube of grease GF 078 100Gr 3,6oz | ||||
| 880 | 344130840 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338505280 | |||
