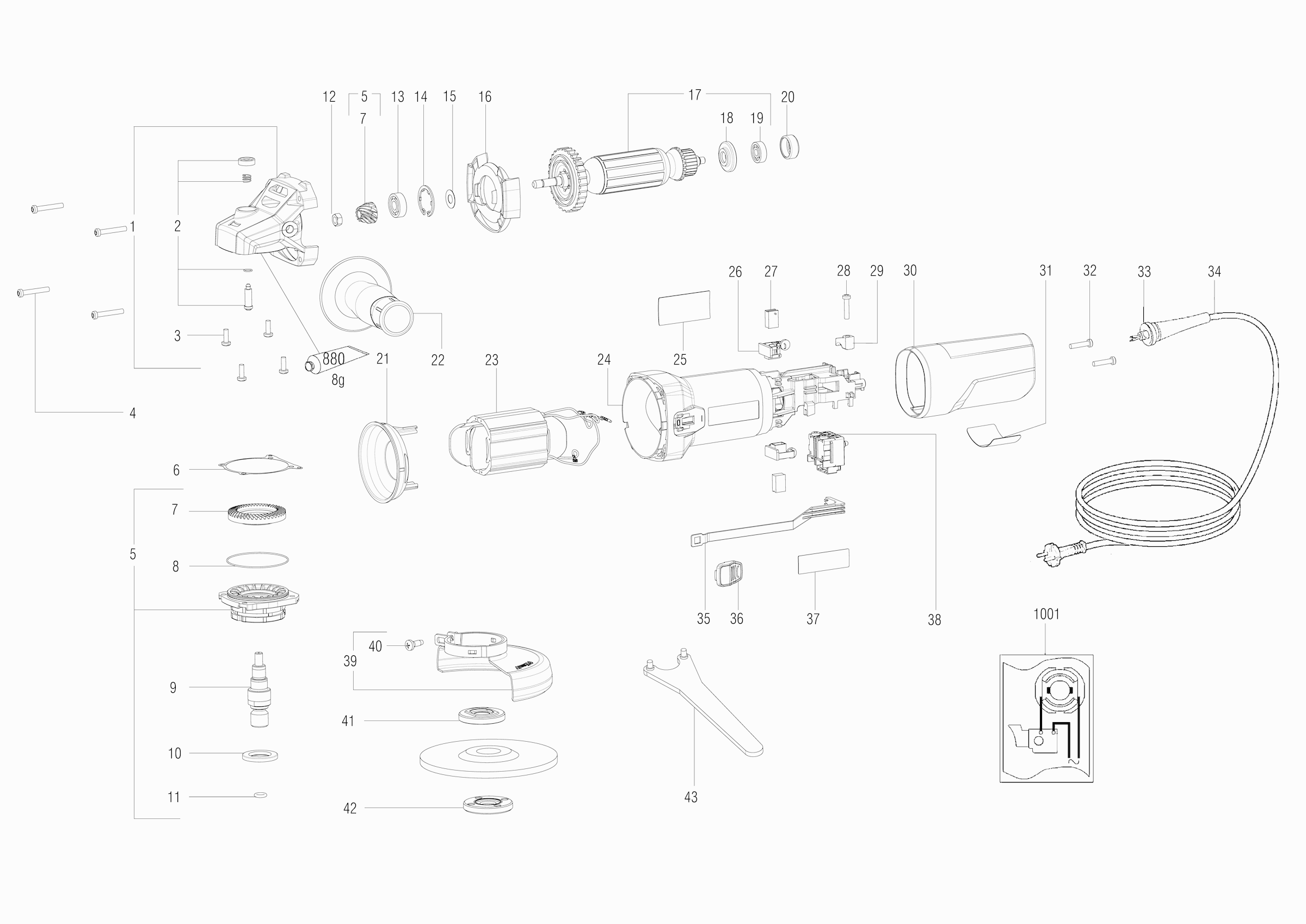

Technical drawing of model Metabo 03613000 (W1100-115)
Spare parts list of model Metabo 03613000 (W1100-115)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tandwielhuis compl. | ||||
| 1 | 316097440 | 21.64 | 26.18 | |
| Spindle stop compl. | ||||
| 2 | 316040610 | 3.02 | 3.65 | |
| Fill. head screw | ||||
| 3 | 141120070 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 4 | 141123940 | 1.56 | 1.89 | |
| Flens compl. | ||||
| 5 | 316097430 | 32.27 | 39.05 | |
| Compensating Washer | ||||
| 6 | 339013130 | 1.56 | 1.89 | |
| Bevel gear and pinion | ||||
| 7 | 316097550 | 13.48 | 16.31 | |
| O-ring 48 x 1 | ||||
| 8 | 344097550 | 1.56 | 1.89 | |
| O-RING | ||||
| 8 | 344103340 | 1.56 | 1.89 | |
| Spil tandwiel | ||||
| 9 | 341166740 | 5.87 | 7.10 | |
| Washer | ||||
| 10 | 339007790 | 1.56 | 1.89 | |
| O-ring | ||||
| 11 | 143192540 | 1.56 | 1.89 | |
| Moer zeskant | ||||
| 12 | 341102660 | 1.56 | 1.89 | |
| Ball bearing 8x22x7 | ||||
| 13 | 143116270 | 3.71 | 4.49 | |
| Ball bearing, 8X 22X 7 | ||||
| 13 | 143116020 | 3.02 | 3.65 | |
| Retaining ring | ||||
| 14 | 141156650 | 1.56 | 1.89 | |
| Washer | ||||
| 15 | 339007940 | 1.56 | 1.89 | |
| Luchtgeleidingsschijf | ||||
| 16 | 339153550 | 1.56 | 1.89 | |
| Anker compl.,230V | ||||
| 17 | 310012720 | 43.15 | 52.21 | |
| Centrifugeerschijf | ||||
| 18 | 343392740 | 4.51 | 5.46 | |
| Kogellager 6x19x 6 | ||||
| 19 | 143115870 | 3.71 | 4.49 | |
| Rubber Sleeve | ||||
| 20 | 344114190 | 1.56 | 1.89 | |
| Luchtgeleiderschijf | ||||
| 21 | 339151290 | 1.56 | 1.89 | |
| Handgreep compl. | ||||
| 22 | 314000540 | 11.74 | 14.21 | |
| Field | ||||
| 23 | 311012800 | 26.95 | 32.61 | |
| Motor housing | ||||
| 24 | 315013930 | 8.89 | 10.76 | |
| Rating plate | ||||
| 25 | 338070250 | 2.28 | 2.76 | |
| Koolborstelhouder compl. | ||||
| 26 | 316097600 | 10.38 | 12.56 | |
| Carbon Brush replacement 230V | ||||
| 27 | 343013500 | 7.22 | 8.74 | |
| Self-tap fill h screw | ||||
| 28 | 141116020 | 1.68 | 2.03 | |
| Cable clip | ||||
| 29 | 343362490 | 1.68 | 2.03 | |
| Motor Cap with EU | ||||
| 30 | 343447070 | 4.51 | 5.46 | |
| Self-tap. fill. h. screw | ||||
| 32 | 141118730 | 1.56 | 1.89 | |
| Kabeldoorvoer | ||||
| 33 | 343446380 | 1.56 | 1.89 | |
| Kabel m.CEE-stekker | ||||
| 34 | 344499540 | 12.23 | 14.80 | |
| Shifter Rod | ||||
| 35 | 343446480 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 36 | 343437100 | 1.56 | 1.89 | |
| Metabo-plaatje | ||||
| 37 | 338122540 | 1.56 | 1.89 | |
| Switch,FPCe 230 V | ||||
| 38 | 343411110 | 18.80 | 22.75 | |
| Wheel guard compl.,Ø115 | ||||
| 39 | 339209540 | 8.89 | 10.76 | |
| Lensschroef | ||||
| 40 | 141124060 | 1.56 | 1.89 | |
| Clamping flange | ||||
| 41 | 341031160 | 11.74 | 14.21 | |
| Flange nut | ||||
| 42 | 341106900 | 8.89 | 10.76 | |
| Pennensleutel | ||||
| 43 | 344163920 | 3.02 | 3.65 | |
| Pin spanner | ||||
| 43 | 344164240 | 3.02 | 3.65 | |
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338504470 | |||
