Here you will find all available parts and drawings of the 'Metabo 01051001 ( W10-150QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

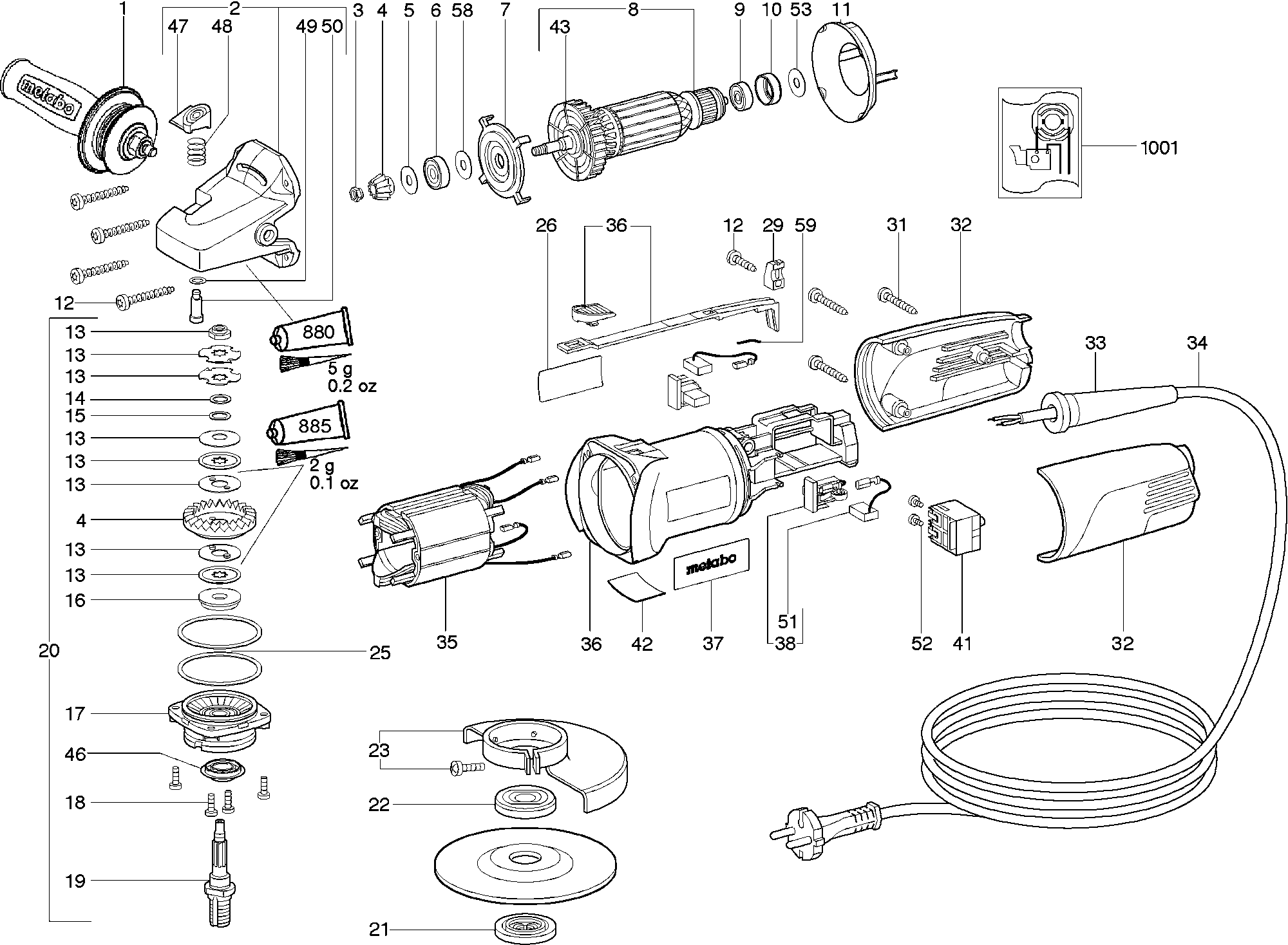

Technical drawing of model Metabo 01051001 ( W10-150QUICK )
Spare parts list of model Metabo 01051001 ( W10-150QUICK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anti-Vibration Handle, M 8 | ||||
| 1 | 314000970 | 13.48 | 16.31 | |
| Tandwielhuis compl. | ||||
| 2 | 316029180 | 48.48 | 58.66 | |
| Zeskantmoer | ||||
| 3 | 341100940 | 1.67 | 2.02 | |
| Tandwiel set | ||||
| 4 | 316030170 | 26.95 | 32.61 | |
| Washer | ||||
| 5 | 339006810 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 6 | 143115180 | |||
| Cover | ||||
| 7 | 343373670 | 2.28 | 2.76 | |
| Anker 230 V | ||||
| 8 | 310007740 | 67.33 | 81.47 | |
| Groefkogellager,6x19x6 | ||||
| 9 | 143115690 | 2.28 | 2.76 | |
| Rubber bus | ||||
| 10 | 344095260 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 11 | 339150890 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 12 | 141116020 | 1.67 | 2.02 | |
| Complete Friction Disc | ||||
| 13 | 316029480 | 11.74 | 14.21 | |
| Washer 10.2 X 14.8 X 1.0 | ||||
| 14 | 141155550 | 1.55 | 1.88 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 15 | 141151120 | 1.55 | 1.88 | |
| Tussenstuk | ||||
| 16 | 341051480 | 2.28 | 2.76 | |
| Flens compl. | ||||
| 17 | 343377210 | 11.74 | 14.21 | |
| Fillister head screw | ||||
| 18 | 141119860 | 1.67 | 2.02 | |
| Spindle shaft | ||||
| 19 | 341161030 | 21.64 | 26.18 | |
| No information available, not orderable | ||||
| 20 | 316039290 | |||
| Quick clamping nut | ||||
| 21 | 316023660 | 16.25 | 19.66 | |
| Clamping flange | ||||
| 22 | 341031160 | 11.74 | 14.21 | |
| Beschermkap compl. | ||||
| 23 | 316035720 | 26.95 | 32.61 | |
| Compensating Washer | ||||
| 25 | 339060160 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 26 | 338042780 | |||
| Cable clip | ||||
| 29 | 343362490 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 31 | 141116990 | 1.67 | 2.02 | |
| Engine hood 2-piece black | ||||
| 32 | 343375690 | 5.87 | 7.10 | |
| Kabeldoorvoer | ||||
| 33 | 344100970 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 34 | 344493180 | 21.64 | 26.18 | |
| Field package m.winding,230V | ||||
| 35 | 311010190 | 60.59 | 73.31 | |
| No longer available, no replacement | ||||
| 37 | 338122160 | |||
| Koolborstelhouder | ||||
| 38 | 316035480 | 11.74 | 14.21 | |
| Schakelaar | ||||
| 41 | 343406740 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 42 | 399999990 | |||
| Fan with dust protection | ||||
| 43 | 316031210 | 10.38 | 12.56 | |
| Centrifugeerschijf | ||||
| 46 | 343375540 | 1.55 | 1.88 | |
| Push button, red | ||||
| 47 | 343394190 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 48 | 342001550 | 1.55 | 1.88 | |
| Afdichtring | ||||
| 49 | 339006520 | 1.55 | 1.88 | |
| Bolt | ||||
| 50 | 341513790 | 3.71 | 4.49 | |
| Koolborstel set | ||||
| 51 | 316035510 | 12.23 | 14.80 | |
| Fillister head screw | ||||
| 52 | 141115780 | 1.55 | 1.88 | |
| Washer | ||||
| 53 | 141153340 | 1.55 | 1.88 | |
| Washer | ||||
| 58 | 339132280 | 1.55 | 1.88 | |
| Rubber snoer | ||||
| 59 | 344097440 | 1.55 | 1.88 | |
| Tube of grease GF 078 100Gr 3,6oz | ||||
| 880 | 344130840 | 13.48 | 16.31 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
