Here you will find all available parts and drawings of the 'Metabo 20002000 (USE8)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

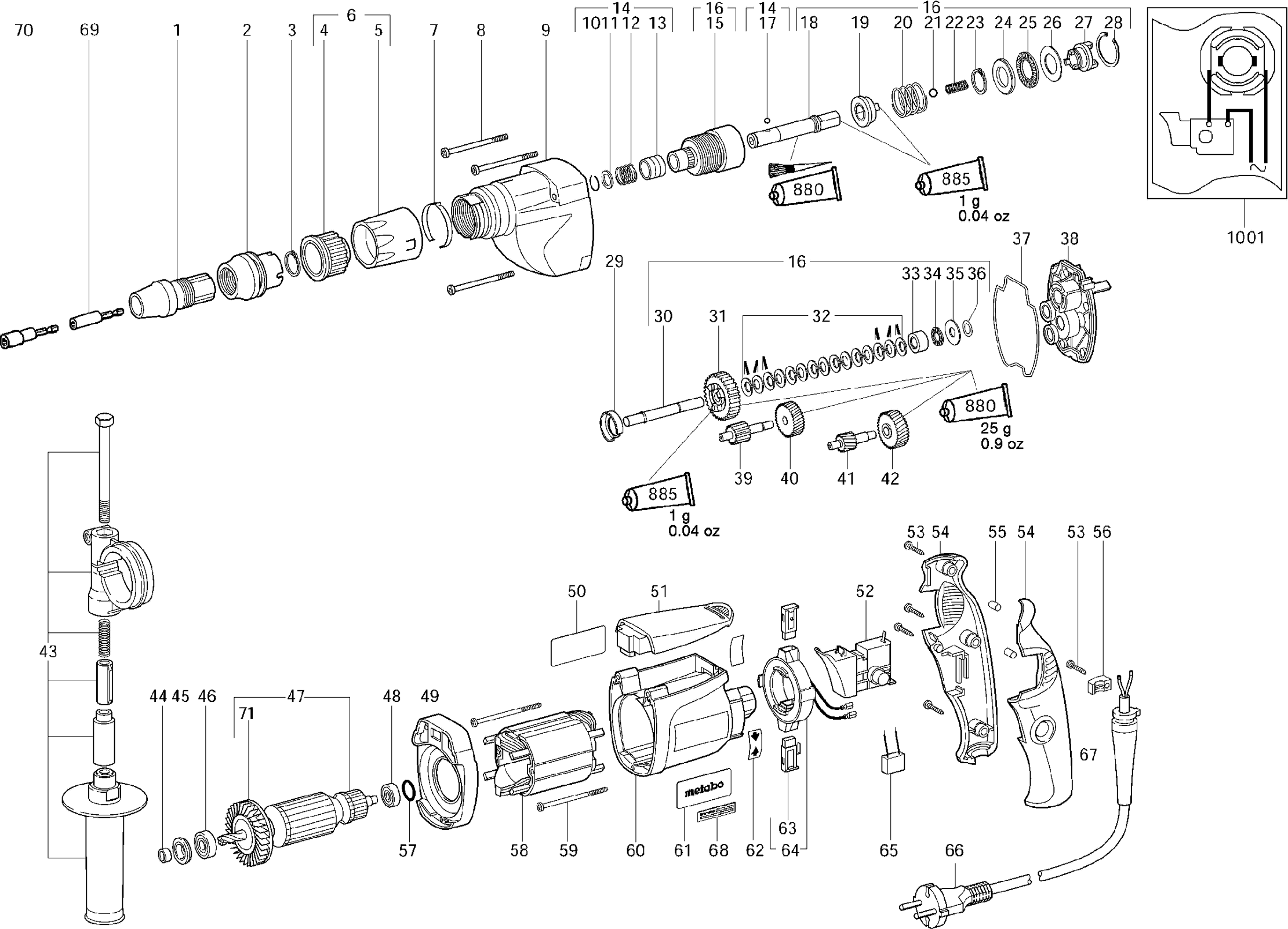

Technical drawing of model Metabo 20002000 (USE8)
Spare parts list of model Metabo 20002000 (USE8)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guide sleeve complete | ||||
| 1 | 316033280 | 11.74 | 14.21 | |
| Dieptegeleider compl. | ||||
| 2 | 316035530 | 43.15 | 52.21 | |
| V-washer | ||||
| 3 | 141155920 | 1.56 | 1.89 | |
| Sleeve | ||||
| 4 | 343378450 | 2.28 | 2.76 | |
| Verstelhuls | ||||
| 5 | 343378460 | 5.87 | 7.10 | |
| Adjusting sleeve complete | ||||
| 6 | 316034130 | 11.74 | 14.21 | |
| Flat spring | ||||
| 7 | 342050770 | 3.02 | 3.65 | |
| Self-tap. fill. h. screw | ||||
| 8 | 141122480 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 9 | 316034110 | 94.12 | 113.89 | |
| Borgveer-ring | ||||
| 10 | 141181150 | 1.56 | 1.89 | |
| Washer | ||||
| 11 | 339006740 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 12 | 342021080 | 1.56 | 1.89 | |
| Sleeve | ||||
| 13 | 341057060 | 5.18 | 6.27 | |
| Quick-release fastener | ||||
| 14 | 316034140 | 11.74 | 14.21 | |
| Bearing sleeve | ||||
| 15 | 341005350 | 26.95 | 32.61 | |
| Complete coupling | ||||
| 16 | 316034120 | 213.88 | 258.79 | |
| Ball | ||||
| 17 | 143120080 | 1.56 | 1.89 | |
| Gereedschapdrager | ||||
| 18 | 341603820 | 48.48 | 58.66 | |
| Dog clutch ring | ||||
| 19 | 341057050 | 11.74 | 14.21 | |
| Pressure spring | ||||
| 20 | 342003040 | 1.56 | 1.89 | |
| Ball | ||||
| 21 | 143120040 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 22 | 342003030 | 1.56 | 1.89 | |
| Borgveer-ring | ||||
| 23 | 141155910 | 1.56 | 1.89 | |
| Bearing plate | ||||
| 24 | 143114780 | 7.22 | 8.74 | |
| Axial needle bearing | ||||
| 25 | 143113090 | 11.74 | 14.21 | |
| Axial disc | ||||
| 26 | 143114770 | 1.56 | 1.89 | |
| Claw disc | ||||
| 27 | 341057190 | 26.95 | 32.61 | |
| Ring | ||||
| 28 | 141180940 | 1.68 | 2.03 | |
| Afstandsbus | ||||
| 29 | 343378740 | 2.28 | 2.76 | |
| Shaft | ||||
| 30 | 341603810 | 10.38 | 12.56 | |
| Cogwheel | ||||
| 31 | 340003450 | 32.27 | 39.05 | |
| Disc spring | ||||
| 32 | 141150520 | 1.68 | 2.03 | |
| Bush | ||||
| 33 | 341080170 | 7.22 | 8.74 | |
| Axiaal-naaldlager | ||||
| 34 | 143113820 | 7.22 | 8.74 | |
| Axial disc | ||||
| 35 | 143114760 | 1.56 | 1.89 | |
| Washer | ||||
| 36 | 141151040 | 1.68 | 2.03 | |
| Vormpakking | ||||
| 37 | 344095910 | 1.68 | 2.03 | |
| Tandwielflens compl. | ||||
| 38 | 316034100 | 43.15 | 52.21 | |
| Tandwielas | ||||
| 39 | 340050060 | 13.48 | 16.31 | |
| Spur gear | ||||
| 40 | 340020090 | 21.64 | 26.18 | |
| Tandwielas | ||||
| 41 | 340012040 | 13.48 | 16.31 | |
| Spur gear | ||||
| 42 | 340020080 | 16.25 | 19.66 | |
| Handgreep compl. | ||||
| 43 | 314000830 | 8.89 | 10.76 | |
| Afdichtring | ||||
| 44 | 343376040 | 1.68 | 2.03 | |
| Rubber buffer | ||||
| 45 | 344095920 | 1.56 | 1.89 | |
| Kogellager 8x22x 7 | ||||
| 46 | 143115800 | 2.28 | 2.76 | |
| Anker 230 V | ||||
| 47 | 310007840 | 107.70 | 130.32 | |
| Ball bearing 6x19x 6 | ||||
| 48 | 143114750 | 3.02 | 3.65 | |
| Tussenflens | ||||
| 49 | 343374260 | 3.02 | 3.65 | |
| Typeplaatje | ||||
| 50 | 338042950 | 1.68 | 2.03 | |
| Cover without electronics | ||||
| 51 | 343374280 | 5.87 | 7.10 | |
| Electronic switch z.stelwiel | ||||
| 52 | 343407200 | 26.95 | 32.61 | |
| Self-tap. fill. h. screw | ||||
| 53 | 141117060 | 1.68 | 2.03 | |
| Two-part pistol grip | ||||
| 54 | 343393020 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 55 | 343378650 | |||
| Cable clip | ||||
| 56 | 343362490 | 1.68 | 2.03 | |
| O-ring | ||||
| 57 | 143192430 | 1.68 | 2.03 | |
| Field | ||||
| 58 | 311009790 | 48.48 | 58.66 | |
| Self-tap. fill. h. screw | ||||
| 59 | 141116090 | 1.56 | 1.89 | |
| Motor housing | ||||
| 60 | 315012650 | 13.48 | 16.31 | |
| No longer available, no replacement | ||||
| 61 | 338122160 | |||
| Aanduidingsplaatje | ||||
| 62 | 338117280 | 1.56 | 1.89 | |
| Koolborstelset,230 V | ||||
| 63 | 316046950 | 12.23 | 14.80 | |
| Carbon brush holder module R+L | ||||
| 64 | 316028100 | 21.64 | 26.18 | |
| Condensator | ||||
| 65 | 343253780 | 4.51 | 5.46 | |
| Kabel m. CEE-stekker | ||||
| 66 | 344493180 | 21.64 | 26.18 | |
| Kabelbescherming | ||||
| 67 | 344101140 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 68 | 399999990 | |||
| Insert holder | ||||
| 69 | 344162720 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 70 | 399999990 | |||
| Waaier m. stofbescherming | ||||
| 71 | 316035730 | 5.87 | 7.10 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130970 | 11.74 | 14.21 | |
| Grease tube 50 gr. 1,8oz | ||||
| 885 | 344130930 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338504130 | |||
