Here you will find all available parts and drawings of the 'Metabo 0193330100-11 ( UK333 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

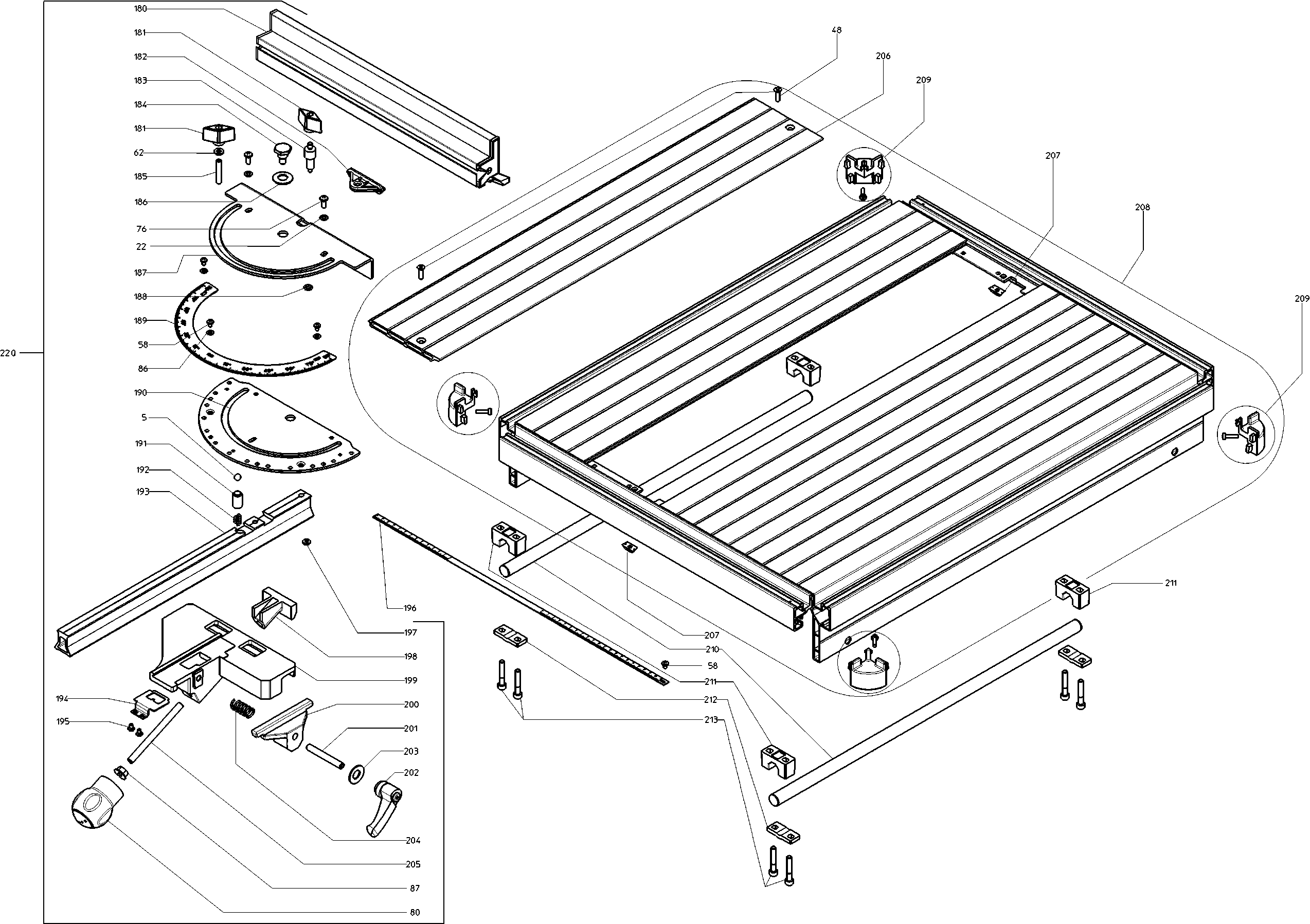

Technical drawing of model Metabo 0193330100-11 ( UK333 )

Spare parts list of model Metabo 0193330100-11 ( UK333 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cylinder head screw
1 6121000839 5.87 7.10
Counter-flange saw blade
2 1482221900 5.18 6.27
SAW BLADE FLANGE
3 1485221618 12.23 14.80
Safety ring
4 6401701620 2.28 2.76
STEEL BALL RD 7,938
5 7123148635 1.55 1.88
COUNTERSUNK SCREW W. INTERNAL
6 6132661454 1.55 1.88
Plate for riving knife
7 1482221595 1.67 2.02
Riving knife CS 50 EBG
8 1482221587 18.80 22.75
Wheel guard compl.
9 316052430 12.23 14.80
SCREW
10 1385701558 5.18 6.27
HOLDER V.SPOUWMES UK333
11 1380698273 11.74 14.21
Riving knife holder
12 1482701503 26.95 32.61
Hexagonal screw
13 6103001178 1.55 1.88
DISC SPRING
14 7053075104 1.55 1.88
MOUNTING PLATE
15 1382701247 7.22 8.74
Cover Plate
16 1382701280 11.74 14.21
V-GROOVE
17 7233680626 11.74 14.21
PULL BOLT
18 1385701302 18.80 22.75
Pan head screw m.flens
19 6143661561 1.55 1.88
No information available, not orderable
20 1380698320
Spindle block
21 1482681839 7.22 8.74
Washer
22 141150020 1.55 1.88
Place screw M.crosshead
23 6172015687 1.55 1.88
Pulling Spring
24 7051074232 1.67 2.02
RETAINING RING
25 141180060 1.55 1.88
Intermediate Axis
26 1385701205 32.27 39.05
Gear for wire guide RD 30,5 Z
27 7247701235 24.23 29.32
Flange nut
28 6209114230 1.55 1.88
Drive Belt
29 7231680580 18.80 22.75
Cover Plate
30 1382701263 3.02 3.65
E-MOTOR
31 1010701631 469.34 567.90
COVER CLAMP BOX UK333
32 1381707411 3.02 3.65
Carbon Brush Set
33 1010710819 37.65 45.56
SLEEVE
34 1485701229 4.51 5.46
BALL BEARING
35 7100074090 8.89 10.76
Saw blade axis
36 1385701213 26.95 32.61
No information available, not orderable
37 7100083463
Security ring for shaft
38 6400701600 1.67 2.02
Zeskante moer
39 141131010 1.55 1.88
WASHER
40 6305713714 1.55 1.88
Cilinderkopschroef
41 141113690 1.67 2.02
Bearing screw
42 1395200611 3.02 3.65
V-GROOVE DISC
43 1385701310 18.80 22.75
No information available, not orderable
44 7100083463
snap ring
45 141180090 1.67 2.02
BALL BEARING
46 7100136915 7.22 8.74
WASHER
47 1482680670 1.55 1.88
COUNTERSUNK SCREW W. INTERNAL
48 6131714953 1.55 1.88
Countersunk Screw
49 6132175169 1.55 1.88
Cylinder head screw
50 6121023081 1.55 1.88
Swivel segment HKC 55
51 1380221442 3.71 4.49
Zeskante moer
52 141130090 1.55 1.88
Eccentric disc
53 1485710066 3.02 3.65
SAW TABLE
54 1010700766 161.61 195.55
Insert Buffer
55 2391203906 1.55 1.88
ball socket
56 7121652050 24.23 29.32
BEARING BRACKET UK333
57 1380698245 60.59 73.31
Place screw M.crosshead
58 6143639612 1.55 1.88
SWIVEL PLATE UK333
59 1381706318 4.51 5.46
Insulation ring
60 1321006635 1.55 1.88
Hexagon safety nut
61 141130650 1.67 2.02
Washer
62 141150130 1.55 1.88
Hexagon-Socket Key
64 9102689833 4.51 5.46
Knurled Nut
65 6241125058 1.67 2.02
COVER FOR SAW HOUSE
66 1382701069 32.27 39.05
No information available, not orderable
67 1482701538
Compression Spring
68 7051207240 1.55 1.88
Slotted bolt with square insert
69 6110000594 1.55 1.88
No information available, not orderable
70 1382701085
Platbolkopbout
71 141124490 1.55 1.88
No information available, not orderable
72 2382701359
POP RIVET
73 6621010474 1.55 1.88
Closing Plate
74 1382710025 11.74 14.21
No information available, not orderable
75 7051710074
SCREW WITH THREAD A
76 6175174166 1.55 1.88
KNOB
77 7005658068 2.28 2.76
Clamping plate CS 50 EB
79 1482704480 24.23 29.32
PLASTIC HANDLE
80 1388698264 5.18 6.27
Tie rod DF 700
81 1385701124 26.95 32.61
Lever KA 65
82 1482701112 4.51 5.46
FITTING BOLT
83 1485707430 5.87 7.10
Spring washer
84 6720083831 1.55 1.88
ANGLE MEASURE
85 1142215647 4.51 5.46
Washer
86 141150010 1.55 1.88
Flange nut
87 6209110995 1.55 1.88
Retaining ring
88 141180030 1.55 1.88
GEAR UK333
89 1380698214 8.89 10.76
Gear shaft
90 1485701571 24.23 29.32
No information available, not orderable
91 1482701368
Hexagonal flat nut
92 6205029131 1.55 1.88
Taper Pin with Morse Taper
93 141124460 1.55 1.88
BOLT UK 333
95 1010723830 37.65 45.56
Cilinderkopschroef
98 141113840 1.67 2.02
Washer
99 141151940 1.55 1.88
Cap nut
100 6208073395 1.55 1.88
No information available, not orderable
101 7004076740
Handwheel
102 7003079524 16.25 19.66
Cylinder head screw with inner hexagon
103 6127059193 1.55 1.88
SLEEVE
104 1485701334 3.71 4.49
Bearing sheet KA-UG
105 1382701484 8.89 10.76
KOGELLAGER
106 143115740 4.51 5.46
Spring washer
107 6720008511 1.55 1.88
DRAW SPINDLE
108 1385701566 24.23 29.32
Countersunk screw m. lens head screw
109 6186602763 1.55 1.88
Extraction piece UK333
110 1381701324 7.22 8.74
ANGLE
111 1382701387 11.74 14.21
Place screw M.crosshead
114 6123002049 1.55 1.88
SPRING BAND
115 7052222014 2.28 2.76
Hexagonal flat nut
118 6205029131 1.55 1.88
Hexagon adjustment screw
120 6104220876 3.02 3.65
No information available, not orderable
121 1482701031
Elastic Pressure Piece
122 7055043684 7.22 8.74
SEAL UK333
123 1381708299 5.87 7.10
CABLE HOLDER UK290/333
124 1381706881 1.55 1.88
Pushrod
125 1394201630 7.22 8.74
No information available, not orderable
126 1382700976
SLEEVE
127 1485700885 2.28 2.76
RUBBER FOOT 57,3X13,4X14 BLACK
128 7057706400 3.71 4.49
Flat head bolt
129 6110000659 1.55 1.88
Slotted bolt with square insert
130 6110000608 1.55 1.88
Back wall TURBO II
131 1382700925 87.60 106.00
Bolt
132 6632123360 2.28 2.76
No longer available, no replacement
133 6110000667
SLEEVE
134 1485700850 3.71 4.49
SLEEVE
135 1485700877 4.51 5.46
STARLOCK Z.COVER
136 7016056183 1.55 1.88
Leg CS 50 EBG
137 1383700848 32.27 39.05
Eye screw
138 6141701671 2.28 2.76
Flat head bolt
139 6110015990 1.55 1.88
Rotary knob D34 M6/8T blue
140 1388701680 8.89 10.76
SAFETY BRACKET KGT 501
141 1382680185 2.28 2.76
TRAVERSE
142 1382687112 18.80 22.75
Flat head bolt
143 6110017942 1.55 1.88
No information available, not orderable
144 1382700895
SUPPORT PLATE
145 1382710050 32.27 39.05
KSK switch K570 UK333
146 8133701649 100.74 121.90
End Spring Piece for Damping
147 1381216175 1.67 2.02
Venting end piece
148 1381216167 1.67 2.02
Fixing clamp
149 8242051328 2.28 2.76
Piston rod
151 1485701911 8.89 10.76
Piston shock absorber
152 1381216183 1.67 2.02
Pipe CS 50 EBG
153 1381707489 4.51 5.46
TENSION SPRING RDI 22X101X1,5
154 7051221944 3.71 4.49
Venting end piece
155 1381216159 1.67 2.02
TRANSMISSION COMPLETE UK 333
157 1010721004 296.22 358.43
No longer available, no replacement
160 1383700821
FOOTGROUP ADJUSTABLE
161 2010200787 16.25 19.66
SLAT STOP BLACK
162 1391059264 1.55 1.88
Leg CS 50 EBG
163 1383700830 32.27 39.05
GUIDANCE PROFILE
180 1010720490 21.64 26.18
KNOB
181 7005658068 2.28 2.76
CLAMPING PIECE UK333
182 1381698285 1.67 2.02
Eccentric shaft
183 1485701997 18.80 22.75
FITTING BOLT
184 1485706620 5.87 7.10
Taper Pin with Morse Taper
185 6161183502 1.55 1.88
DISC SPRING
186 7053063343 1.55 1.88
ANGLE PLATE
187 1382701930 48.48 58.66
STARLOCK
188 7016122305 1.55 1.88
ANGLE MEASURE
189 1142215949 11.74 14.21
Adjustment plate right angle guide
190 1482215935 16.25 19.66
LOCKING PIN RIGHT ANGLE GUIDE
191 1485215979 3.71 4.49
PRESSURE SPRING ANGLE GUIDE
192 7051148694 1.55 1.88
GUIDE
193 1383701968 32.27 39.05
Pointer right angle guide
194 1482216010 1.67 2.02
Countersunk screw
195 6172028215 1.55 1.88
DIMENSION INDICATION
196 1142708309 5.87 7.10
No longer available, no replacement
197 2391202772
Adjustment part
198 1380215981 7.22 8.74
CLAMP BODY UK333
199 1380701983 60.59 73.31
Clamping Hook
200 1380216031 8.89 10.76
Taper Pin with Morse Taper
201 6161029120 1.67 2.02
Clamping lever with internal thread
202 7006028653 7.22 8.74
Washer
203 141151340 1.55 1.88
Compression Spring
204 7051207240 1.55 1.88
PIN TAP
205 6163198736 3.71 4.49
Table insert profile
206 1383696484 67.33 81.47
CAGE NUT
207 6264714948 1.67 2.02
No information available, not orderable
208 1010707508
No information available, not orderable
209 1010710835
GUIDE ROD
210 1385701663 37.65 45.56
PRISM GUIDE UK333
211 1380698222 5.87 7.10
No information available, not orderable
212 1482653304
Cilinderkopschroef
213 141113910 1.67 2.02
Sleeve 16X1,8X32 UK333
214 1482711290 8.89 10.76
No information available, not orderable
215 1482711282
SHEET METAL SCREW WITH HEX SOCKET
216 6123612815 1.55 1.88
CABLE HOLDER 19X19
217 8242711301 1.67 2.02
Chip guide
218 1482712750 11.74 14.21
DEFLECTOR PLATE
219 1482712769 5.87 7.10
No information available, not orderable
220 0910063057
