Here you will find all available parts and drawings of the 'Metabo 00713000 ( UHEV2860-2QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

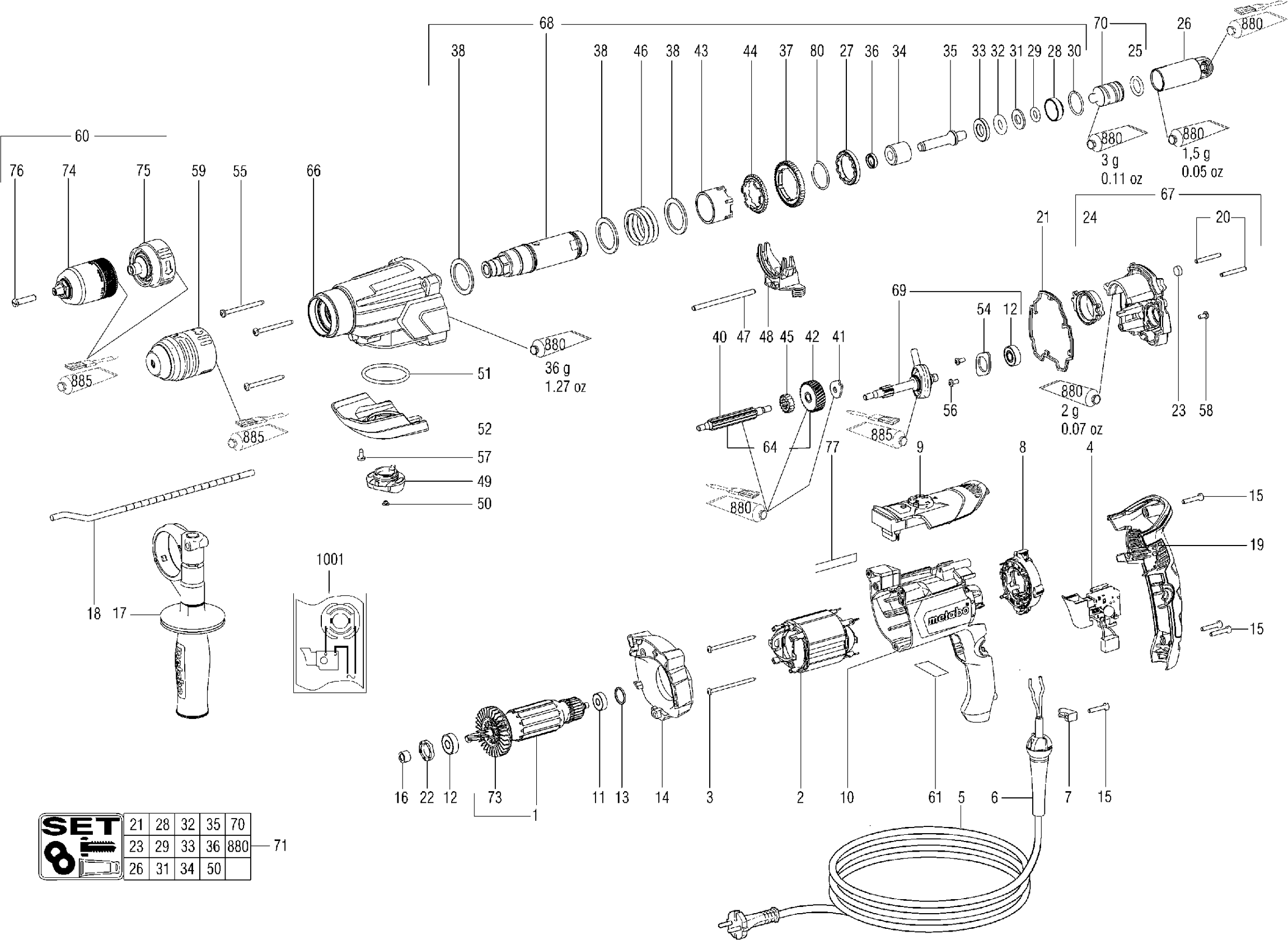

Technical drawing of model Metabo 00713000 ( UHEV2860-2QUICK )

Spare parts list of model Metabo 00713000 ( UHEV2860-2QUICK )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Anker compl.,230 V
1 310011650 67.33 81.47
Field
2 311011630 24.23 29.32
Self-tap. fill. h. screw
3 141118260 1.55 1.88
Potentioschakelaar
4 343410950 12.23 14.80
Cable with CEE plug
5 344486730 18.80 22.75
Kabeldoorvoer
6 343394300 1.67 2.02
Cable clip
7 343362490 1.67 2.02
Carbon brush holder module, 230V
8 316051960 12.23 14.80
Elektro.unit,230V 50/60Hz
9 343085150 32.27 39.05
Motor housing
10 315013700 13.48 16.31
Groefkogellager,6x19x6
11 143115690 2.28 2.76
Ball bearing 8x22x 7
12 143114880 3.02 3.65
O-ring
13 143192430 1.67 2.02
Tussenflens
14 343438040 3.71 4.49
Self-tap. fill. h. screw
15 141117060 1.67 2.02
Afdichtring
16 343376040 1.67 2.02
Handgreep compl.
17 314001460 12.23 14.80
Dieptegeleider
18 341511630 4.51 5.46
Handgreepdeksel
19 343438030 7.22 8.74
Cilinderstift
20 341520230 1.55 1.88
Vormpakking
21 344101780 1.67 2.02
Rubber buffer
22 344095920 1.55 1.88
Sealing felt
23 344070670 1.55 1.88
Bearing ring
24 341006300 3.71 4.49
O-ring
25 143195350 1.55 1.88
Bekrachtigingsbus compl.
26 341211330 18.80 22.75
Nokkenschijf
27 341071750 1.67 2.02
Vangerhuls
28 341059760 3.71 4.49
O-ring
29 143195210 1.55 1.88
Circlip
30 141156560 1.55 1.88
Washer
31 339007190 1.55 1.88
O-ring
32 143195150 1.67 2.02
Support ring
33 341013470 3.71 4.49
Bushing
34 341005950 5.18 6.27
piston
35 341212200 10.38 12.56
Corrugated sealing ring
36 143195380 1.55 1.88
Intermediate gear
37 340004450 3.02 3.65
Washer
38 339007150 1.67 2.02
Tandwielas
40 340004490 13.48 16.31
Aanloopplaat
41 339134350 1.55 1.88
Stirnrad schraegverzahnt
42 340013090 4.51 5.46
Koppelingsnaaf
43 341071830 3.71 4.49
Claw wheel
44 340004530 2.28 2.76
Koppelingshuls
45 340004460 1.55 1.88
Pressure spring
46 342004060 1.67 2.02
Schakelstang
47 341540220 1.55 1.88
Schakel-element compl.
48 316062550 3.02 3.65
Schakelknop compl.
49 316062450 3.02 3.65
Seal
50 343376750 1.67 2.02
O-ring
51 143195870 1.55 1.88
Housing cover, UHE
52 343438240 3.71 4.49
Lagerdeksel
54 339137180 1.55 1.88
Self-tap. fill. h. screw
55 141118840 1.55 1.88
Bolcilinderkop draadvorm
56 141119570 1.55 1.88
Self-tap. fill. h. screw
57 141116130 1.55 1.88
Lensschroef
58 141123980 1.55 1.88
Keyless Chuck
59 316071590 73.31 88.71
Quick-Release Drill Chuck with Adapter
60 316047500 87.60 106.00
Typeplaatje
61 338066900 1.55 1.88
Intermediate shaft compl.
64 316065240 32.27 39.05
Gear-box compl.
65 316063970 213.88 258.79
Tandwielhuis compl.
66 316063980 43.15 52.21
Tandwielflens compl.
67 316063990 26.95 32.61
Drill driving sleeve compl.
68 316064000 128.32 155.27
Complete drill driving sleeve
68 316069070 113.82 137.72
Complete rocker drive
69 316064010 53.86 65.17
Plunjer compl.
70 316065360 13.48 16.31
SDS maintenance set
71 316064020 134.27 162.47
Fan
73 330001830 10.38 12.56
Quick release drill chuck,1.5-13
74 301003140 43.15 52.21
Quick Change Adapter
75 316050630 43.15 52.21
Cilinderkopschroef
76 341703360 5.18 6.27
No information available, not orderable
77 399999990
Circlip
80 141156360 1.55 1.88
Tube of grease 50 gr. SF 126
880 344130800 18.80 22.75
Tube of grease, 50g Klueber Microlube GL 261
885 344131210 24.23 29.32
No information available, not orderable
1001 338506130
