Here you will find all available parts and drawings of the 'Metabo 00961001 (UHE28MULTI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

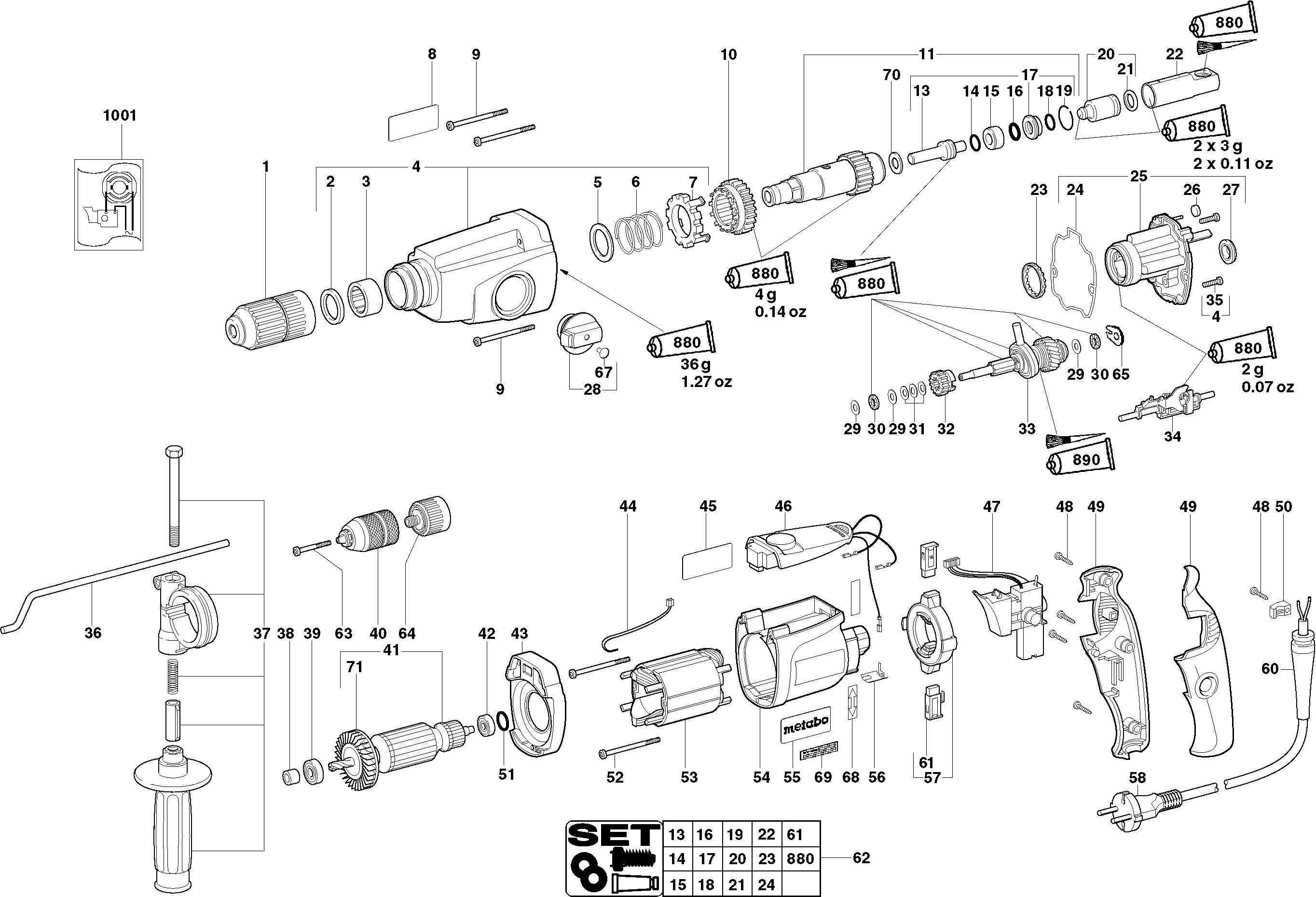

Technical drawing of model Metabo 00961001 (UHE28MULTI)
Spare parts list of model Metabo 00961001 (UHE28MULTI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 316029590 | |||
| No longer available, no replacement | ||||
| 2 | 143194910 | |||
| Needle sleeve | ||||
| 3 | 143113830 | 21.22 | 25.68 | |
| No longer available, no replacement | ||||
| 4 | 316030530 | |||
| Support Disk | ||||
| 5 | 141153750 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 6 | 342002690 | |||
| Retaining ring | ||||
| 7 | 343374440 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 8 | 338114480 | |||
| Self-tap. fill. h. screw | ||||
| 9 | 141122490 | 1.79 | 2.17 | |
| No longer available, no replacement | ||||
| 10 | 316029510 | |||
| No information available, not orderable | ||||
| 11 | 316030560 | |||
| No information available, not orderable | ||||
| 13 | 316030580 | |||
| O-ring | ||||
| 14 | 143192400 | 1.79 | 2.17 | |
| Supporting ring | ||||
| 15 | 341012550 | 5.49 | 6.64 | |
| No longer available, no replacement | ||||
| 16 | 143193910 | |||
| No information available, not orderable | ||||
| 17 | 316030570 | |||
| O-ring | ||||
| 18 | 143193920 | 6.05 | 7.32 | |
| Borgveer-ring | ||||
| 19 | 141181840 | 1.67 | 2.02 | |
| Complete Plunger | ||||
| 20 | 316017660 | 35.72 | 43.22 | |
| Profile-plunger-ring | ||||
| 21 | 344093140 | 4.78 | 5.78 | |
| No longer available, no replacement | ||||
| 22 | 341055770 | |||
| Kogelhouder | ||||
| 23 | 320050480 | 3.20 | 3.87 | |
| Profile seal | ||||
| 24 | 344095570 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 25 | 316030540 | |||
| Sealing felt | ||||
| 26 | 344070670 | 1.67 | 2.02 | |
| Rubber buffer | ||||
| 27 | 344095920 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 28 | 316032620 | |||
| Washer | ||||
| 29 | 339129610 | 1.67 | 2.02 | |
| Axiaal-naaldlager | ||||
| 30 | 143114280 | 6.05 | 7.32 | |
| Schotelveer | ||||
| 31 | 141154920 | 1.79 | 2.17 | |
| Coupling sleeve | ||||
| 32 | 340003230 | 15.31 | 18.53 | |
| No longer available, no replacement | ||||
| 33 | 316030480 | |||
| No longer available, no replacement | ||||
| 34 | 316029560 | |||
| Ball cylinder head Thread Form | ||||
| 35 | 141119440 | 1.67 | 2.02 | |
| Dieptegeleider | ||||
| 36 | 341511630 | 4.78 | 5.78 | |
| Support handle compl. | ||||
| 37 | 314000770 | 27.16 | 32.86 | |
| Afdichtring | ||||
| 38 | 343376040 | 1.79 | 2.17 | |
| Ball bearing 8x22x 7 | ||||
| 39 | 143114880 | 3.20 | 3.87 | |
| Quick release drill chuck,1.5-13 | ||||
| 40 | 301003140 | 46.99 | 56.86 | |
| Anker 230 V | ||||
| 41 | 310007880 | 83.19 | 100.66 | |
| Ball bearing 6x19x 6 | ||||
| 42 | 143114750 | 3.20 | 3.87 | |
| Tussenflens | ||||
| 43 | 343374270 | 6.05 | 7.32 | |
| No longer available, no replacement | ||||
| 44 | 343078020 | |||
| No information available, not orderable | ||||
| 45 | 338037710 | |||
| No information available, not orderable | ||||
| 46 | 343078090 | |||
| Potentiometer switch | ||||
| 47 | 343406880 | 27.16 | 32.86 | |
| Self-tap. fill. h. screw | ||||
| 48 | 141117060 | 1.79 | 2.17 | |
| Two-part pistol grip | ||||
| 49 | 343393020 | 9.36 | 11.33 | |
| Cable clip | ||||
| 50 | 343362490 | 1.79 | 2.17 | |
| O-ring | ||||
| 51 | 143192430 | 1.79 | 2.17 | |
| Self-tap. fill. h. screw | ||||
| 52 | 141118260 | 1.67 | 2.02 | |
| Field | ||||
| 53 | 311009810 | 21.22 | 25.68 | |
| Motor housing | ||||
| 54 | 315012650 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 55 | 338114490 | |||
| Carbon Brush Contact | ||||
| 56 | 339129390 | 3.20 | 3.87 | |
| Carbon Brush Holder Module R+L | ||||
| 57 | 316028790 | 29.97 | 36.26 | |
| Cable with CEE plug | ||||
| 58 | 344486730 | 21.22 | 25.68 | |
| Kabelbescherming | ||||
| 60 | 344101140 | 2.43 | 2.94 | |
| Koolborstel set 230 V | ||||
| 61 | 316034960 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 62 | 316032040 | |||
| Cilinderkopschroef | ||||
| 63 | 341700990 | 3.20 | 3.87 | |
| No longer available, no replacement | ||||
| 64 | 316032390 | |||
| Aanloopplaat | ||||
| 65 | 339130980 | 1.67 | 2.02 | |
| Seal | ||||
| 67 | 343376750 | 1.79 | 2.17 | |
| Aanduidingsplaatje | ||||
| 68 | 338115410 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 69 | 399999990 | |||
| Ring | ||||
| 70 | 341012630 | 1.79 | 2.17 | |
| Waaier m. stofbescherming | ||||
| 71 | 316035740 | 12.19 | 14.75 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 21.22 | 25.68 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 890 | 344130560 | 52.36 | 63.36 | |
