Here you will find all available parts and drawings of the 'Metabo 00961000 ( UHE28MULTI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

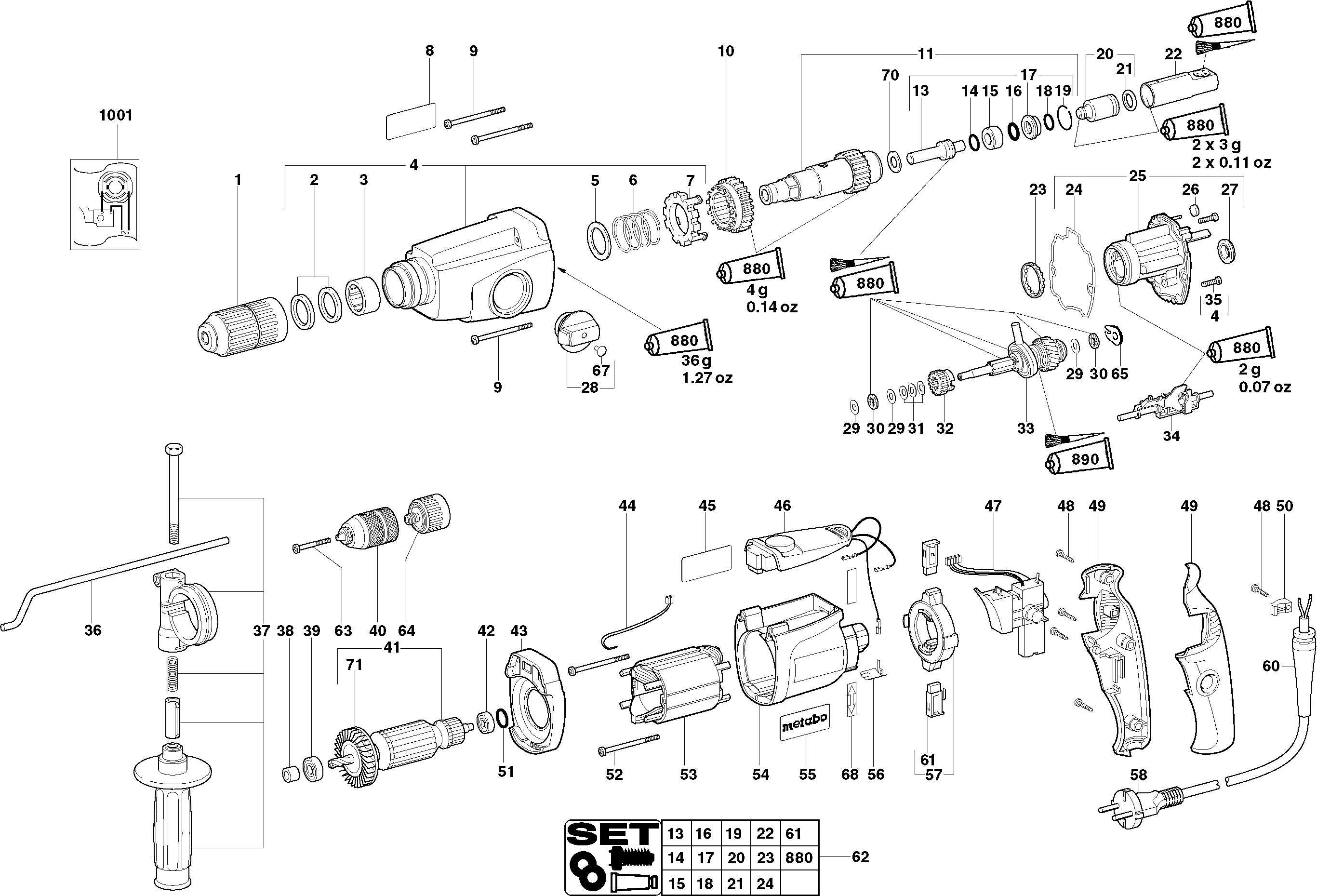

Technical drawing of model Metabo 00961000 ( UHE28MULTI )

Spare parts list of model Metabo 00961000 ( UHE28MULTI )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Adaptor SDS -PLUS
1 316029590 74.13 89.70
Afdichtring
2 143194060 2.28 2.76
Needle sleeve
3 143113830 18.80 22.75
No longer available, no replacement
4 316030530
Support Disk
5 141153750 1.67 2.02
Pressure spring
6 342002690 4.51 5.46
Retaining ring
7 343374440 1.55 1.88
No longer available, no replacement
8 338114480
Self-tap. fill. h. screw
9 141122490 1.67 2.02
No longer available, no replacement
10 316029510
No information available, not orderable
11 316030560
No information available, not orderable
13 316030580
O-ring
14 143192400 1.67 2.02
Supporting ring
15 341012550 3.02 3.65
O-ring
16 143193910 1.67 2.02
No information available, not orderable
17 316030570
O-ring
18 143193920 5.87 7.10
Borgveer-ring
19 141181840 1.55 1.88
Complete Plunger
20 316017660 32.27 39.05
Profile-plunger-ring
21 344093140 4.51 5.46
No longer available, no replacement
22 341055770
Kogelhouder
23 320050480 3.02 3.65
Profile seal
24 344095570 1.67 2.02
Gear flange cpl.
25 316030540 48.48 58.66
Sealing felt
26 344070670 1.55 1.88
Rubber buffer
27 344095920 1.55 1.88
No longer available, no replacement
28 316032620
Washer
29 339129610 1.55 1.88
Axiaal-naaldlager
30 143114280 5.87 7.10
Schotelveer
31 141154920 1.67 2.02
Coupling sleeve
32 340003230 13.48 16.31
No longer available, no replacement
33 316030480
No longer available, no replacement
34 316029560
Ball cylinder head Thread Form
35 141119440 1.55 1.88
Dieptegeleider
36 341511630 4.51 5.46
Support handle compl.
37 314000770 24.23 29.32
Afdichtring
38 343376040 1.67 2.02
Ball bearing 8x22x 7
39 143114880 3.02 3.65
Quick release drill chuck,1.5-13
40 301003140 43.15 52.21
Anker 230 V
41 310007880 80.81 97.78
Ball bearing 6x19x 6
42 143114750 3.02 3.65
Tussenflens
43 343374270 5.87 7.10
No longer available, no replacement
44 343078020
No information available, not orderable
45 338037710
No information available, not orderable
46 343078090
No information available, not orderable
47 343407000
Self-tap. fill. h. screw
48 141117060 1.67 2.02
Motorhuis + Pistolgreep
49 316041050 26.95 32.61
Cable clip
50 343362490 1.67 2.02
O-ring
51 143192430 1.67 2.02
Self-tap. fill. h. screw
52 141118260 1.55 1.88
Field
53 311009810 18.80 22.75
Motor housing
54 315012650 13.48 16.31
Indication label
55 338114490 1.67 2.02
Carbon Brush Contact
56 339129390 3.02 3.65
Carbon Brush Holder Module R+L
57 316028790 26.95 32.61
Cable with CEE plug
58 344486730 18.80 22.75
Kabelbescherming
60 344101140 2.28 2.76
Koolborstel set 230 V
61 316034960 13.48 16.31
No information available, not orderable
62 316032040
Cilinderkopschroef
63 341700990 3.02 3.65
No longer available, no replacement
64 316032390
Aanloopplaat
65 339130980 1.55 1.88
Seal
67 343376750 1.67 2.02
Aanduidingsplaatje
68 338115410 1.55 1.88
Ring
70 341012630 1.67 2.02
Waaier m. stofbescherming
71 316035740 11.74 14.21
Tube of grease 50 gr. SF 126
880 344130800 18.80 22.75
Grease Tube 50 gr. SF 011 1,8oz
890 344130560 32.27 39.05
